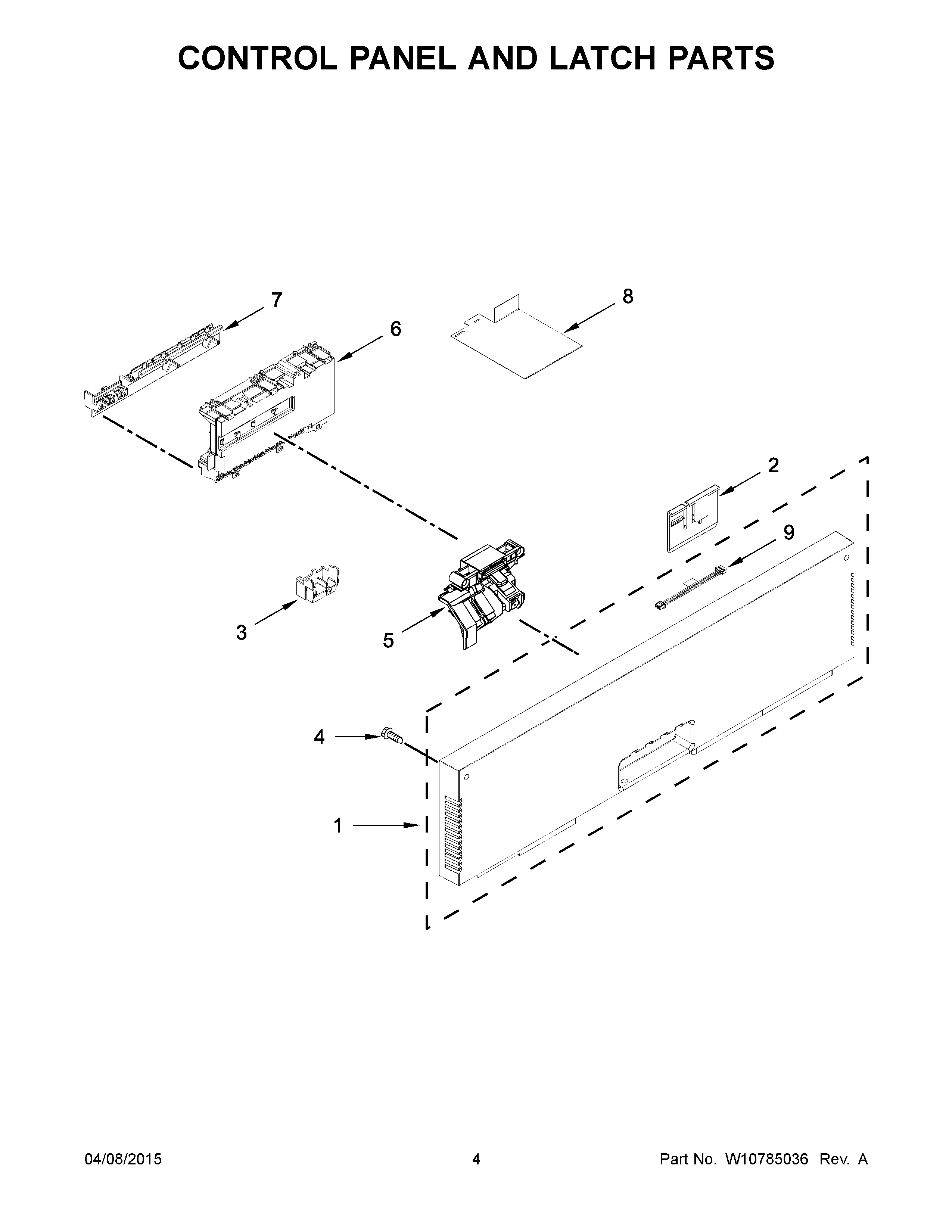

KDTM504EPA0 03 – CONTROL PANEL AND LATCH PARTS

KDTM504EPA0 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDTM504EPA0 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W10742456 Whirlpool Control Panel
2W11256107 Whirlpool Dishwasher Clip
3W10783730 Whirlpool Dishwasher Connector
4WPW10348409 Whirlpool Screw
5WPW10653840 Whirlpool Door Latch
6W10854230 Whirlpool Dishwasher Electronic Control Board
7WPW10194937 Whirlpool Dishwasher Control Bracket
8W10355484 Whirlpool Cover
9W10528492 Whirlpool Dishwasher Wire
