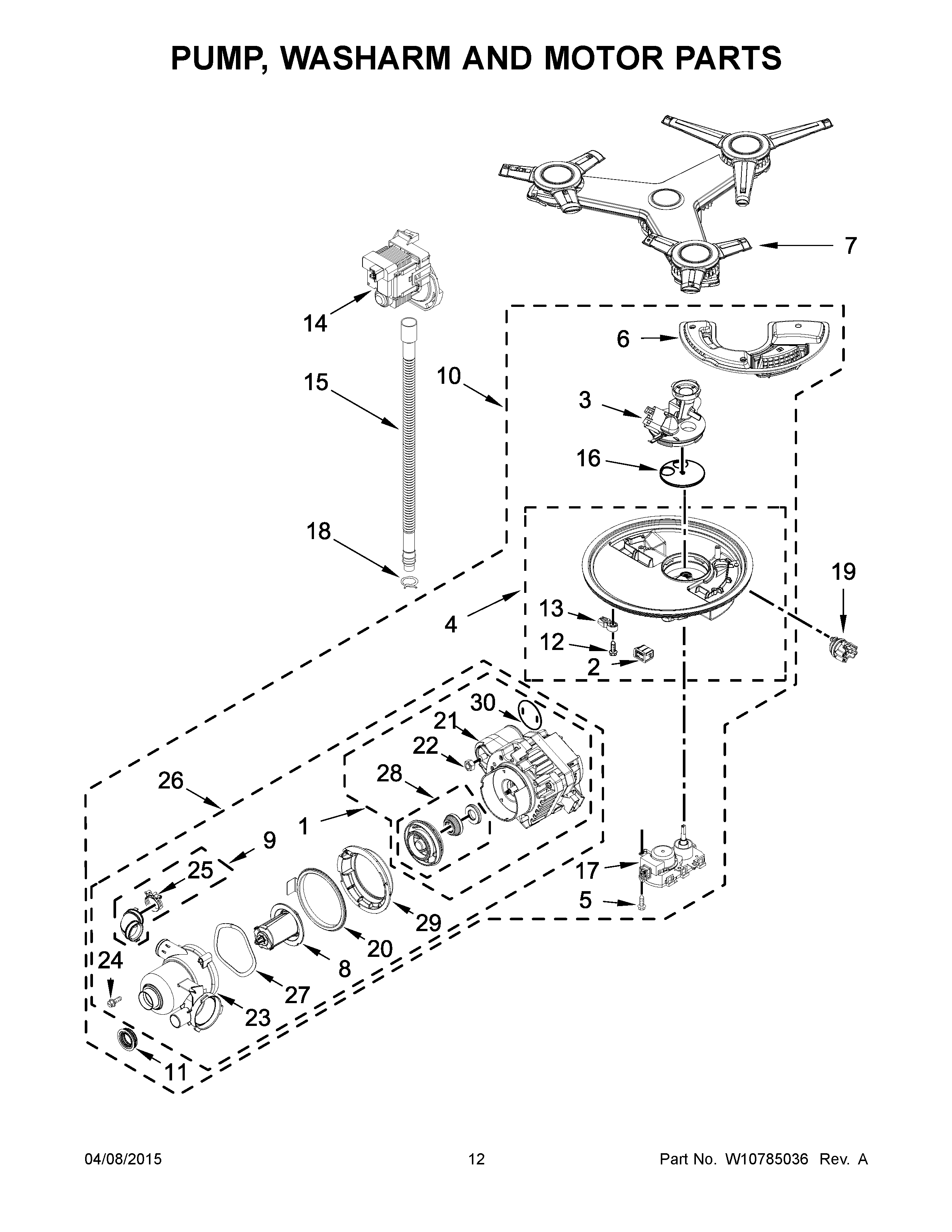

KDTM504EPA0 07 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	W10907617 Whirlpool Pump Assembly
2	W10647236 Whirlpool Support
3	W11170316 Whirlpool Cover
4	W10832796 Whirlpool Sump
5	WP9741232 Whirlpool Dishwasher Screw
6	W10832799 Whirlpool Screen
7	W10860176 Whirlpool Spray Arm
8	FILTR-PUMP
9	CABINET (NOT A SERVICEABLE PART)
10	W10861526 Whirlpool Pump and Motor Assembly
11	WPW10538166 Whirlpool Grommet Pump
12	WPW10348407 Whirlpool Dishwasher Screw
13	WPW10372113 Whirlpool Dishwasher Sump Tab
14	PUMP-DRAIN
15	8269144A Whirlpool Dishwasher Drain Hose
16	WPW10476221 Whirlpool Dishwasher Diffuser
17	W10843811 Whirlpool Dishwasher Motor
18	WP8269146 Whirlpool Dishwasher Clamp
19	WPW10705575 Whirlpool Dishwasher Sensor
20	W10380239 Whirlpool Ring
21	W11662065 Whirlpool Dishwasher Capacitor
22	8533949 Whirlpool Dishwasher Nut
23	W10708008 Whirlpool Pump Cover
24	W10467002 Whirlpool Screw
25	W10789434 Whirlpool Dishwasher Hose Clamp
26	W10902589 Whirlpool Dishwasher Pump & Motor Assembly
27	W10772270 Whirlpool Spring Assembly
28	W10783130 Whirlpool Impeller
29	W10723279 Whirlpool Volute
30	SHIELD, CAPACITOR
