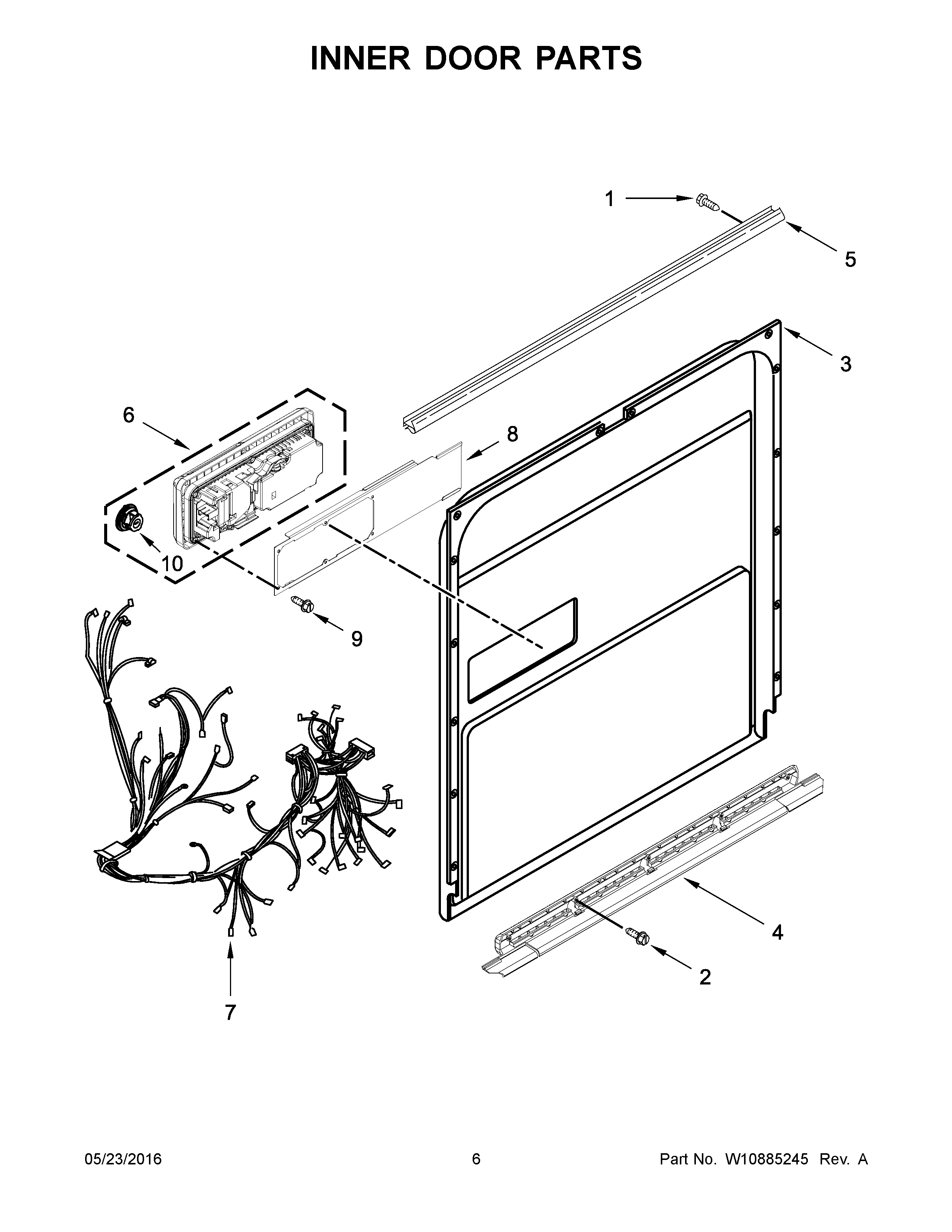

KDTM504EPA1 04 – INNER DOOR PARTS

KDTM504EPA1 04 – INNER DOOR PARTS

Written by

in

KDTM504EPA1 04 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2W11631670 Whirlpool Screw
3WPW10480716 Whirlpool Dishwasher Inner Door Assembly
4WPW10497235 Whirlpool Dishwasher Lower Door Seal
5WPW10195007 Whirlpool Dishwasher Seal
6DISPENSER (DISHWASHER)
7AW10808286 Whirlpool Wire Assembly
7W10718984 Whirlpool Wire Harness
8WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
9WPW10177098 Whirlpool Dishwasher Screw
10WPW10524919 Whirlpool Dishwasher Dispenser Cap
