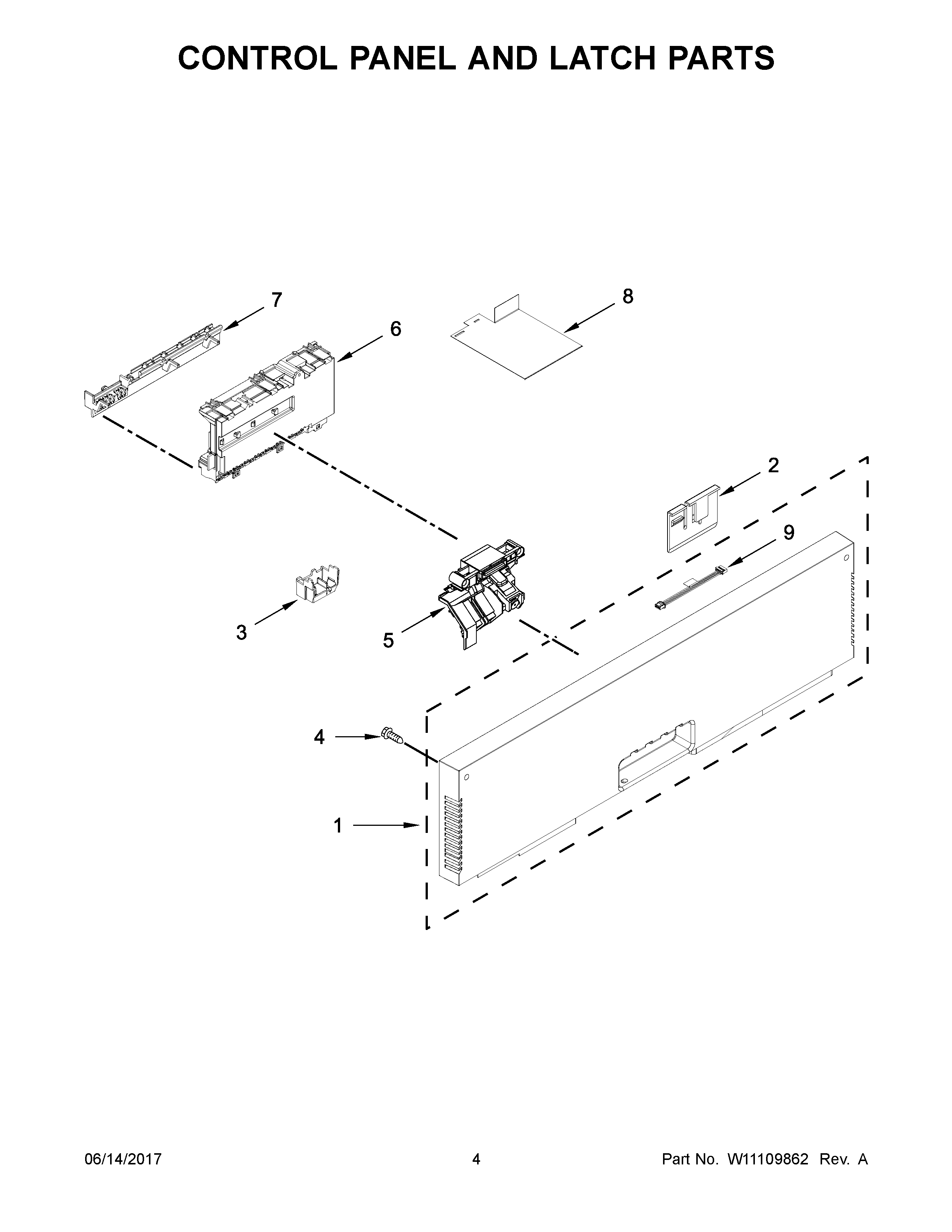

KDTM504EPA2 03 – CONTROL PANEL AND LATCH PARTS

KDTM504EPA2 03 – CONTROL PANEL AND LATCH PARTS

Written by

in

KDTM504EPA2 03 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1W11113883 Whirlpool Dishwasher Console + Core
2W11256107 Whirlpool Dishwasher Clip
4WPW10348409 Whirlpool Screw
5WPW10653840 Whirlpool Door Latch
6W11341629 Whirlpool Electronic Control Board
7W11305293 Whirlpool Dishwasher Electronic Control Board
8SHIELD, CONTROL
9W10792164 Whirlpool Dishwasher Wire
