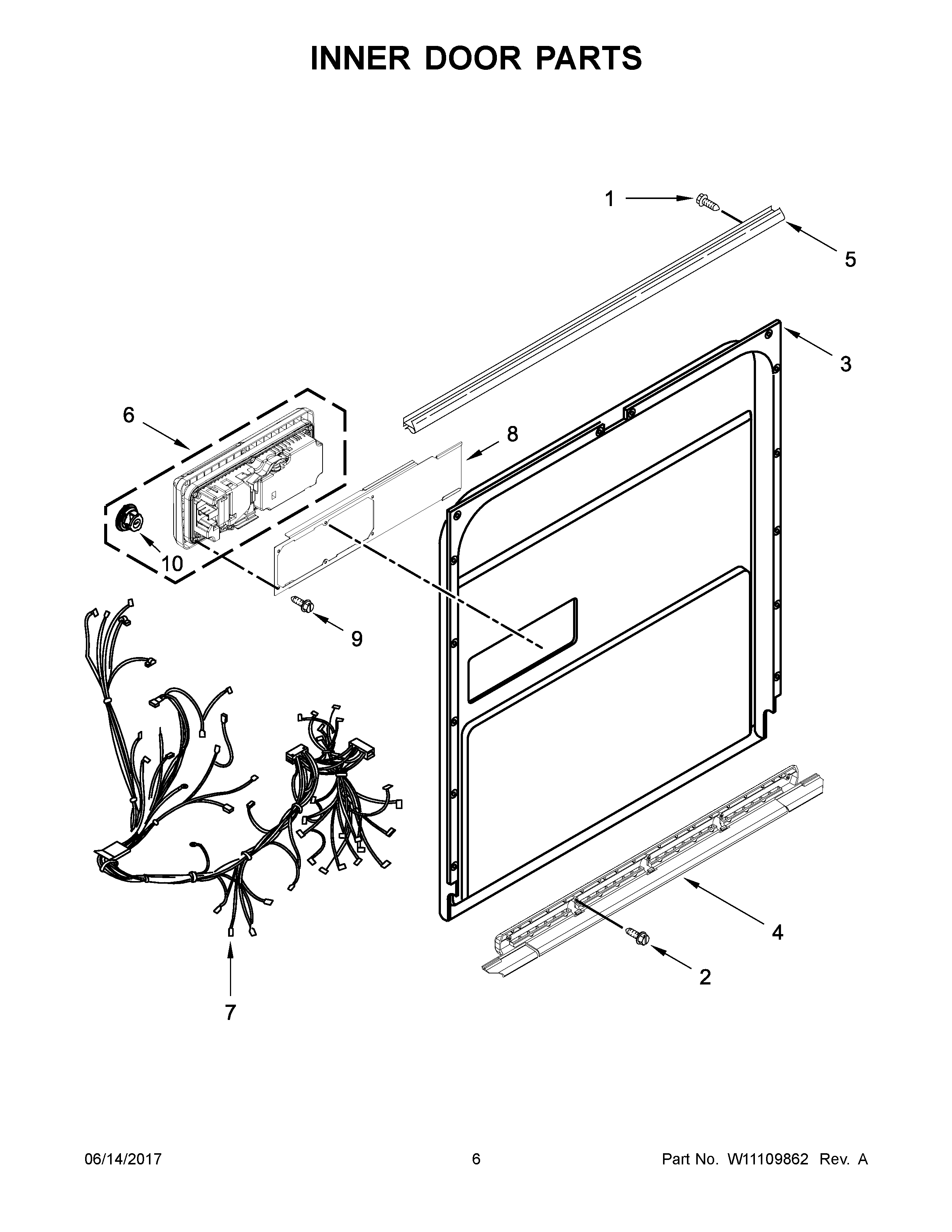

KDTM504EPA2 04 – INNER DOOR PARTS
Written by
in
KDTM504EPA2 04 – INNER DOOR PARTS
Products
Position
Product
1
WPW10348409 Whirlpool Screw
2
W11631670 Whirlpool Screw
3
WPW10480716 Whirlpool Dishwasher Inner Door Assembly
4
WPW10497235 Whirlpool Dishwasher Lower Door Seal
5
WPW10195007 Whirlpool Dishwasher Seal
6
DISPENSER (DISHWASHER)
7
W10834771 Whirlpool Wire Harness
7A
W10913102 Whirlpool Wire
8
WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
9
WPW10177098 Whirlpool Dishwasher Screw
10
WPW10524919 Whirlpool Dishwasher Dispenser Cap
←
