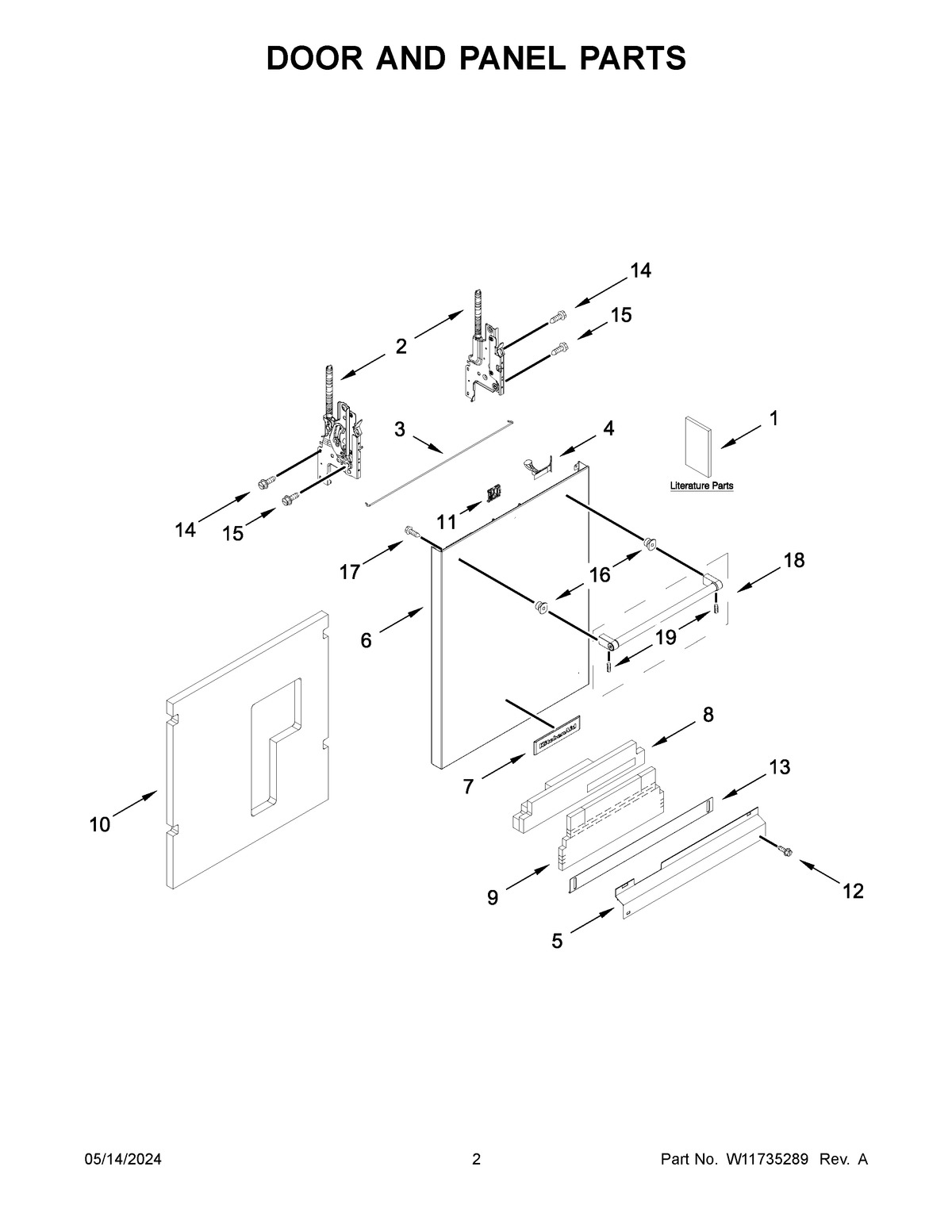

KDTM604KPS3 02 – DOOR AND PANEL PARTS

KDTM604KPS3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1OWNERS MANUAL
1AENERGY GUIDE
1BTECH SHEET
2HINGE-DOOR
2AW11712996 Whirlpool Door Hinge
3W11377160 Whirlpool Brace Assembly
4W11102920 Whirlpool Indicator Light
5W11545318 Whirlpool Toekick Plate
6AW11416374 Whirlpool Panel
6W11702836 Whirlpool Panel
7W10909682 Whirlpool Nameplate Tag
8W11573700 Whirlpool Shield
9W11573704 Whirlpool Dishwasher Shield
10W10919861 Whirlpool Insulation Pad
11W10692757 Whirlpool Dishwasher Nut Assembly
12W11551775 Whirlpool Screw
13W11579528 Whirlpool Toe Panel
14WPW10309090 Whirlpool Dishwasher Screw
15W11676450 Whirlpool Screw
16W11157086 Whirlpool Dishwasher Door Handle Stud
17W10826179 Whirlpool Dishwasher Screw
18W10708004 Whirlpool Dishwasher Handle
19W10917698 Whirlpool Dishwasher Screw
