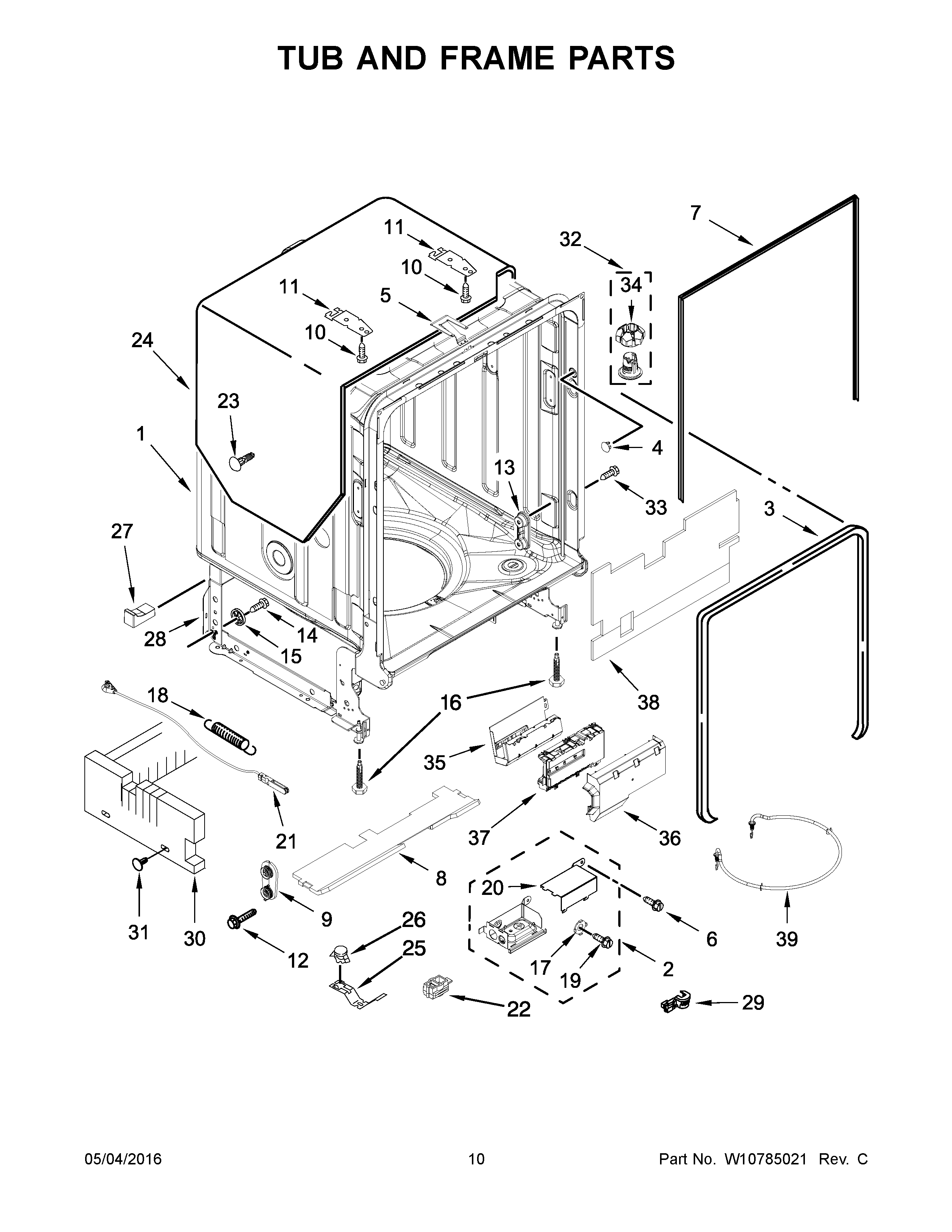

KDTM704ESS0 06 – TUB AND FRAME PARTS

Products

Position	Product
1	WPW10681514 Whirlpool Tub Assembly
2	W11167239 Whirlpool Dishwasher Cover Assembly
3	W11177741 Whirlpool Dishwasher Door Gasket
4	W11238348 Whirlpool Cap
5	WPW10544004 Whirlpool Dishwasher Strike
6	WP489069 Whirlpool Compactor Screw
7	SEAL
8	W11747584 Whirlpool Insulation Pad
9	WPW10084086 Whirlpool Dishwasher Mount
10	WP308685 Whirlpool Microwave Screw
11	WP8269145 Whirlpool Dishwasher Mounting Bracket
12	WP3400074 Whirlpool Dishwasher Screw
13	W10622469 Whirlpool Dishwasher Mount
14	WPW10348411 Whirlpool Roller Wheel Screw
15	WPW10190778 Whirlpool Dishwasher Wheel
16	8193716 Whirlpool Leveling Leg
17	WP3378128 Whirlpool Dishwasher Washer
18	SPRING
19	WP3400014 Whirlpool Dishwasher Screw
20	W10847918 Whirlpool Dishwasher Cover
21	8194001 Whirlpool Dishwasher Door Balance Link Kit
22	W10292870 Whirlpool Dishwasher Housing
23	WP304666 Whirlpool Dishwasher Retainer
24	W10877094 Whirlpool Shield
25	W10300703 Whirlpool Dishwasher Bracket Stat
26	WPW10195091 Whirlpool Thermostat
27A	W10195631 Whirlpool Dishwasher Tank Spacer
27	W10195630 Whirlpool Dishwasher Spacer
28	WPW10681564 Whirlpool Dishwasher Support
29	STRAIN RELIEF
30	W10750120 Whirlpool Shield
31	WPW10486051 Whirlpool Dishwasher Retainer
32	W10791989 Whirlpool Light
33	WPW10309090 Whirlpool Dishwasher Screw
34	W10796085 Whirlpool Retainer Clip
35	W10642756 Whirlpool Control Bracket
36	W10740187 Whirlpool Cover
37	W10854228 Whirlpool Dishwasher Electronic Control Board
38	W10380173 Whirlpool Insulation
39	W10703867 Whirlpool Dishwasher Heating Element
