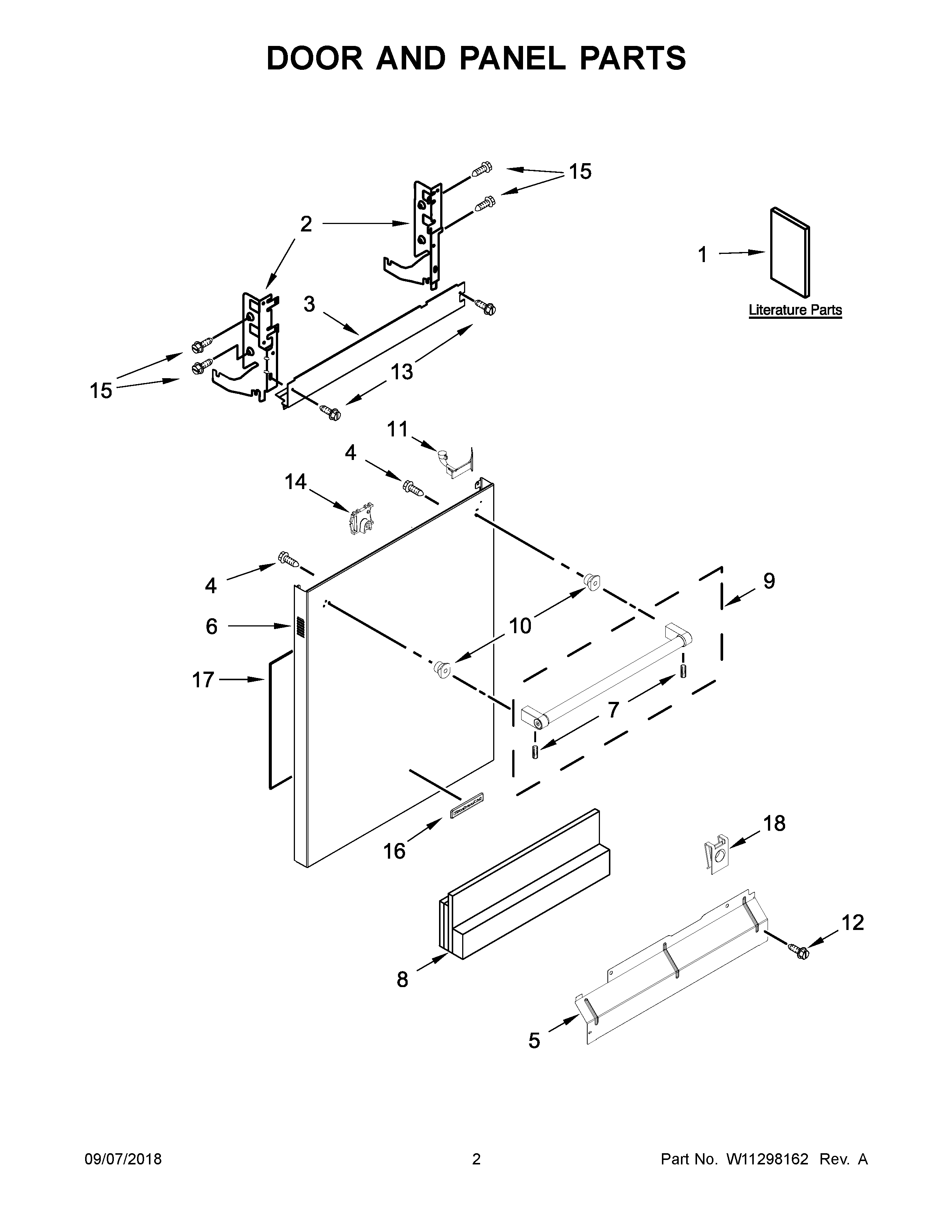

KDTM704ESS3 02 – DOOR AND PANEL PARTS

KDTM704ESS3 02 – DOOR AND PANEL PARTS

Written by

in

KDTM704ESS3 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1AENERGY GUIDE
1DTECH SHEET, FRENCH
1CTECH SHEET, ENGLISH
1BUSE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10213953 Whirlpool Screw
5W10909064 Whirlpool Dishwasher Black Access Panel
6W10900374 Whirlpool Dishwasher Door Panel, Stainless
6AW10900373 Whirlpool Panel
7W10917698 Whirlpool Dishwasher Screw
8W11223838 Whirlpool Shield
9W10708004 Whirlpool Dishwasher Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11W10901145 Whirlpool Dishwasher Indicator Light
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14W10692757 Whirlpool Dishwasher Nut Assembly
15WP3400071 Whirlpool Screw
16W10909682 Whirlpool Nameplate Tag
17W11126003 Whirlpool Dishwasher Insulation Pad
18W10910629 Whirlpool Dishwasher Nut
