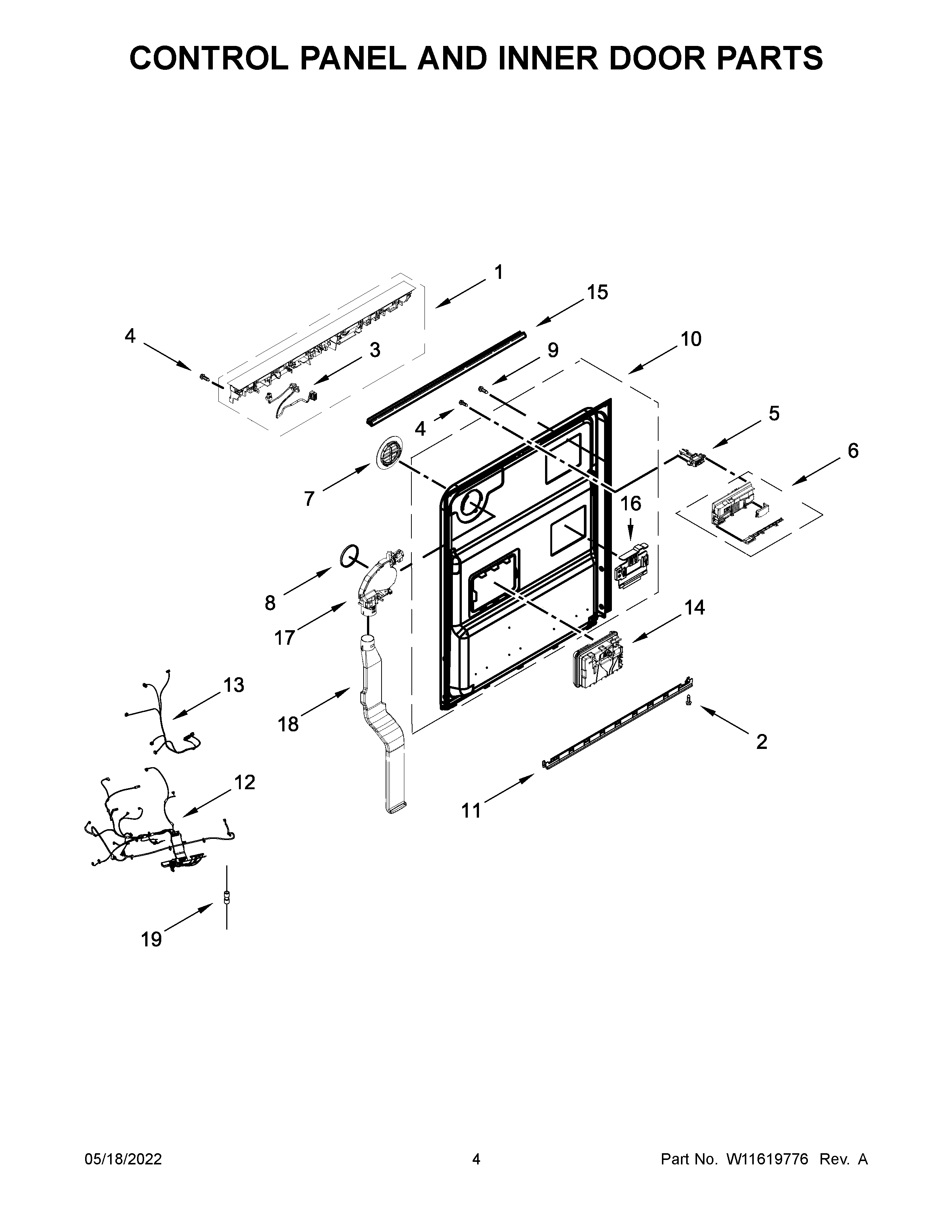

KDTM704KPS1 03 – CONTROL PANEL AND INNER DOOR PARTS

KDTM704KPS1 03 – CONTROL PANEL AND INNER DOOR PARTS

Written by

in

KDTM704KPS1 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1W11622495 Whirlpool Console + Core
2W11627527 Whirlpool Screw
3W11690158 Whirlpool Wire Harness
4WPW10213953 Whirlpool Screw
5W11412299 Whirlpool Dishwasher Door Latch
6W11629916-includeCORE Whirlpool W11629916 Washing Machine Electronic Control Board + Core
7W11545290 Whirlpool Deflector
8W11545539 Whirlpool Gasket Seal
9WPW10348409 Whirlpool Screw
10W11559689 Whirlpool Door Inner
11W11664713 Whirlpool Dishwasher Lower Door Seal
12W11330869 Whirlpool Wire Harness
13W11678803 Whirlpool Wire Harness
14DISPENSER
15W11412696 Whirlpool Seal
16W11088985 Whirlpool Bracket Assembly
17W11414073 Whirlpool Vent Assembly
18W11038734 Whirlpool Vent Tube
19W11397505 Whirlpool Wire Harness
