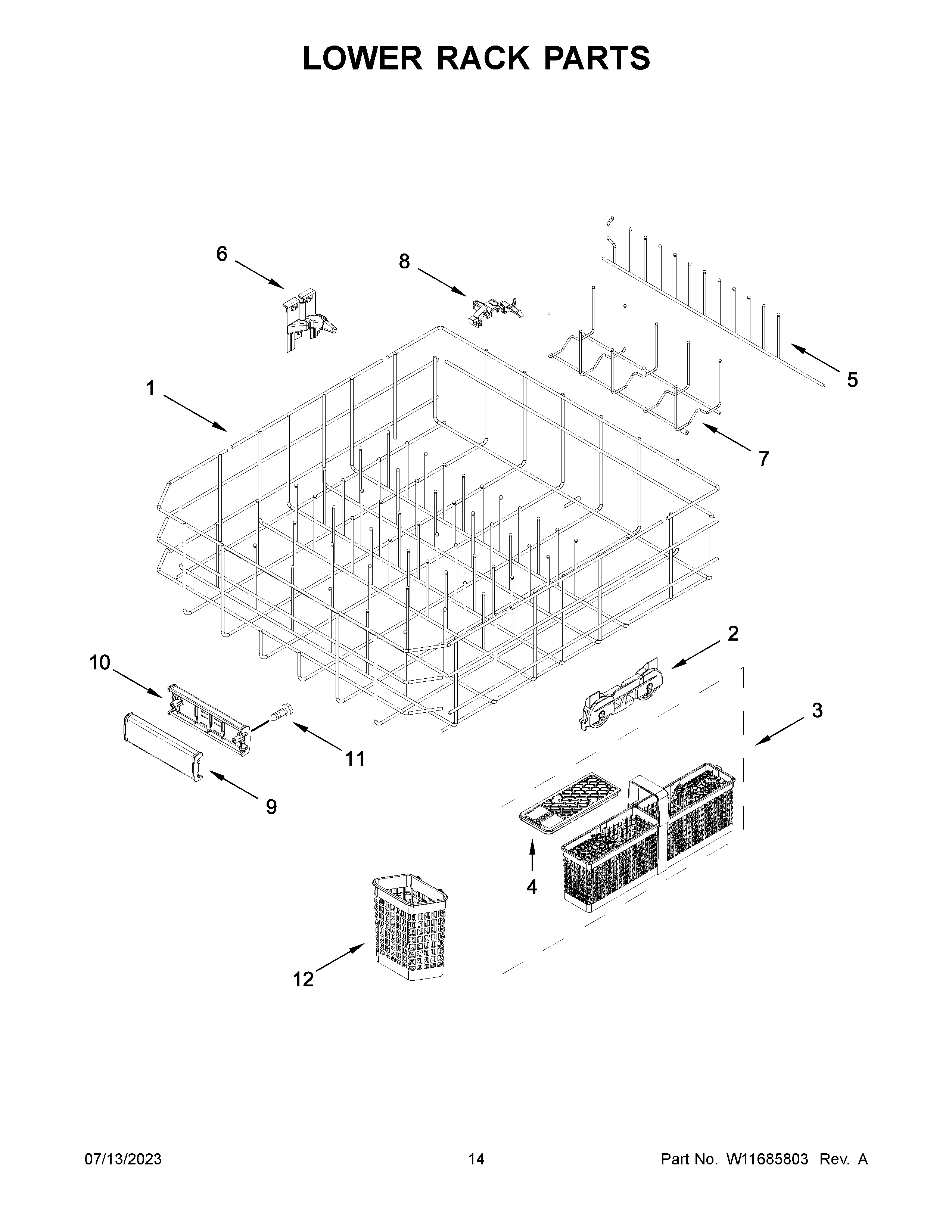

KDTM704KPS2 08 – LOWER RACK PARTS

KDTM704KPS2 08 – LOWER RACK PARTS

Written by

in

KDTM704KPS2 08 – LOWER RACK PARTS

Products

PositionProduct
1W11498446 Whirlpool Dishrack
2W11133746 Whirlpool Wheel
3W11643665 Whirlpool Basket Wire
4W11267718 Whirlpool Lid
5W10728160 Whirlpool Tine Assembly
6W11736466 Whirlpool Retainer
7W10554952 Whirlpool Dishwasher Tine Row
8W11268661 Whirlpool Retainer
9W11392620 Whirlpool Dishwasher Handle
10W11268681 Whirlpool Handle
11WP9741232 Whirlpool Dishwasher Screw
12W11267721 Whirlpool Bakeware Basket
