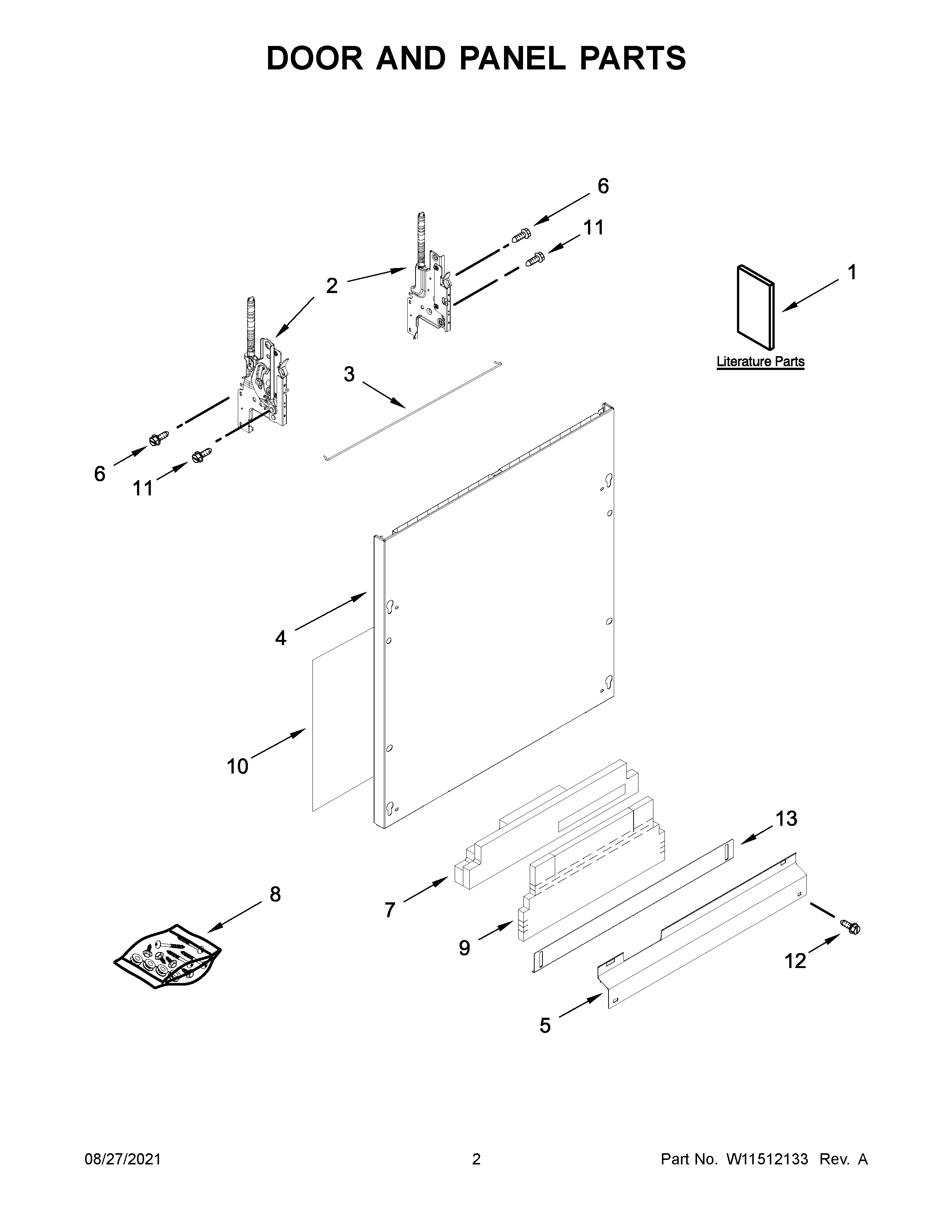

KDTM704LPA0 02 – DOOR AND PANEL PARTS

KDTM704LPA0 02 – DOOR AND PANEL PARTS

Written by

in

KDTM704LPA0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BTECH SHEET
1AENERGY GUIDE
1OWNERS MANUAL
1CW11460372 Whirlpool Dishwasher Template
2AW11323123 Whirlpool Door Hinge
2W11323124 Whirlpool Door Hinge
3W11377160 Whirlpool Brace Assembly
4W11505234 Whirlpool Panel
5W11545318 Whirlpool Toekick Plate
6WPW10309090 Whirlpool Dishwasher Screw
7W11573700 Whirlpool Shield
8WPW10637074 Whirlpool Dishwasher Miscellaneous Parts
9W11573704 Whirlpool Dishwasher Shield
10W11298981 Whirlpool Insulation Pad
11W11676450 Whirlpool Screw
12W11551775 Whirlpool Screw
13W11579528 Whirlpool Toe Panel
