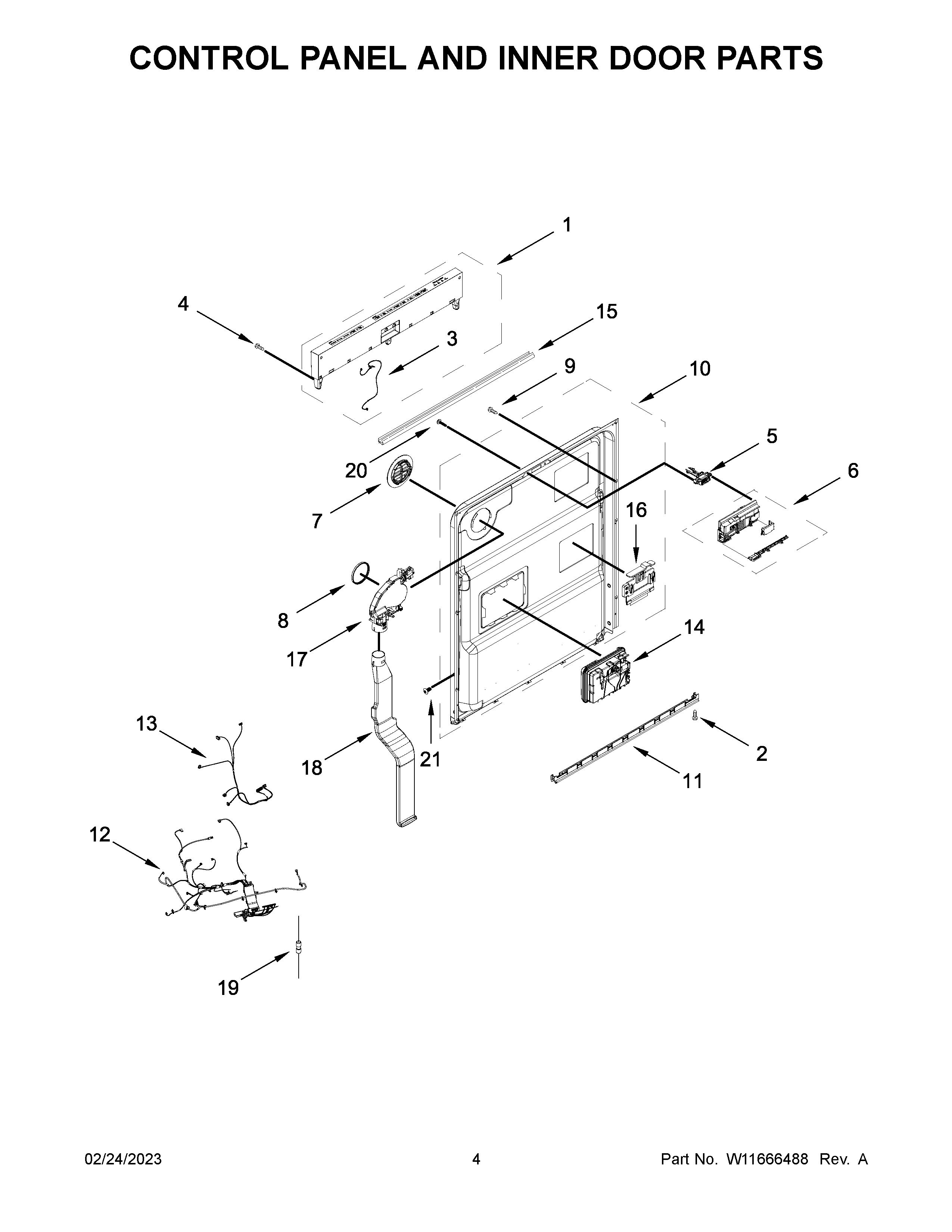

KDTM704LPA1 03 – CONTROL PANEL AND INNER DOOR PARTS

Products

PositionProduct
1W11659646-includeCORE Whirlpool W11659646 Console
2W11627527 Whirlpool Screw
3W11084876 Whirlpool Wire Harness
4WPW10213953 Whirlpool Screw
5W11412299 Whirlpool Dishwasher Door Latch
6W11660282 Whirlpool Electronic Control Board with Core
7W11545290 Whirlpool Deflector
8W11545539 Whirlpool Gasket Seal
9WPW10348409 Whirlpool Screw
10W11559689 Whirlpool Door Inner
11W11664713 Whirlpool Dishwasher Lower Door Seal
12WIRING HARNESS, MAIN (INCLUDES THERMOSTAT & FUSE)
13W11678803 Whirlpool Wire Harness
14DISPENSER
15W11412696 Whirlpool Seal
16W11088985 Whirlpool Bracket Assembly
17W11414073 Whirlpool Vent Assembly
18W11038734 Whirlpool Vent Tube
19W11397505 Whirlpool Wire Harness
20W10381476 Whirlpool Dishwasher Screw
21WP3400071 Whirlpool Screw
