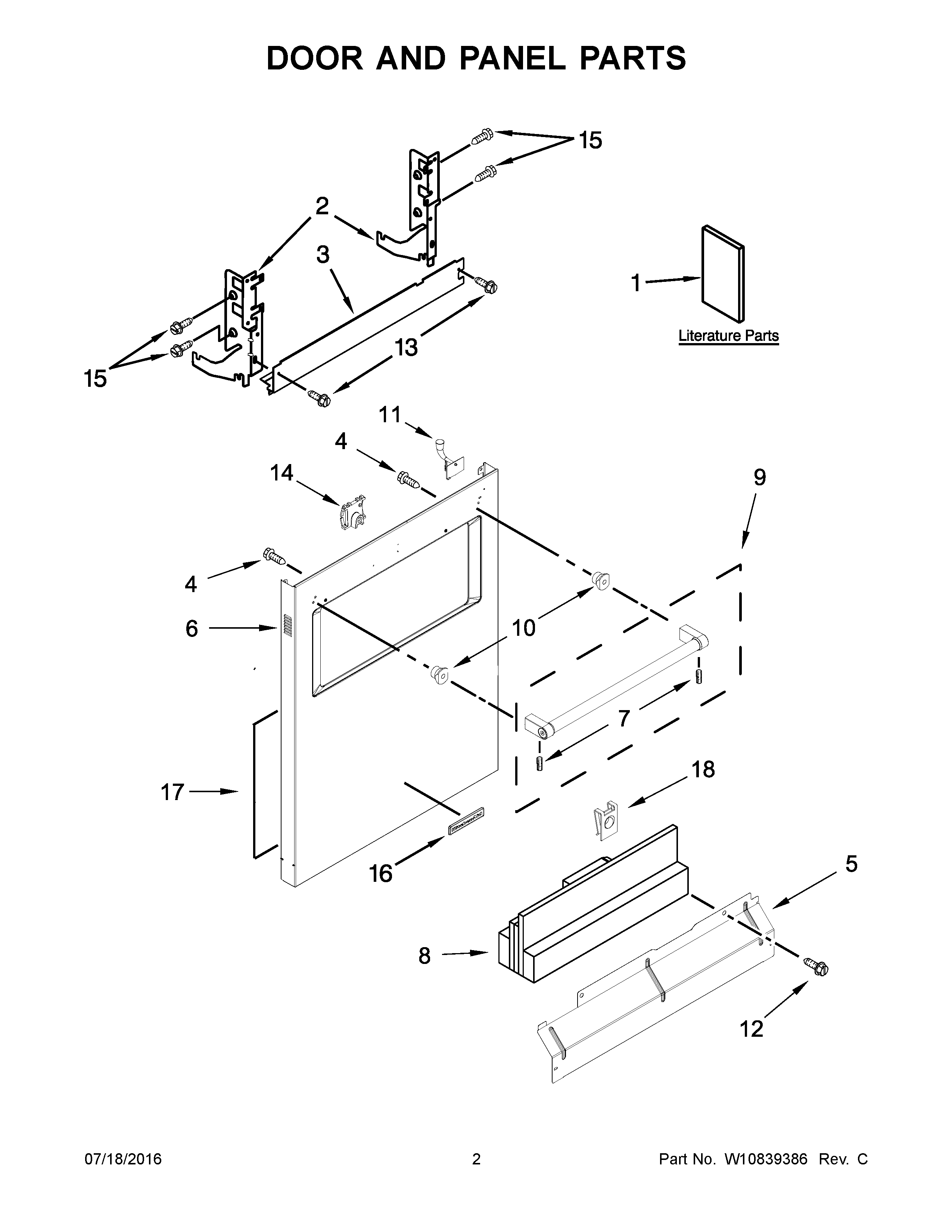

KDTM804EBS0 02 – DOOR AND PANEL PARTS

KDTM804EBS0 02 – DOOR AND PANEL PARTS

Written by

in

KDTM804EBS0 02 – DOOR AND PANEL PARTS

Products

PositionProduct
1BUSE & CARE GUIDE
1AENERGY GUIDE
1INSTALLATION INSTRUCTIONS
1CTECH SHEET, ENGLISH
1DTECH SHEET, FRENCH
2W11612302 Whirlpool Dishwasher Door Hinge
2AW11612303 Whirlpool Door Hinge
3W10850371 Whirlpool Dishwasher Door Brace
4WPW10213953 Whirlpool Screw
5W10909064 Whirlpool Dishwasher Black Access Panel
6AW10903073 Whirlpool Panel
6W10796431 Whirlpool Panel Assembly
7W10917698 Whirlpool Dishwasher Screw
8W11223838 Whirlpool Shield
9W10708004 Whirlpool Dishwasher Handle
10W11157086 Whirlpool Dishwasher Door Handle Stud
11W10831645 Whirlpool Dishwasher Indicator Light
12WP302868 Whirlpool Screw
13WP489069 Whirlpool Compactor Screw
14W10692757 Whirlpool Dishwasher Nut Assembly
15WP3400071 Whirlpool Screw
16W10839793 Whirlpool Refrigerator Nameplate
17W10721318 Whirlpool Insulation Pad
18W10910629 Whirlpool Dishwasher Nut
