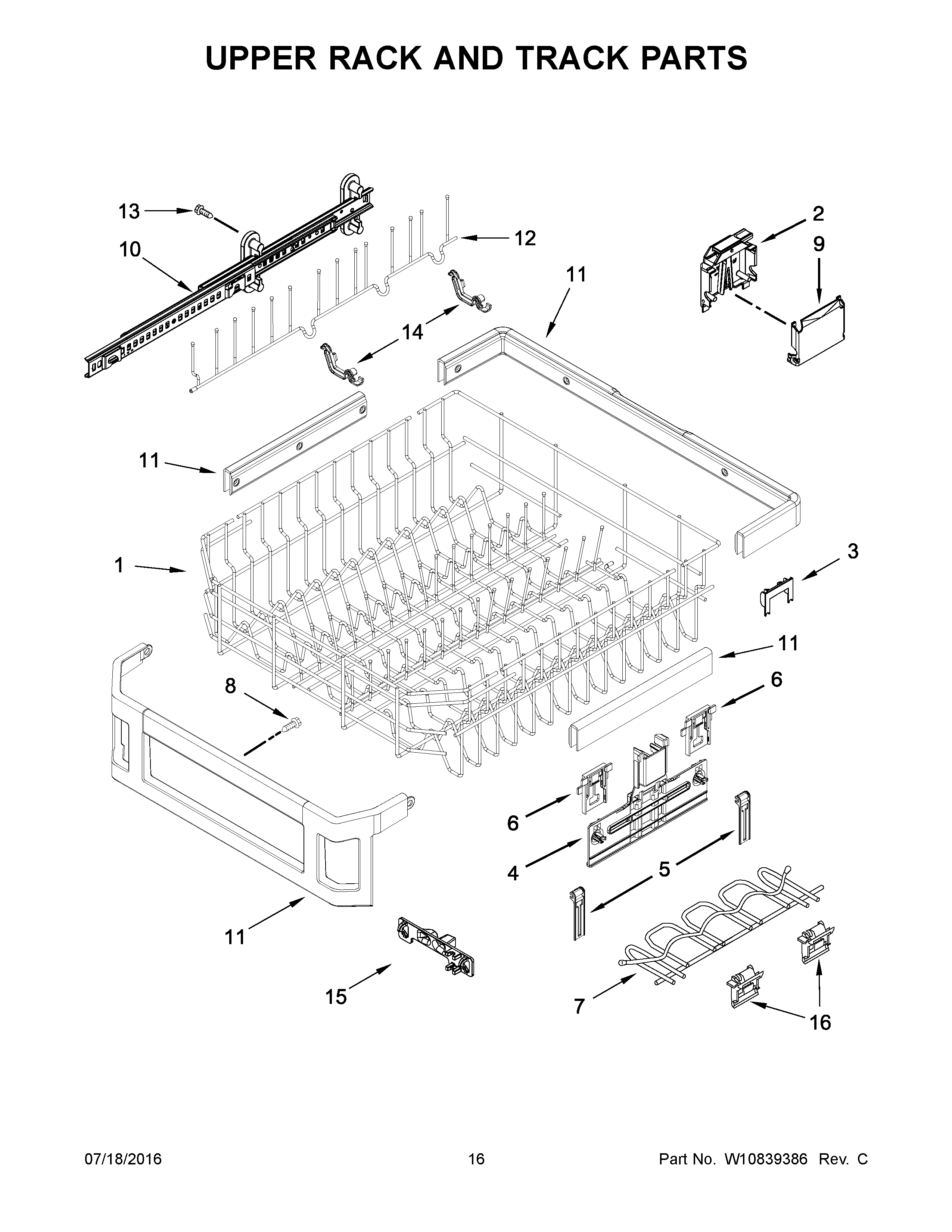

KDTM804ESS0 09 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W10642703 Whirlpool Dish Rack
2WPW10588164 Whirlpool Left Hand Housing Rack Adjuster
2AWPW10588165 Whirlpool Adjuster Housing
3WPW10250160 Whirlpool Clip
4WPW10546503 Whirlpool Dishwasher Upper Rack Adjuster
5WPW10195839 Whirlpool Dishwasher Rack Adjuster
6WPW10195840 Whirlpool Dishwasher Adjuster Arm Positioner Clip
7W11125975 Whirlpool Dishwasher Cup Shelf
8SCREW
9COVER
10W11259785 Whirlpool Dishwasher Upper Dishrack Slide Track Left Side
10AW11259786 Whirlpool Dishwasher Upper Dishrack Slide Track Right Side
11BW10796651 Whirlpool Trim Assembly
11FACADE ASSEMBLY (INCLUDES OUTSIDE AND INSIDE) (FRONT)
11AW10796650 Whirlpool Trim
12AW10713311 Whirlpool Tine Row
12TINE ROW, FOLD DOWN (LEFT HAND)
13WPW10309090 Whirlpool Dishwasher Screw
14WPW10082853 Whirlpool Dishwasher Tine Pivot Clip
15WP8539102 Whirlpool Dishwasher Positioner
168562026 Whirlpool Dishwasher Clip
