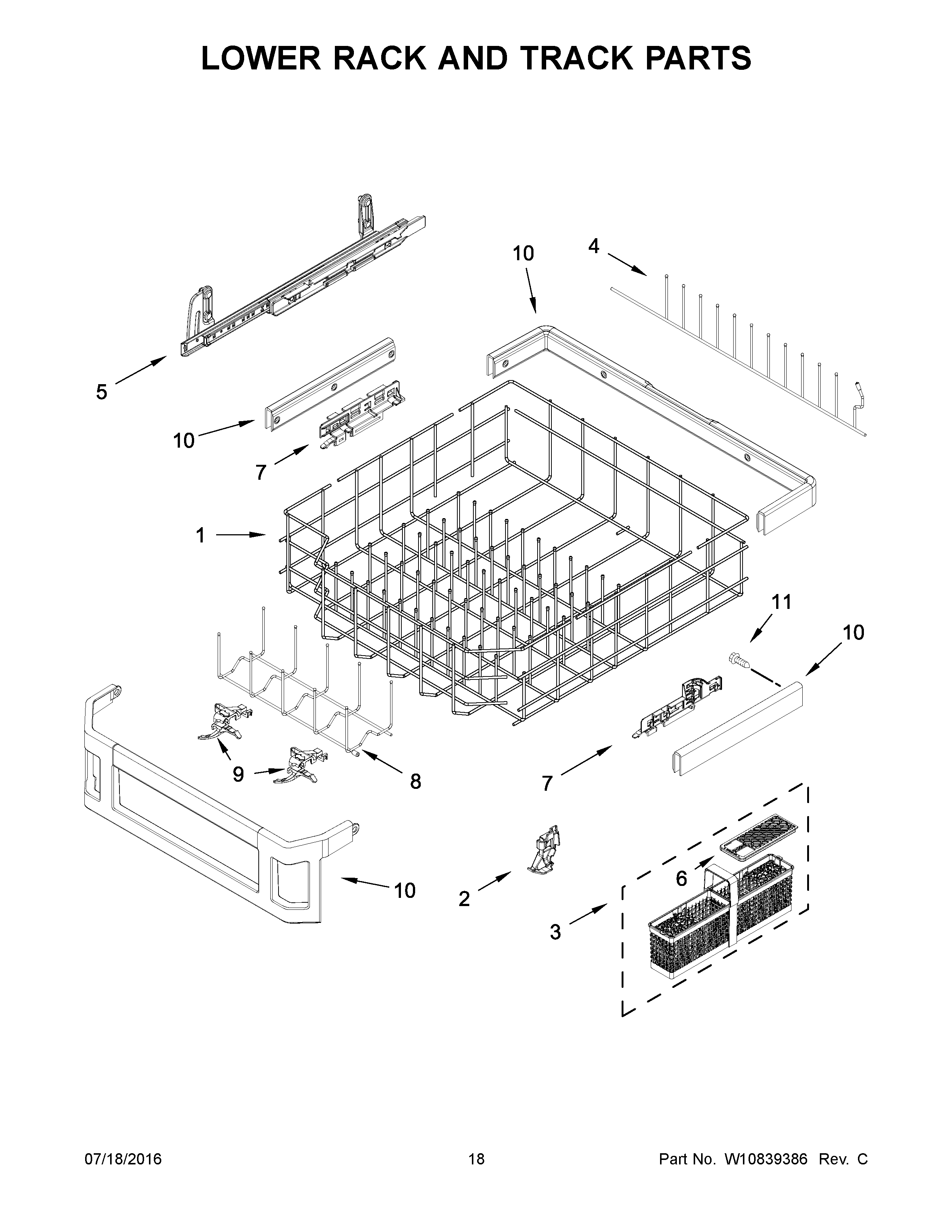

KDTM804ESS0 10 – LOWER RACK AND TRACK PARTS

KDTM804ESS0 10 – LOWER RACK AND TRACK PARTS

Written by

in

KDTM804ESS0 10 – LOWER RACK AND TRACK PARTS

Products

PositionProduct
1W10642737 Whirlpool Dish Rack
2W11193827 Whirlpool Dishwasher Support
2AW11197023 Whirlpool Dishwasher Support
3WPW10473836 Whirlpool Silverware Basket
4W10713279 Whirlpool Tine Row
5W10822165 Whirlpool Slide Rail
5AW10822166 Whirlpool Dishwasher Track
6WPW10473835 Whirlpool Dishwasher Lid
7AWPW10473809 Whirlpool Dishwasher Support
7WPW10473807 Whirlpool Dishwasher Support
8W10713281 Whirlpool Dishwasher Tine Row
9W11213333 Whirlpool Dishwasher Retainer
10FACADE ASSEMBLY (INCLUDES OUTSIDE AND INSIDE) (FRONT)
10AFACADE ASSEMBLY (INCLUDES OUTSIDE AND INSIDE) (LEFT SIDE)
10BFACADE ASSEMBLY (INCLUDES OUTSIDE AND INSIDE) (RIGHT SIDE)
10CFACADE ASSEMBLY (INCLUDES OUTSIDE AND INSIDE) (REAR)
11SCREW
