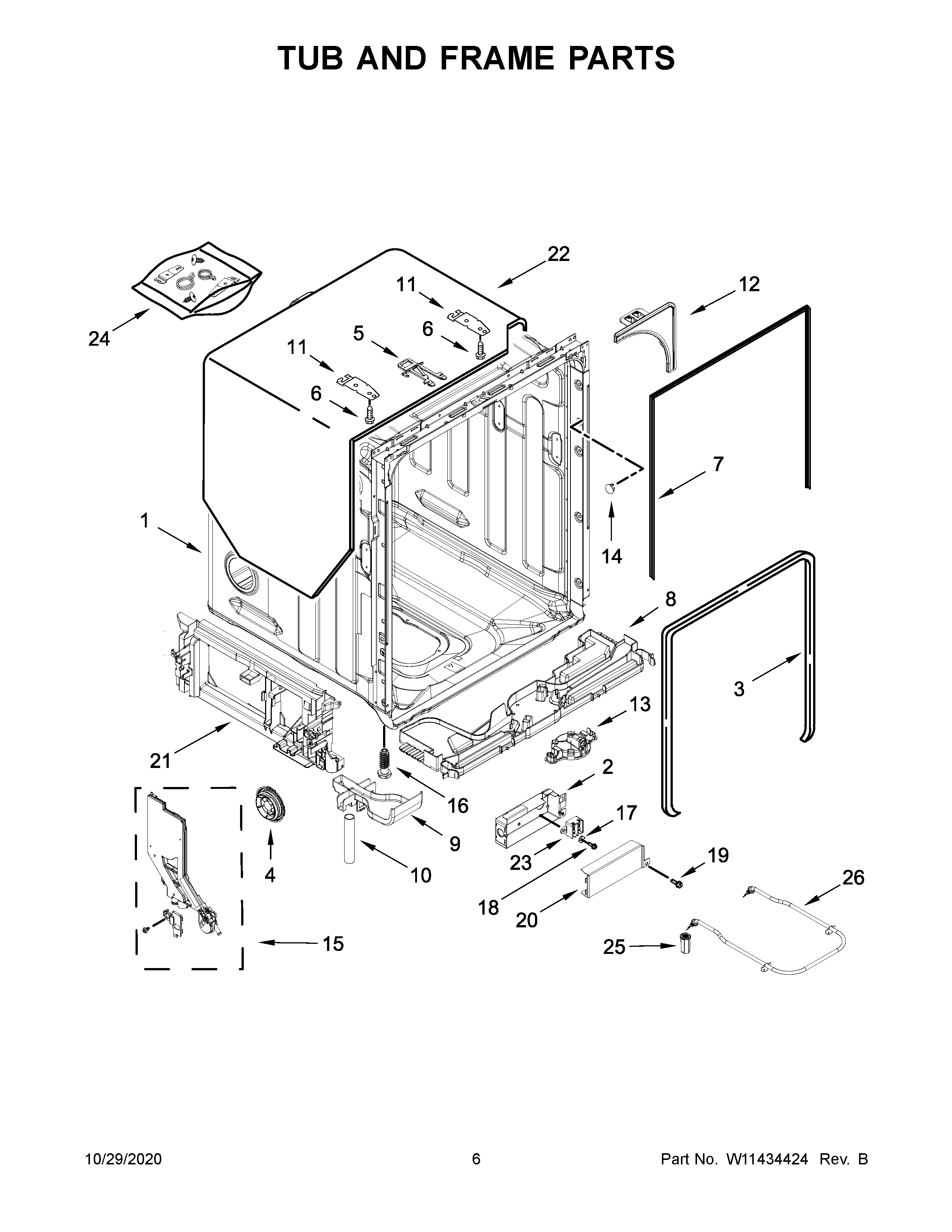

KDTM804KBS0 04 – TUB AND FRAME PARTS

KDTM804KBS0 04 – TUB AND FRAME PARTS

Products

PositionProduct
1W11409866 Whirlpool Tub
2W11226744 Whirlpool Box Cover
3W11483553 Whirlpool Tub Seal
4W11535081 Whirlpool Tube Nut
5STRIKE
6W11551549 Whirlpool Microwave Screw
7W11414078 Whirlpool Seal Assembly
8W11550169 Whirlpool Drip Tray
9W11025986 Whirlpool Dishwasher Funnel
10W11025988 Whirlpool Dishwasher Funnel
11WP8269145 Whirlpool Dishwasher Mounting Bracket
12W11579566 Whirlpool Insert
13FLOAT SWITCH
14W11573757 Whirlpool Cap Assembly
15INLET-WATR
16W11561254 Whirlpool Leg Leveler
17WP3378128 Whirlpool Dishwasher Washer
18WP3400014 Whirlpool Dishwasher Screw
19WPW10277003 Whirlpool Screw
20W11407385 Whirlpool Wiring Cover
21AW11679657 Whirlpool Support
21W11679658 Whirlpool Side Support Tub
22W11553445 Whirlpool Insulation
23W11573809 Whirlpool Termination Block
24W11502191 Whirlpool Bag Assembly Loose Parts Towel Bar
25W11538351 Whirlpool Nut
26W11537778 Whirlpool Heating Element Assembly
