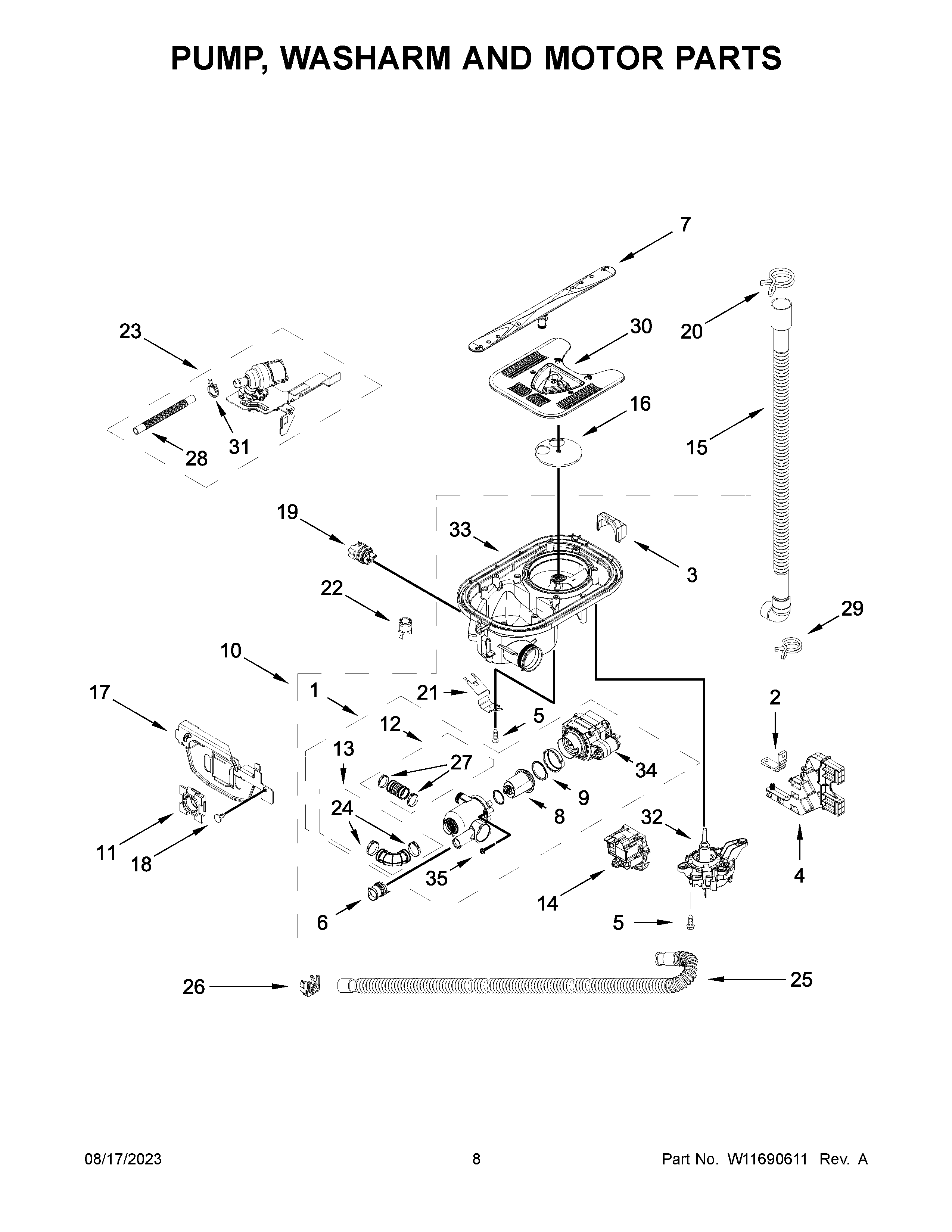

KDTM804KBS2 05 – PUMP, WASHARM AND MOTOR PARTS

Products

Position	Product
1	BASE-PUMP
2	W11294352 Whirlpool Support
3	W10891545 Whirlpool Retainer
4	W11294350 Whirlpool Bracket
5	WP9741232 Whirlpool Dishwasher Screw
6	W11622925 Whirlpool Check Valve
7	ARM-SPRAY
8	FILTR-PUMP
9	W10380239 Whirlpool Ring
10	PUMP&MOTOR
11	W11036663 Whirlpool Support
12	W11419334 Whirlpool Hose
13	W11419333 Whirlpool Hose Assembly
14	PUMP-DRAIN
15	W11414944 Whirlpool Drain Hose
16	W11662107 Whirlpool Dishwasher Diffuser
17	W11025963 Whirlpool Bracket
18	W11104048 Whirlpool Cover
19	W11410464 Whirlpool Sensor
20	WP285655 Whirlpool Hose Clamp
21	W11163419 Whirlpool Bracket - Stat
22	W11573758 Whirlpool Thermostat
23	VALVE-INLT
25	DRAIN HOSE ASM-RIF
26	W11596052 Whirlpool Clip
27	W10783615 Whirlpool Dishwasher Clamp
28	W11627534 Whirlpool Fill Hose
29	W11545578 Whirlpool Hose Clamp
30	W11568785 Whirlpool Screen
31	WP596669 Whirlpool Hose Clamp
32	DIVERTER VALVE MOTOR (NOT SERVICED)
33	W11443104 Whirlpool Sump Assembly
34	W11662065 Whirlpool Dishwasher Capacitor
35	W10467002 Whirlpool Screw
