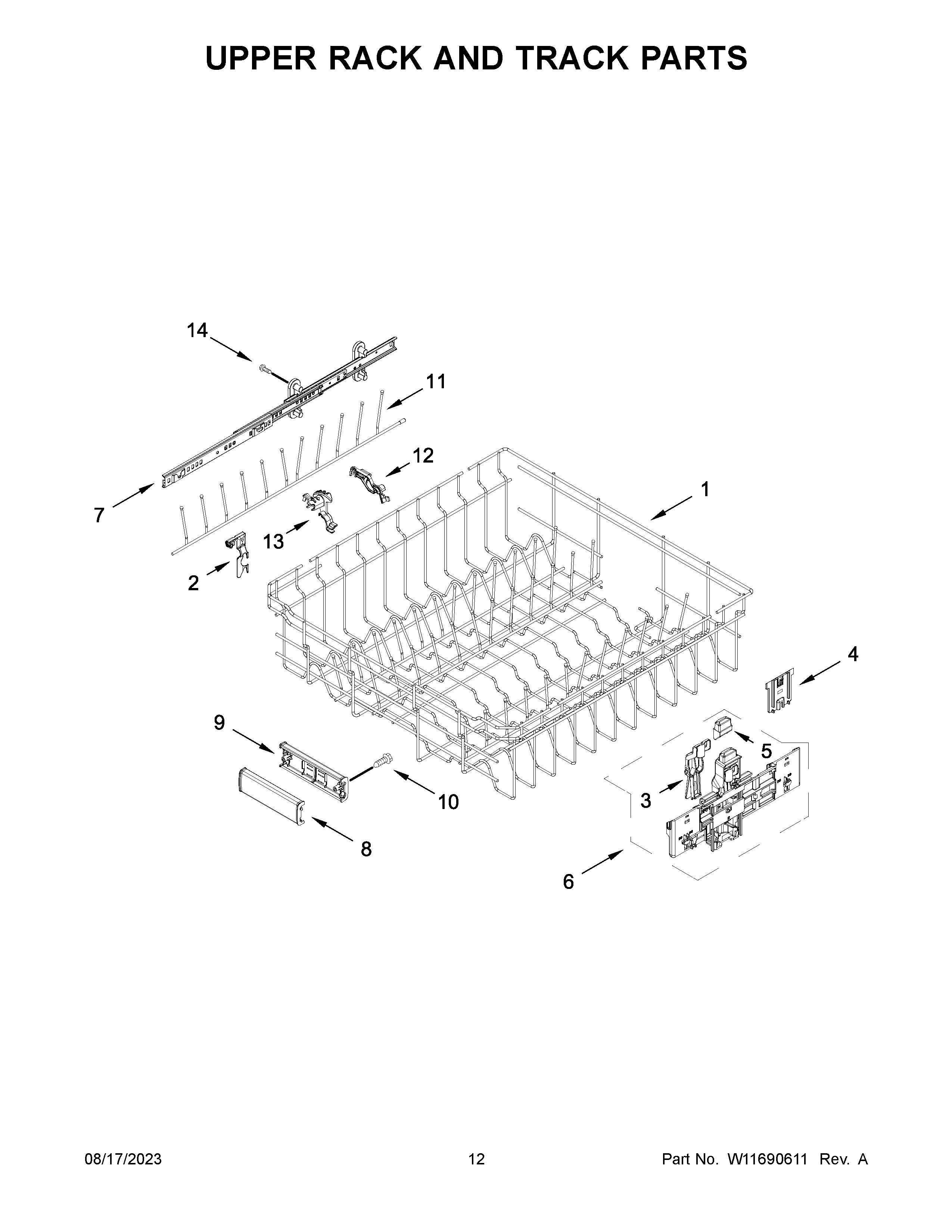

KDTM804KBS2 07 – UPPER RACK AND TRACK PARTS

KDTM804KBS2 07 – UPPER RACK AND TRACK PARTS

Products

PositionProduct
1W11672788 Whirlpool Dish Rack
2CLIP
3W11180178 Whirlpool Positioner
4W11580020 Whirlpool Positioner
5BUTTON, ADJUSTER ARM
6AW11268078 Whirlpool Adjuster Assembly
6W11690884 Whirlpool Adjuster
7AW11212734 Whirlpool Track
7W11666271 Whirlpool Track
8W11268682 Whirlpool Handle
9W11268681 Whirlpool Handle
10WP9741232 Whirlpool Dishwasher Screw
11W11727974 Whirlpool Tine Row
12W11627535 Whirlpool Tine Pivot
13W11179755 Whirlpool Clip
14W11170270 Whirlpool Screw
