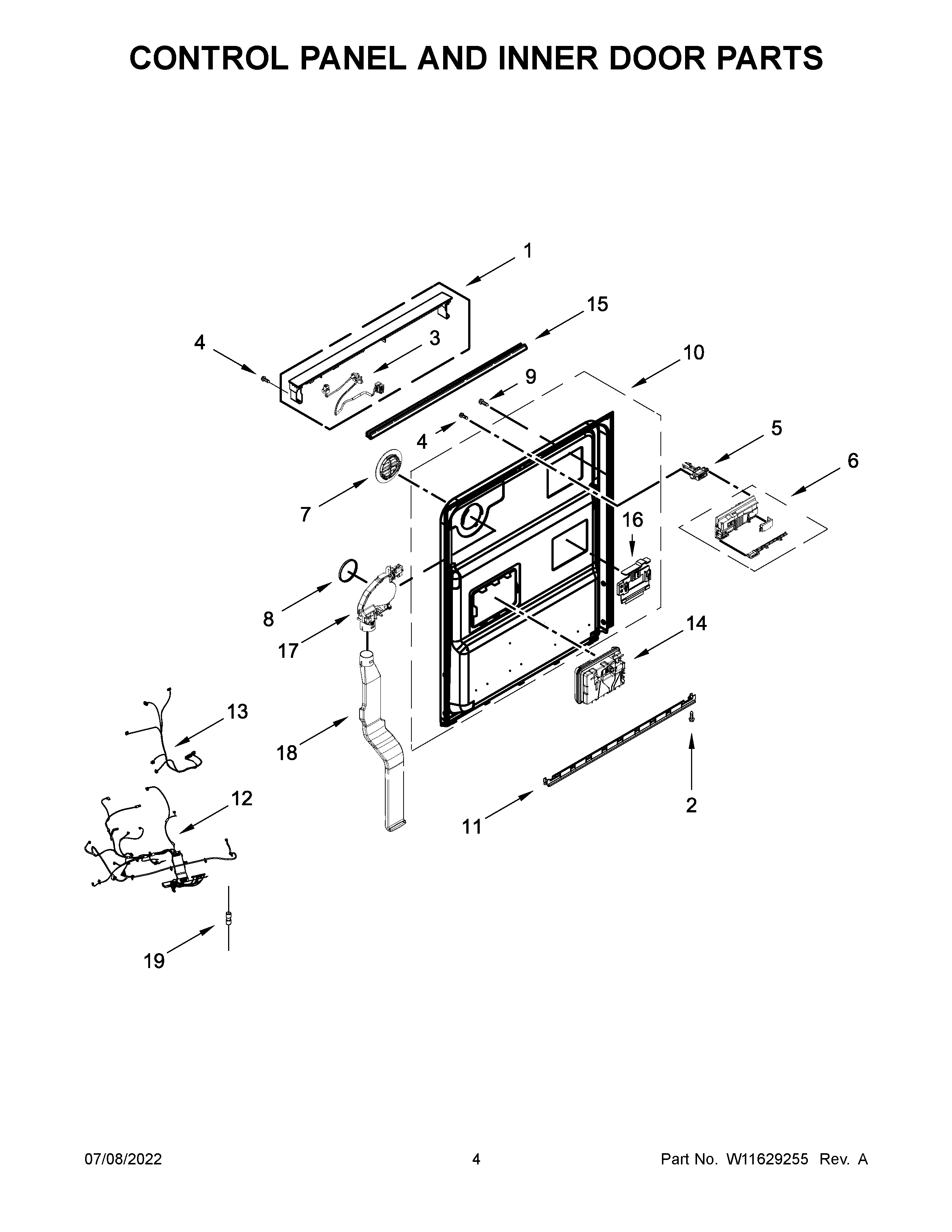

KDTM804KPS1 03 – CONTROL PANEL AND INNER DOOR PARTSadmin2025-04-26T10:29:57+00:00KDTM804KPS1 03 – CONTROL PANEL AND INNER DOOR PARTS ProductsPositionProduct1W11622495 Whirlpool Console + Core2W11627527 Whirlpool Screw3W11690158 Whirlpool Wire Harness4WPW10213953 Whirlpool Screw5W11412299 Whirlpool Dishwasher Door Latch6W11629916-includeCORE Whirlpool W11629916 Washing Machine Electronic Control Board + Core7W11545290 Whirlpool Deflector8W11545539 Whirlpool Gasket Seal9WPW10348409 Whirlpool Screw10W11559689 Whirlpool Door Inner11W11664713 Whirlpool Dishwasher Lower Door Seal12W11330869 Whirlpool Wire Harness13W11678803 Whirlpool Wire Harness14DISPENSER15W11412696 Whirlpool Seal16W11088985 Whirlpool Bracket Assembly17W11414073 Whirlpool Vent Assembly18W11038734 Whirlpool Vent Tube19W11397505 Whirlpool Wire Harness
