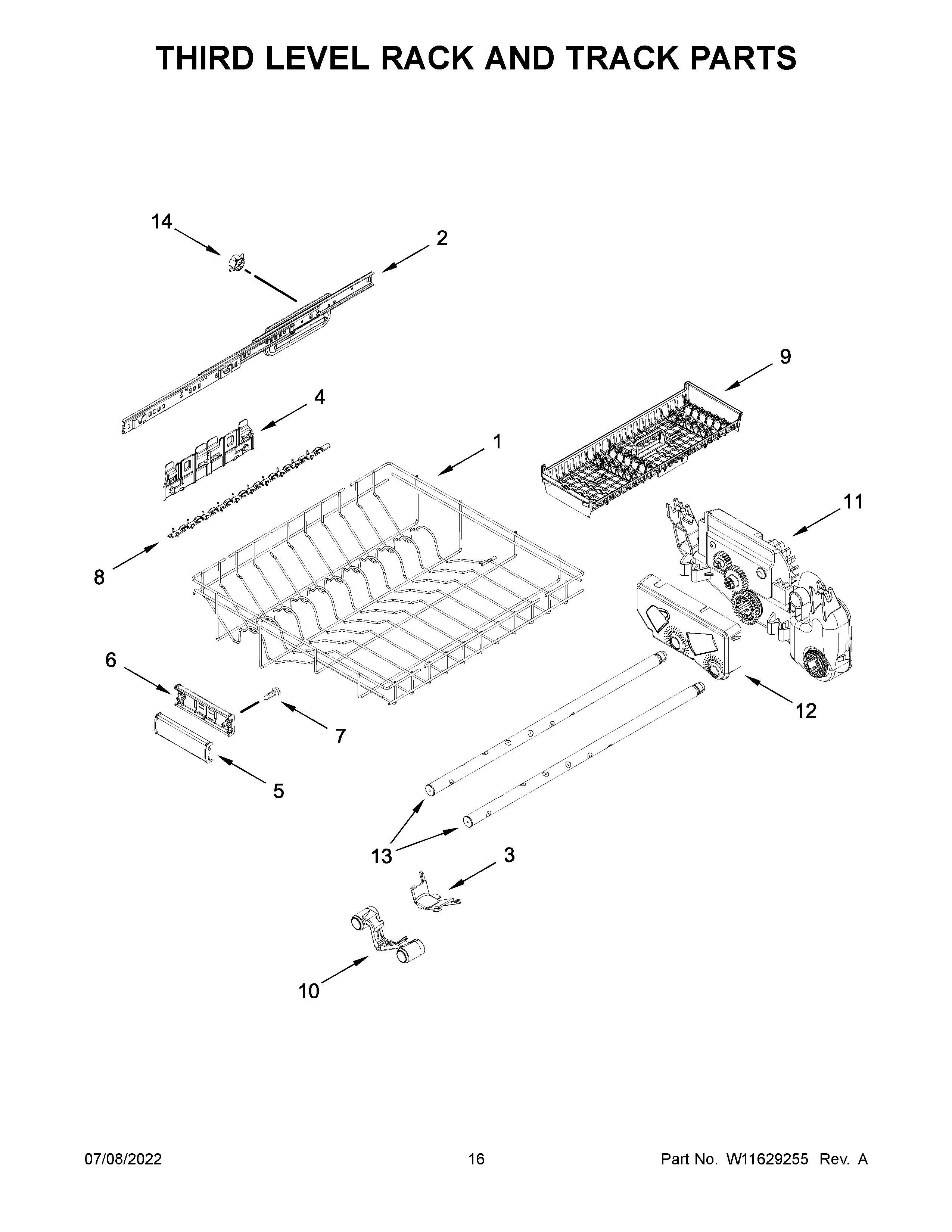

KDTM804KPS1 09 – THIRD LEVEL RACK AND TRACK PARTS

KDTM804KPS1 09 – THIRD LEVEL RACK AND TRACK PARTS

Written by

in

KDTM804KPS1 09 – THIRD LEVEL RACK AND TRACK PARTS

Products

PositionProduct
1W11690882 Whirlpool Dishwasher Rack
2AW11047815 Whirlpool Track
2W11047813 Whirlpool Track
3W11573754 Whirlpool Dishwasher Manifold
4W11130709 Whirlpool Mount
5W11392620 Whirlpool Dishwasher Handle
6W11268681 Whirlpool Handle
7WP9741232 Whirlpool Dishwasher Screw
8W11202101 Whirlpool Clip Assembly
9W11690650 Whirlpool Basket Ware
10W11226505 Whirlpool Manifold
11W11677712 Whirlpool Dishwasher Manifold
12W11101860 Whirlpool Cover Assembly
13W10830571 Whirlpool Tube
14W11545286 Whirlpool Nut
