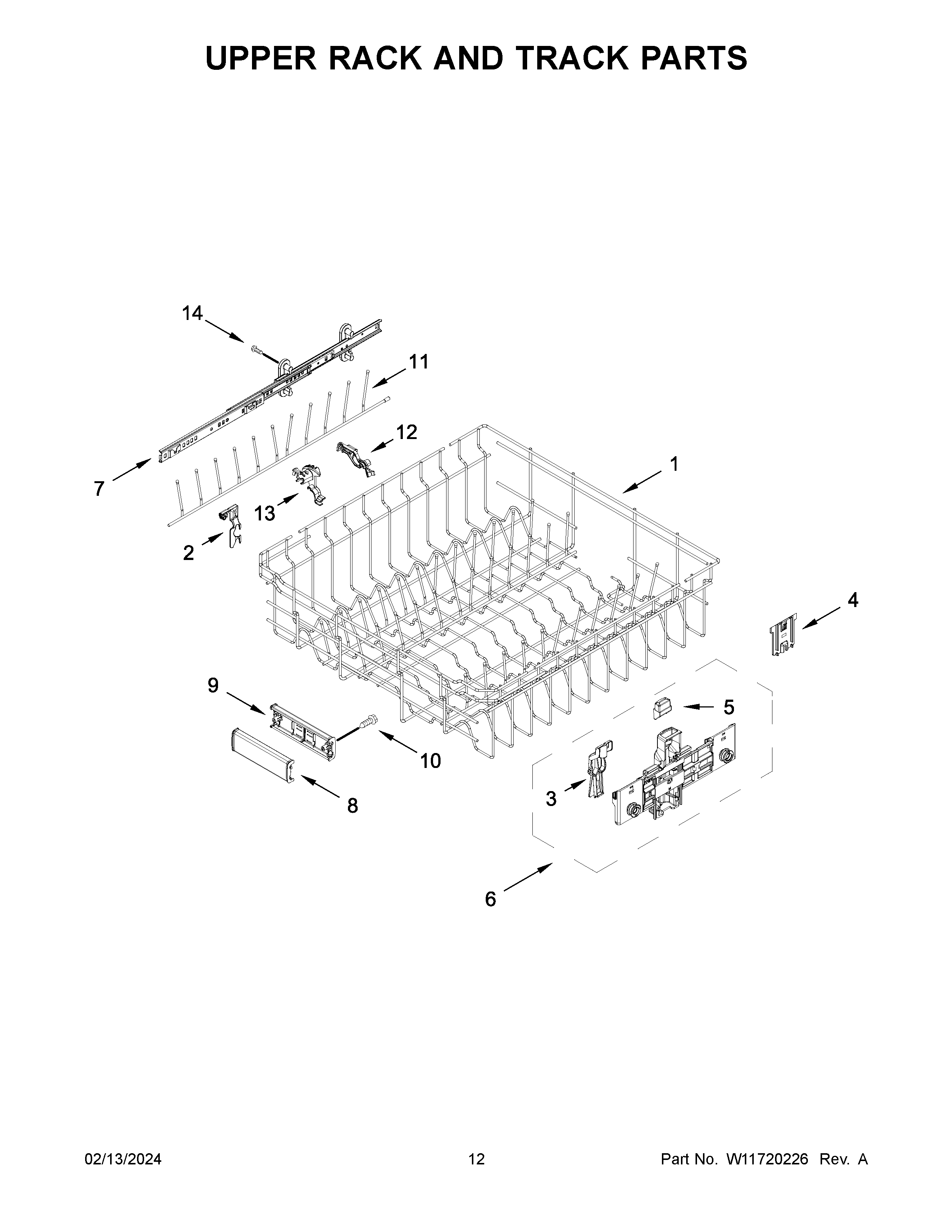

KDTM804KPS3 07 – UPPER RACK AND TRACK PARTS

Products

Position	Product
1	W11672788 Whirlpool Dish Rack
2	CLIP
3	W11180178 Whirlpool Positioner
4	W11580020 Whirlpool Positioner
5	BUTTON, ADJUSTER ARM
6A	W11268078 Whirlpool Adjuster Assembly
6	W11690884 Whirlpool Adjuster
7A	W11212734 Whirlpool Track
7	W11666271 Whirlpool Track
8	W11268682 Whirlpool Handle
9	W11268681 Whirlpool Handle
10	WP9741232 Whirlpool Dishwasher Screw
11	W11727974 Whirlpool Tine Row
12	W11627535 Whirlpool Tine Pivot
13	W11179755 Whirlpool Clip
14	W11170270 Whirlpool Screw
