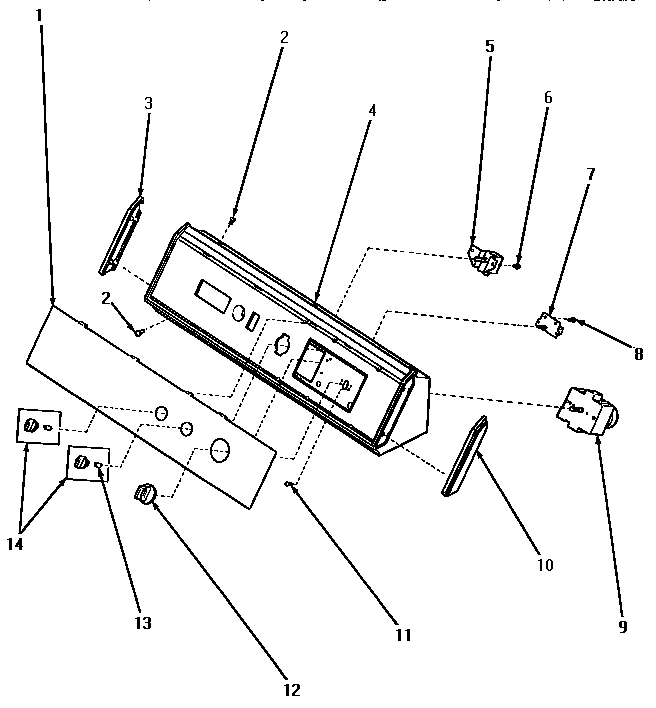

KE6533 05 – GRAPHICS PANEL, CONTROL HOOD & CONTROLS

Written by

Products

Position	Product
1	SEE NOTE GROUND WIRE, GREEN
2	MAY 31752
3	MAY 31249
4	MAY 59955
5	MAY 59447
6	MAY 31260
7	MAY 59450
8	WP90767 Whirlpool Screw
9	MAY 61402
10	MAY 31248
11	MAY Y59616
12	59791 Speed Queen Assembly,Timer Knob & SKIRT-SQ
13	MAY 10519
14	MAY 31286
