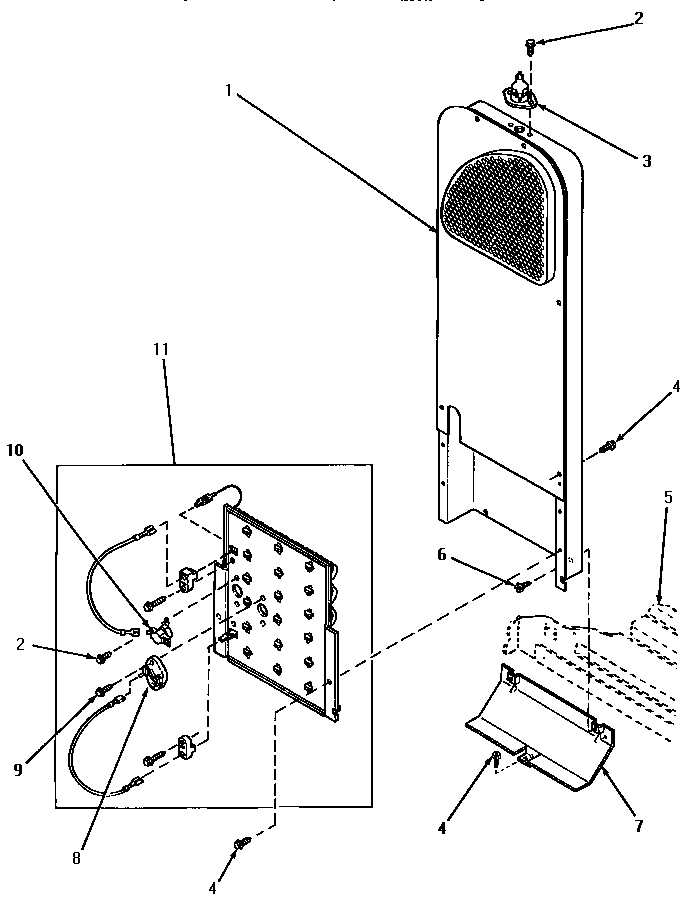

KE6533 06 – HEATER BOX

Written by

Products

Position	Product
1	MAY 61161P
1	MAY 61162P
2	WP3177991 Whirlpool Screw
3	MAY 57239
4	MAY 56264
5	SEE NOTE GROUND WIRE, GREEN
6	MAY 51780
7	SHIELD,HEAT DUCT
8	R9900489 Whirlpool Dryer Thermal Fuse Kit with Thermostat
9	MAY 56693
10	MAY 61210
11	MAY 61927
11	MAY 61928
