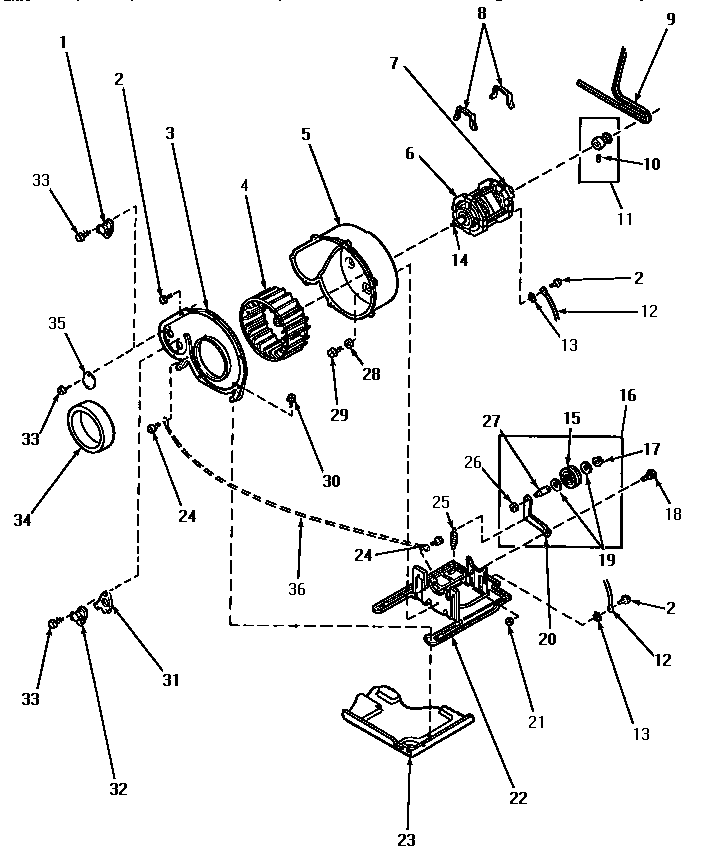

KE6533 08 – MOTOR, EXHAUST FAN & BELT

Products

Position	Product
1	MAY 56410
2	WP90767 Whirlpool Screw
3	MAY 60818
4	MAY 56000
5	MAY 56020
6	915P3 Speed Queen Alliance Dryer Drive Motor
7	MAY 53249
7	MAY 59895
7	MAY 53226
8	WP660658 Whirlpool Clamp
9	MAY 59174
10	MAY 52906
11	MAY 59173
13	MAY 03815
14	MAY 27604P
15	WPY54414 Whirlpool Dryer Idler Pulley
16	MAY Y56170
17	MAY 23748
18	MAY 56587
19	MAY 52549
20	MAY 56057
21	MAY 52566
22	MAY Y60816
25	MAY 56076
26	MAY 56156
27	MAY 56461
28	MAY 20492
29	MAY 56264
30	MAY 51780
31	MAY 61401
32	MAY 56471
32	MAY 59500
32	MAY Y61372
33	WP3177991 Whirlpool Screw
34	MAY 56065
35	COVER PLATE
36	SEE NOTE GROUND WIRE, GREEN
