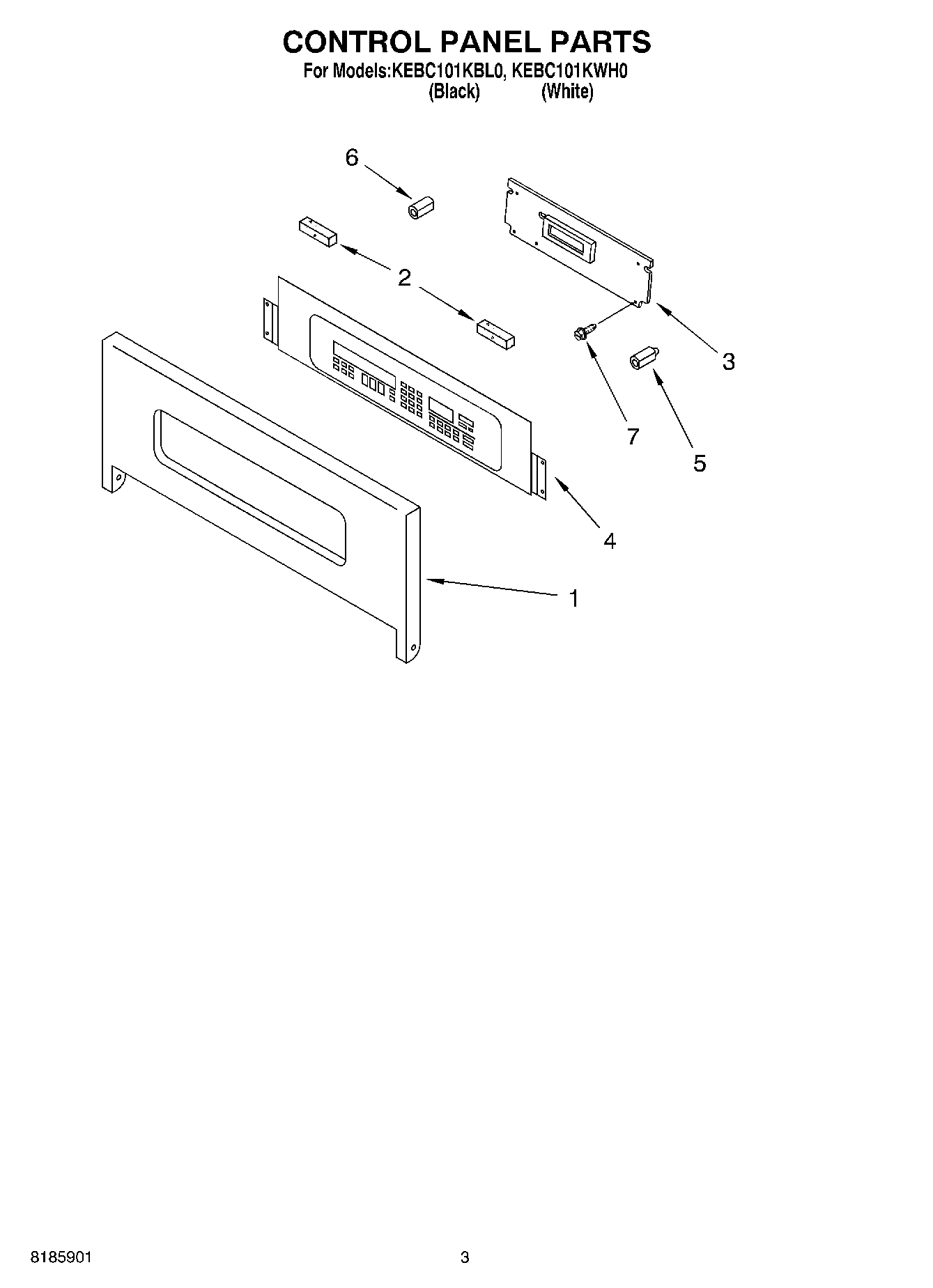

KEBC101KBL0 02 – CONTROL PANEL

Products

Position	Product
1	Panel, Control (Black)
1	Panel, Control (White)
2	Spacer, Foam
3	WP3400832 Whirlpool Screw
3	Microcomputer
4	Switch, Membrane (Black)
4	Switch, Membrane (White)
5	Insulation, Board
6	Insulation, Board Support
7	Screw
