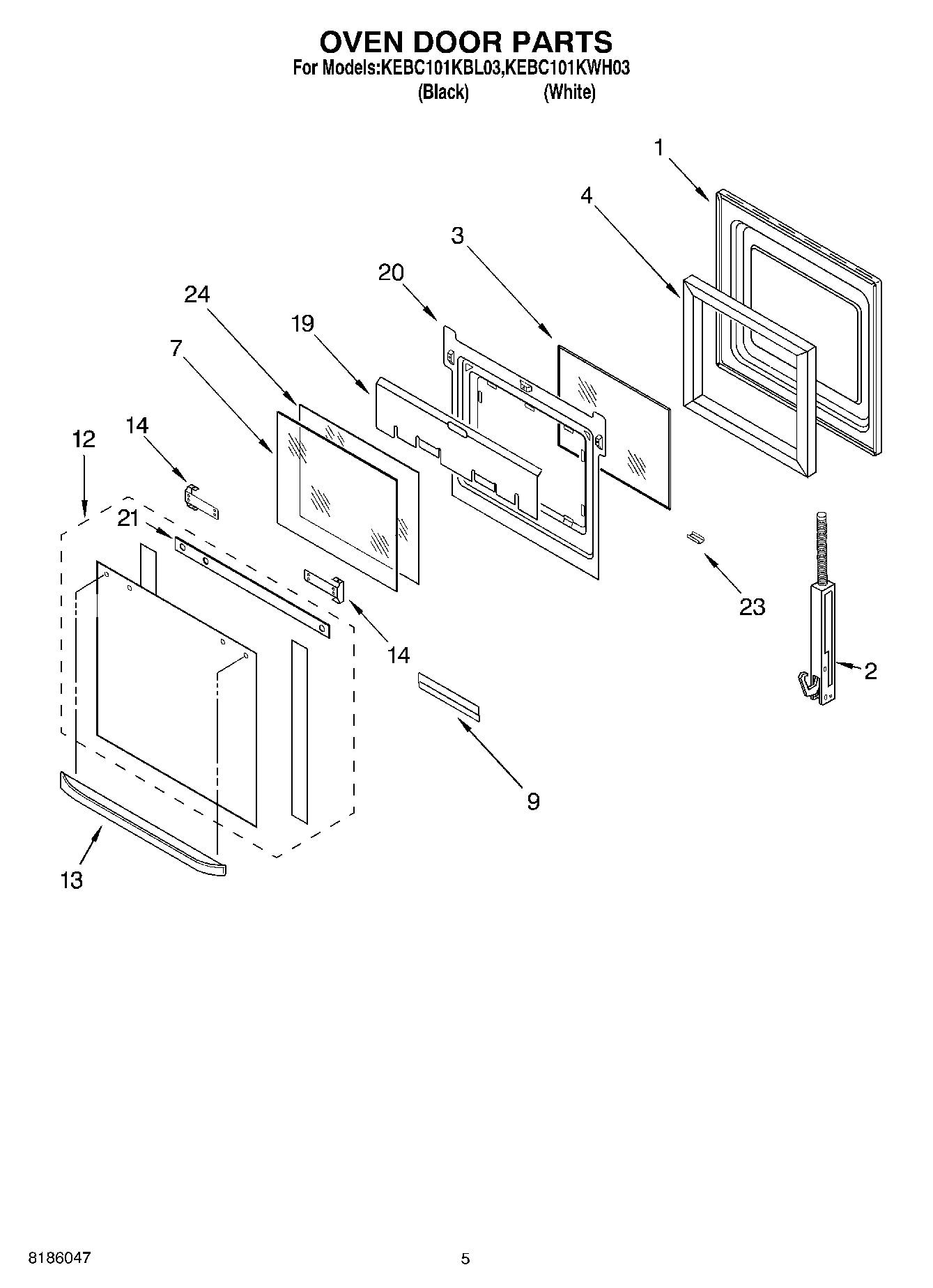

KEBC101KBL03 04 – OVEN DOOR PARTS

Products

Position	Product
	NOTE: The screws and nuts required to attach a part are listed immediately following that part.
1	WP9759413 Whirlpool Door Liner
2	HINGE-DOOR
2	HINGE-DOOR LH/SS DOOR SPRING
2	WP4449743 Whirlpool Screw
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
12	Door Glass, Assy (White)
12	Door Glass, Assy (Black)
13	Handle, Door (Black)
13	Handle, Door (White)
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle (L.Hand)
14	WPW10132940 Whirlpool Dishwasher Screw
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	Glass, Inner
