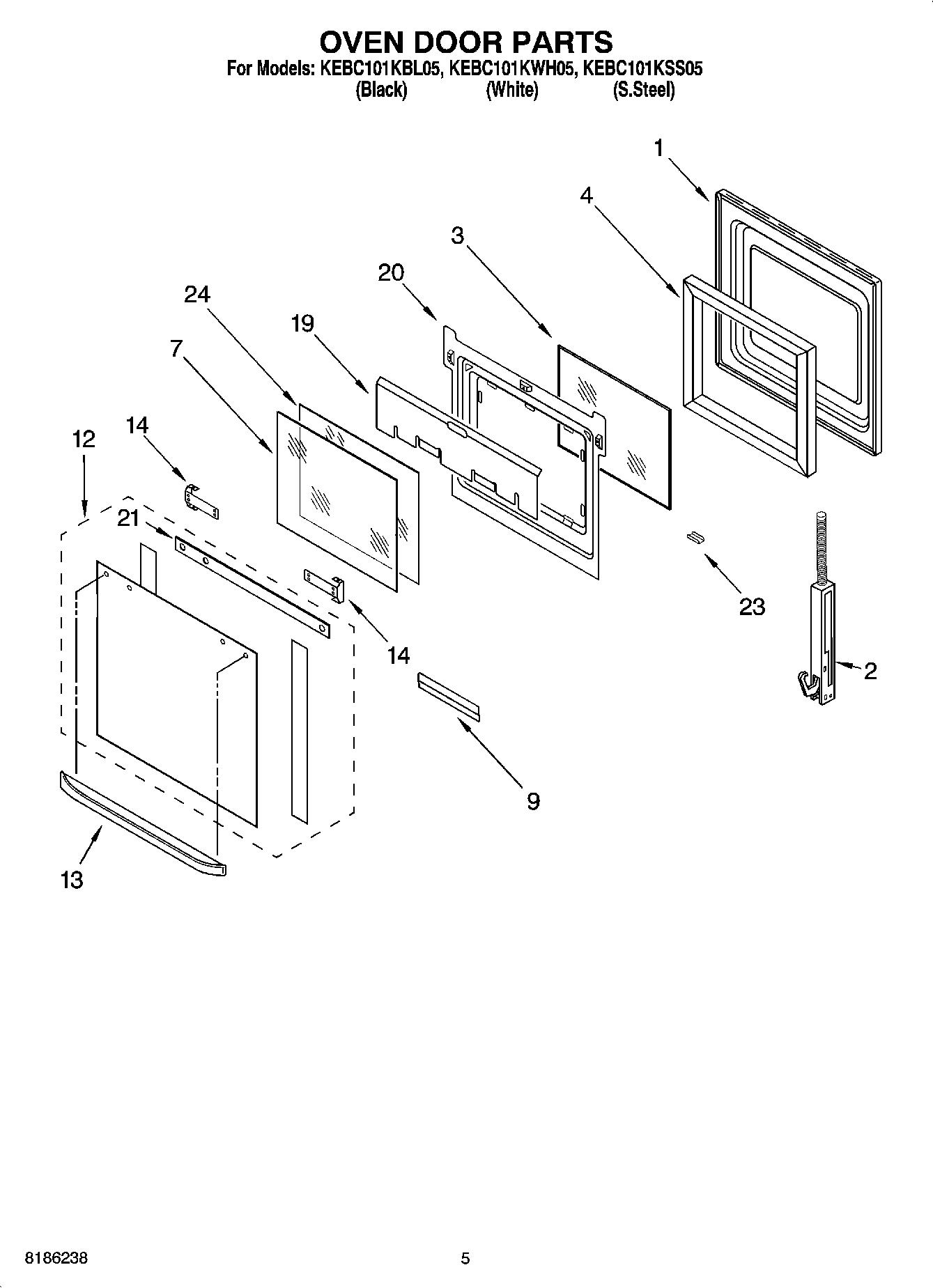

KEBC101KBL05 04 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760577 Whirlpool Oven Right Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
2	WP9760578 Whirlpool Oven Left Door Hinge
2	WP4449743 Whirlpool Screw
2	HINGE-DOOR
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
12	Door Glass, Assy (Black)
12	Door Glass, Assy (White)
12	W10401225 Whirlpool Oven Outer Door Glass
13	Handle, Door (Black)
13	Handle, Door (White)
13	Door Handle (Stainless Steel)
14	WPW10132940 Whirlpool Dishwasher Screw
14	Bracket, Handle (L.Hand)
14	4455803 Whirlpool Oven Bracket
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	Glass, Inner
