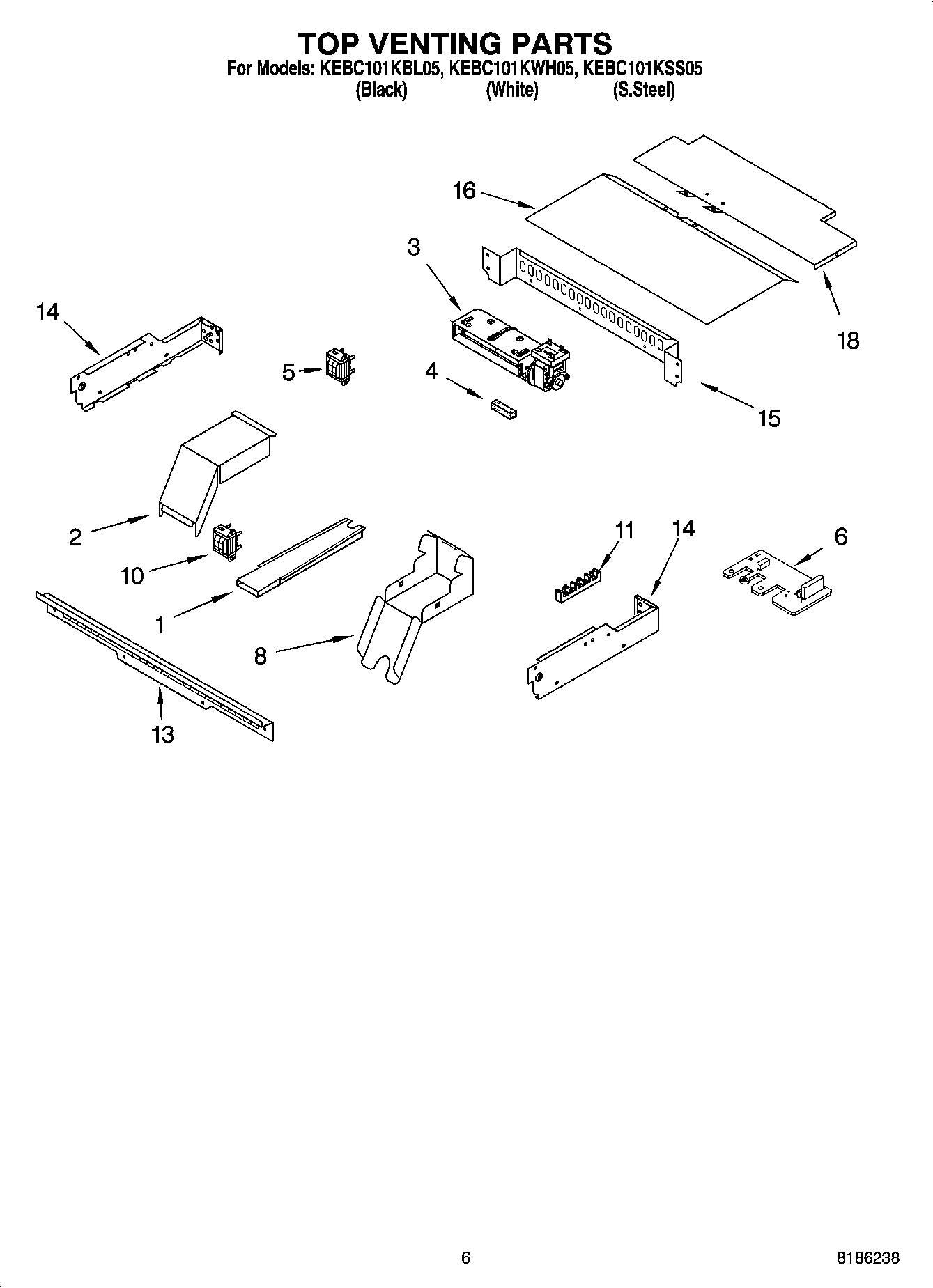

KEBC101KSS05 05 – TOP VENTING PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI81304A8
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	WPL 591014
	4451761 Whirlpool Oven Support Bracket
	WP4450952 Whirlpool Conduit
	261900 Whirlpool Microwave Spray
	WPL ARI81305A4
	Harness, Wire (Main)
	WPL ARI81302A1
	WPL ARI81303A1
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	Spacer, Harness
	4450800 Whirlpool Oven Screw
	350930 Whirlpool White Spray Paint
	4448664 Whirlpool Oven Mounting Bracket
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	Wire, 25“ Roll (White 14 GA.)
	WP112432 Whirlpool Nut Assembly
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WPW10339879 Whirlpool Wire Tie
	285006 Whirlpool Spray
	72032 Whirlpool Touch Up Paint Black
	WP4448950 Whirlpool Screw
	WP482338 Whirlpool Refrigerator Adhesive
	4452400 Whirlpool Microwave Wire Harness
	814381 Whirlpool Pin
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	Blower
3	WP4455352 Whirlpool Mounting Bracket
4	W10491987 Whirlpool Foam Seal
5	WP9760588 Whirlpool Transformer
6	WP4451985 Whirlpool Noise Filter Board
8	4455177 Whirlpool Oven Bottom Elbow
10	Transformer, Control
11	Screw
11	WP8203546 Whirlpool Terminal Block
13	Vent, Control Panel
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
18	WP4452367 Whirlpool Top Cover
