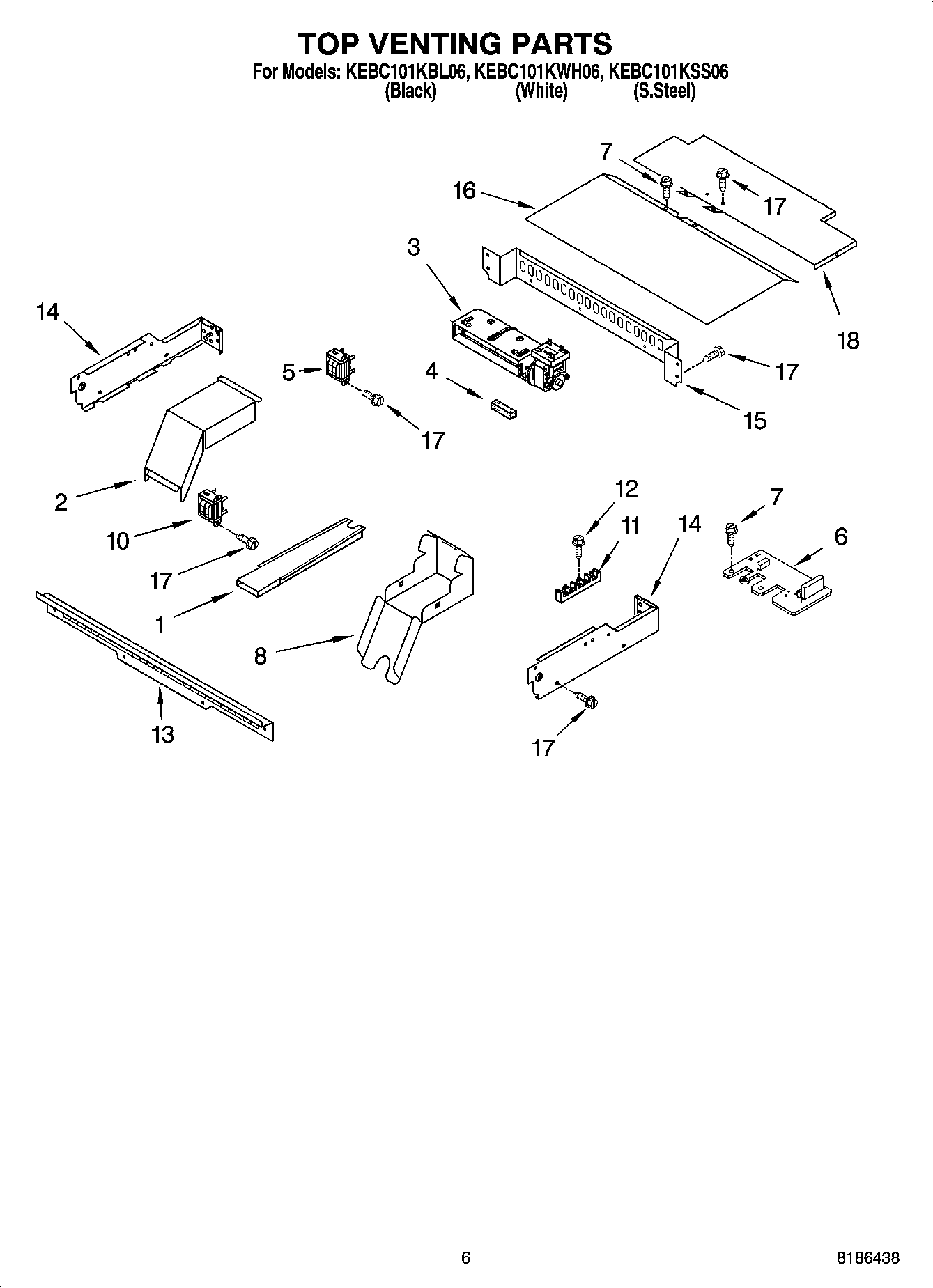

KEBC101KWH06 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI81340A4
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Door, Complete (White)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	WPL 591014
	4451761 Whirlpool Oven Support Bracket
	WP4450952 Whirlpool Conduit
	261900 Whirlpool Microwave Spray
	Harness, Wire (Main)
	Door, Complete (Black)
	S.Steel
	ADHES
	WPL ARI81338A8
	WPL ARI81339A5
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	242831 Whirlpool Oven Wire
	WPW10339879 Whirlpool Wire Tie
	4450800 Whirlpool Oven Screw
	4448664 Whirlpool Oven Mounting Bracket
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	WP112432 Whirlpool Nut Assembly
	WP4449809 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
	285006 Whirlpool Spray
	350930 Whirlpool White Spray Paint
	Spacer, Harness
	4452400 Whirlpool Microwave Wire Harness
	WP4448950 Whirlpool Screw
	814381 Whirlpool Pin
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WPW10176670 Whirlpool Blower
4	W10491987 Whirlpool Foam Seal
5	WP9760588 Whirlpool Transformer
6	WP4451985 Whirlpool Noise Filter Board
8	4455177 Whirlpool Oven Bottom Elbow
10	Transformer, Control
11	WP8203546 Whirlpool Terminal Block
12	Screw
13	Vent, Control Panel
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	WP4450551 Whirlpool Top Cabinet
18	WP4452367 Whirlpool Top Cover
