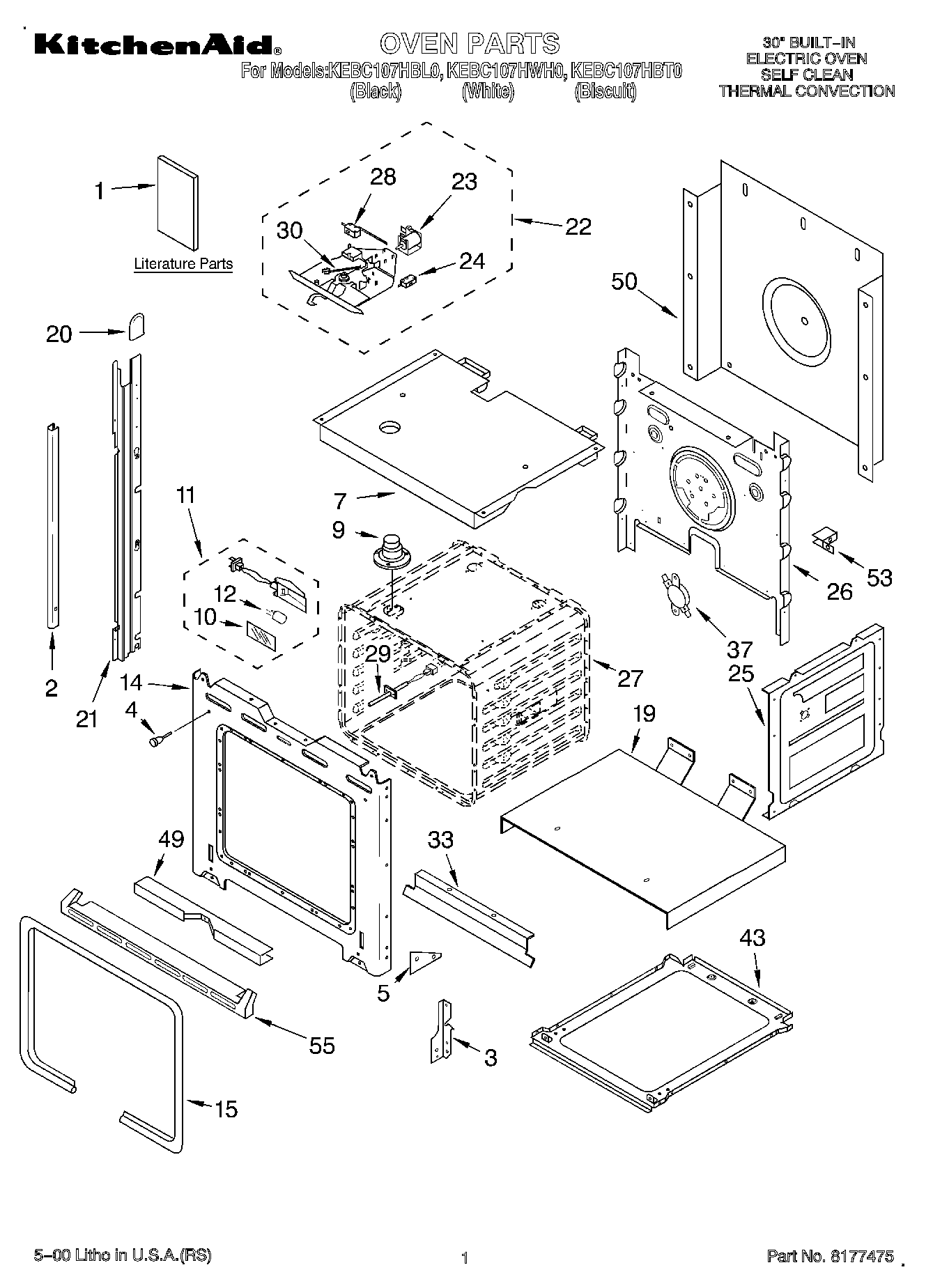

KEBC107HBT0 01 – OVEN, LITERATURE

Products

Position	Product
1	Safer Cooking Tips
1	Literature Parts (Easy Set Guide)
1	Literature Parts (Installation/ MWO Trim Kit)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Installation/ Undercounter)
1	Literature Parts (Cookbook (T/C Oven))
1	Literature Parts (Installation Instructions)
1	Literature Parts (Use & Care Guide)
2	4455377 Whirlpool Oven Trim
2	Trim, Side Left (Black)
2	Trim, Side (RH White)
2	Trim, Side (LH White)
2	Trim, Side (Left Hand) (Biscuit)
2	Trim, Side (Right Hand) (Biscuit)
3	Reciever, Hinge (Left Hand)
3	Reciever, Hinge (Right Hand)
4	4448520 Whirlpool Oven Bumper
5	WP4455509 Whirlpool Support Bracket
7	Top, Chassis
9	W10861715 Whirlpool Vent Tube
10	Lens, Light
11	4449748 Whirlpool Oven Screw
11	WP4448972 Whirlpool Oven Light
12	WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14	Screw
14	WP4450118 Whirlpool Nut
14	Frame, Front
15	W11675844 Whirlpool Oven Gasket
19	Support, Insulation
20	Cap, Spacer
21	814372 Whirlpool Oven Rail Mount
21	WP4448444 Whirlpool Grommet
21	814371 Whirlpool Oven Rail Mount
22	Latch Assembly
23	Solenoid
24	Microswitch N.C.
25	Side, Chassis (R.H. & L.H.)
26	Back, Chassis
27	Liner, Oven (Not a Serviceable Part)
28	Microswitch
29	Sensor
30	Spring, Latch
33	9760677 Whirlpool Oven Vent Deflector
37	WP9759242 Whirlpool Thermostat
43	WPL 4455530
49	WP4448933 Whirlpool Retainer
49	WP4449154 Whirlpool Screw
50	WP4451747 Whirlpool Rear Cover
53	WPL 4449845
53	WP4449809 Whirlpool Screw
55	4452152 Whirlpool Oven Mounting Bracket
55	WPL 4450365
55	WPL 4455447
55	WPL 4455445
55	W11684730 Whirlpool Insulation
55	WPL 4455443
