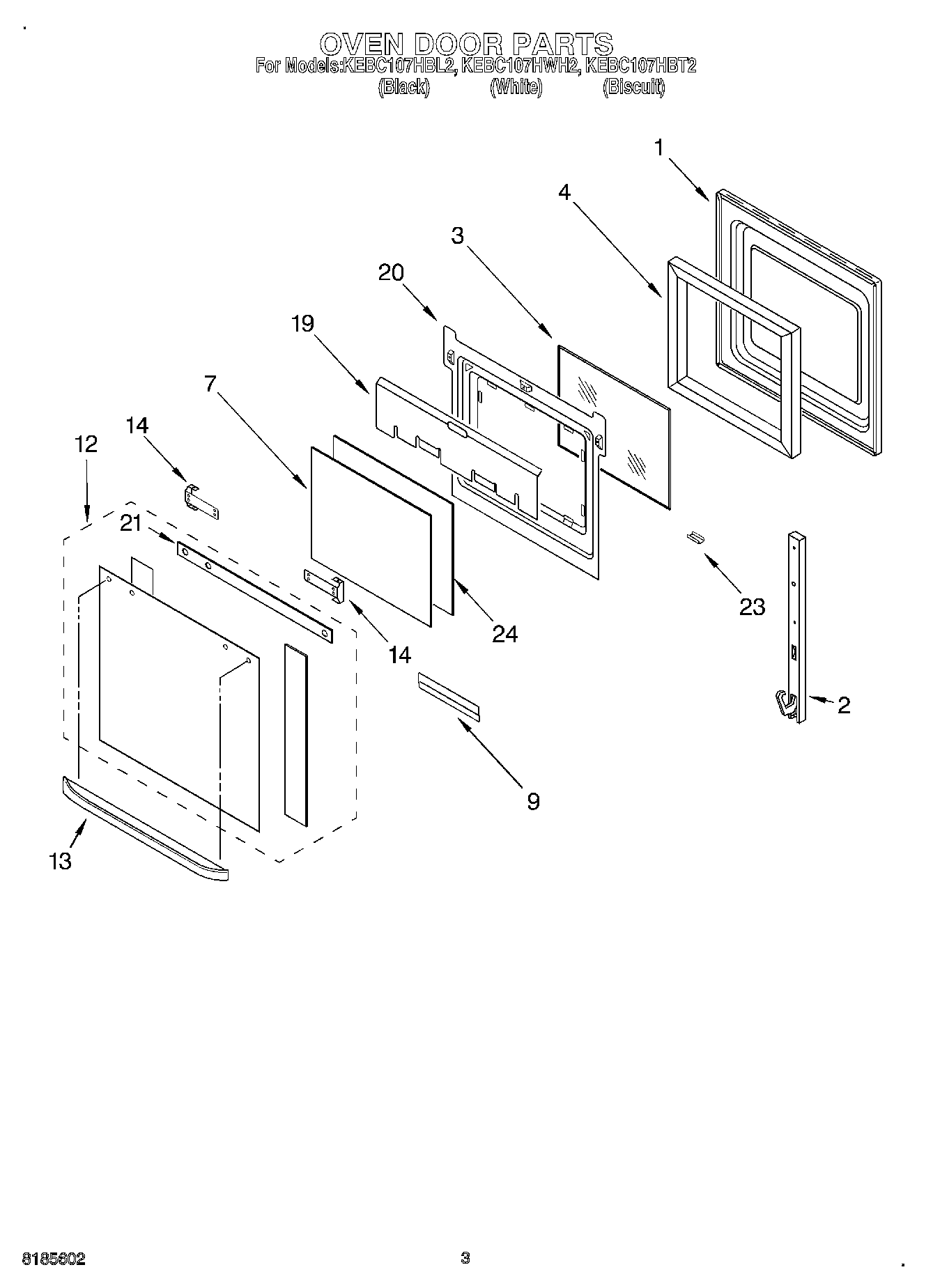

KEBC107HBT2 02 – OVEN DOOR

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP4449743 Whirlpool Screw
2	WP4455526 Whirlpool Door Hinge
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
12	Door Glass, Assy (Black)
12	Door Glass, Assy (White)
12	Door Glass, Assy (Biscuit)
13	Handle, Door (Biscuit)
13	Handle, Door (Black)
13	Handle, Door (White)
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle Stainless Steel Model (Left Hand)
14	Screw
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Door Top
23	Clip, Retainer (White Model)
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (Black Model)
24	Glass, Inner
