KEBC107HBT3 04 – CONTROL PANEL

KEBC107HBT3 04 – CONTROL PANEL

Written by

in

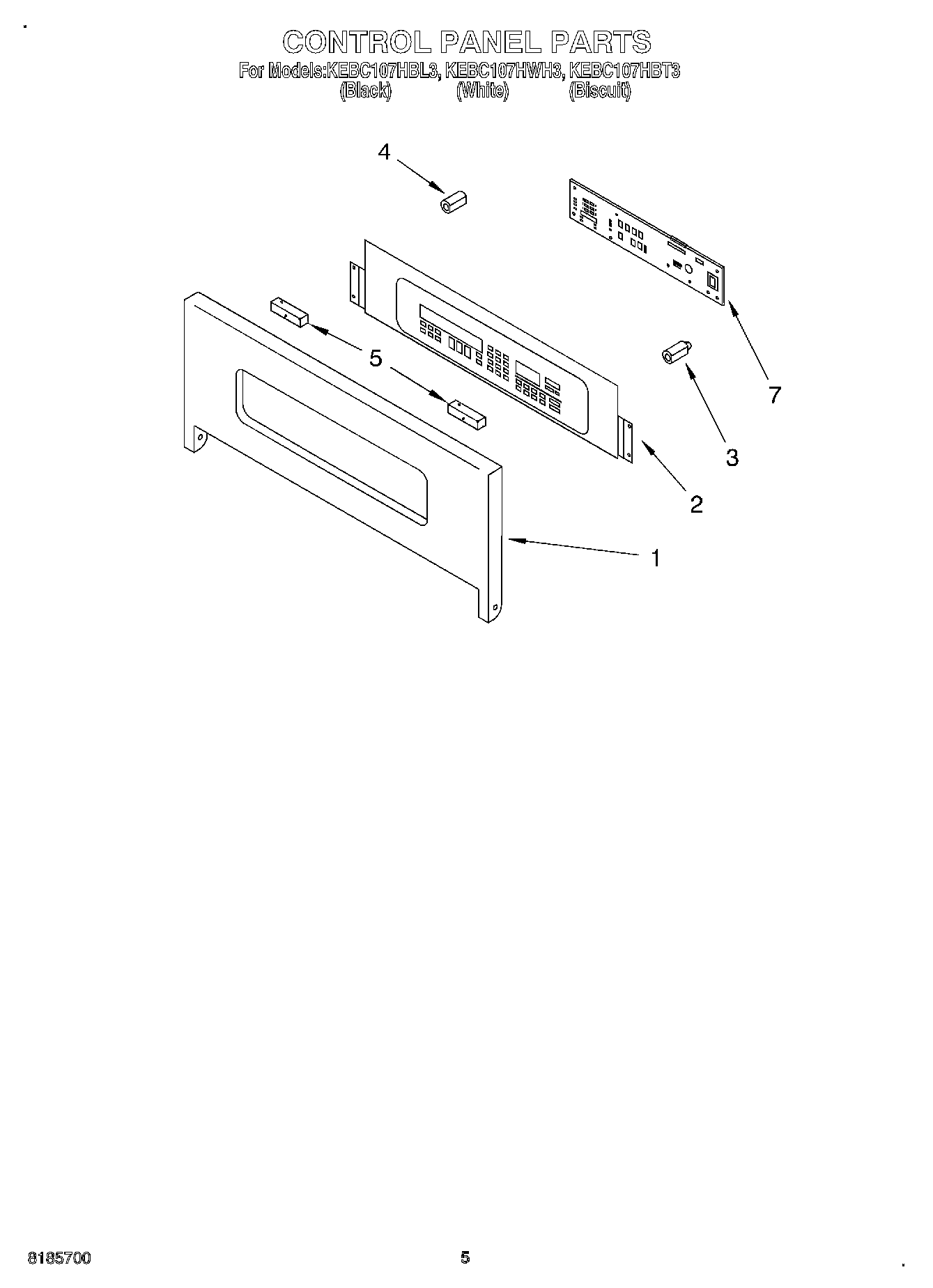

KEBC107HBT3 04 – CONTROL PANEL

Products

Position	Product
1	Panel, Control (White)
1	Panel, Control (Biscuit)
1	Panel, Control (Black)
2	Switch, Membrane (White)
2	Switch, Membrane (Black)
2	Switch, Membrane (Biscuit)
3	Insulation, Board
4	Insulation, Board Support
5	Spacer, Foam
7	Microcomputer
7	Screw
