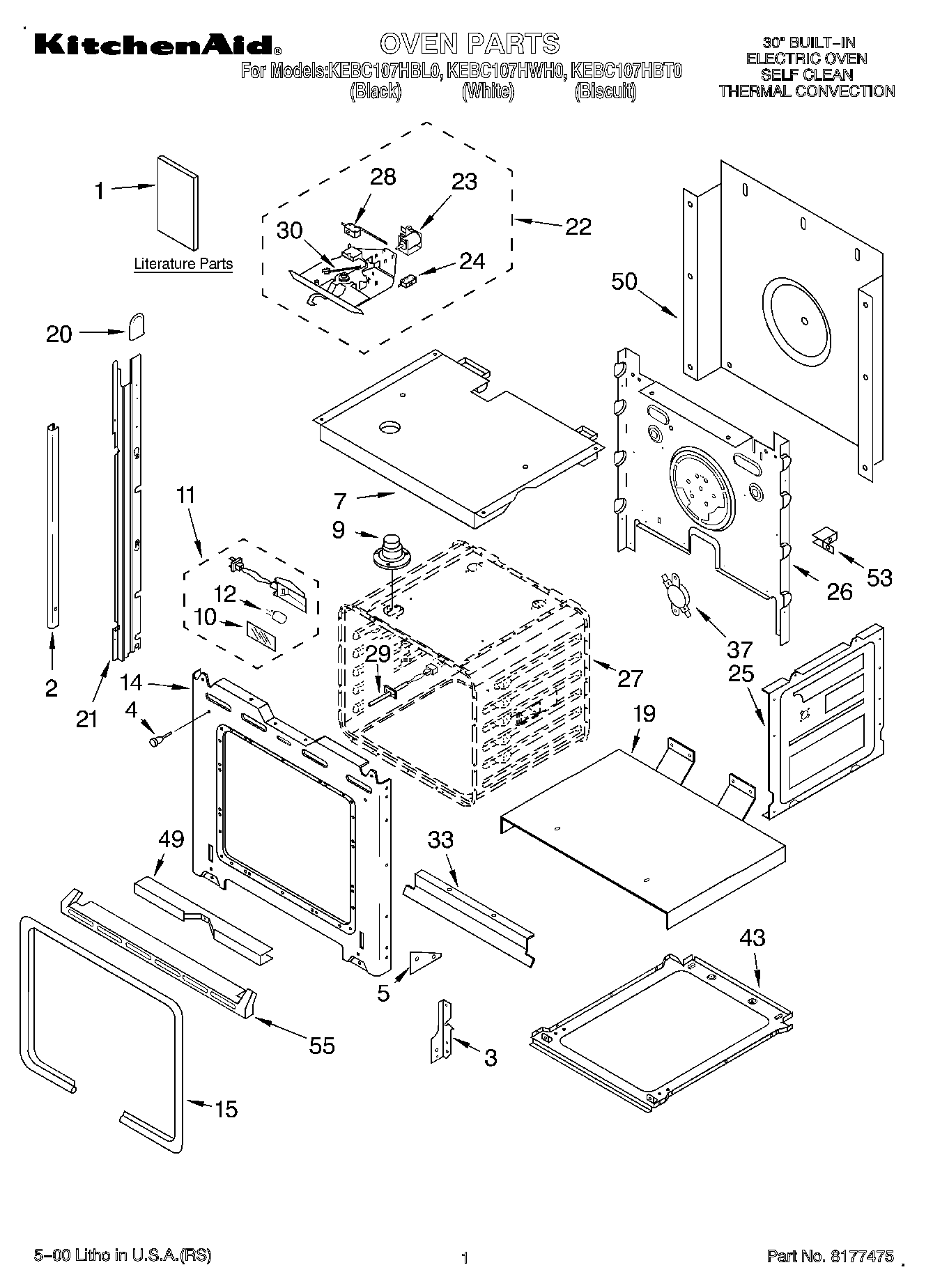

KEBC107HWH0 01 – OVEN, LITERATURE

Products

PositionProduct
1Safer Cooking Tips
1Literature Parts (Easy Set Guide)
1Literature Parts (Installation/ MWO Trim Kit)
1Literature Parts (Tech Sheet)
1Literature Parts (Installation/ Undercounter)
1Literature Parts (Cookbook (T/C Oven))
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
24455377 Whirlpool Oven Trim
2Trim, Side Left (Black)
2Trim, Side (RH White)
2Trim, Side (LH White)
2Trim, Side (Left Hand) (Biscuit)
2Trim, Side (Right Hand) (Biscuit)
3Reciever, Hinge (Left Hand)
3Reciever, Hinge (Right Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
7Top, Chassis
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Screw
14WP4450118 Whirlpool Nut
14Frame, Front
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21814372 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814371 Whirlpool Oven Rail Mount
22Latch Assembly
23Solenoid
24Microswitch N.C.
25Side, Chassis (R.H. & L.H.)
26Back, Chassis
27Liner, Oven (Not a Serviceable Part)
28Microswitch
29Sensor
30Spring, Latch
339760677 Whirlpool Oven Vent Deflector
37WP9759242 Whirlpool Thermostat
43WPL 4455530
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
53WPL 4449845
53WP4449809 Whirlpool Screw
554452152 Whirlpool Oven Mounting Bracket
55WPL 4450365
55WPL 4455447
55WPL 4455445
55W11684730 Whirlpool Insulation
55WPL 4455443
