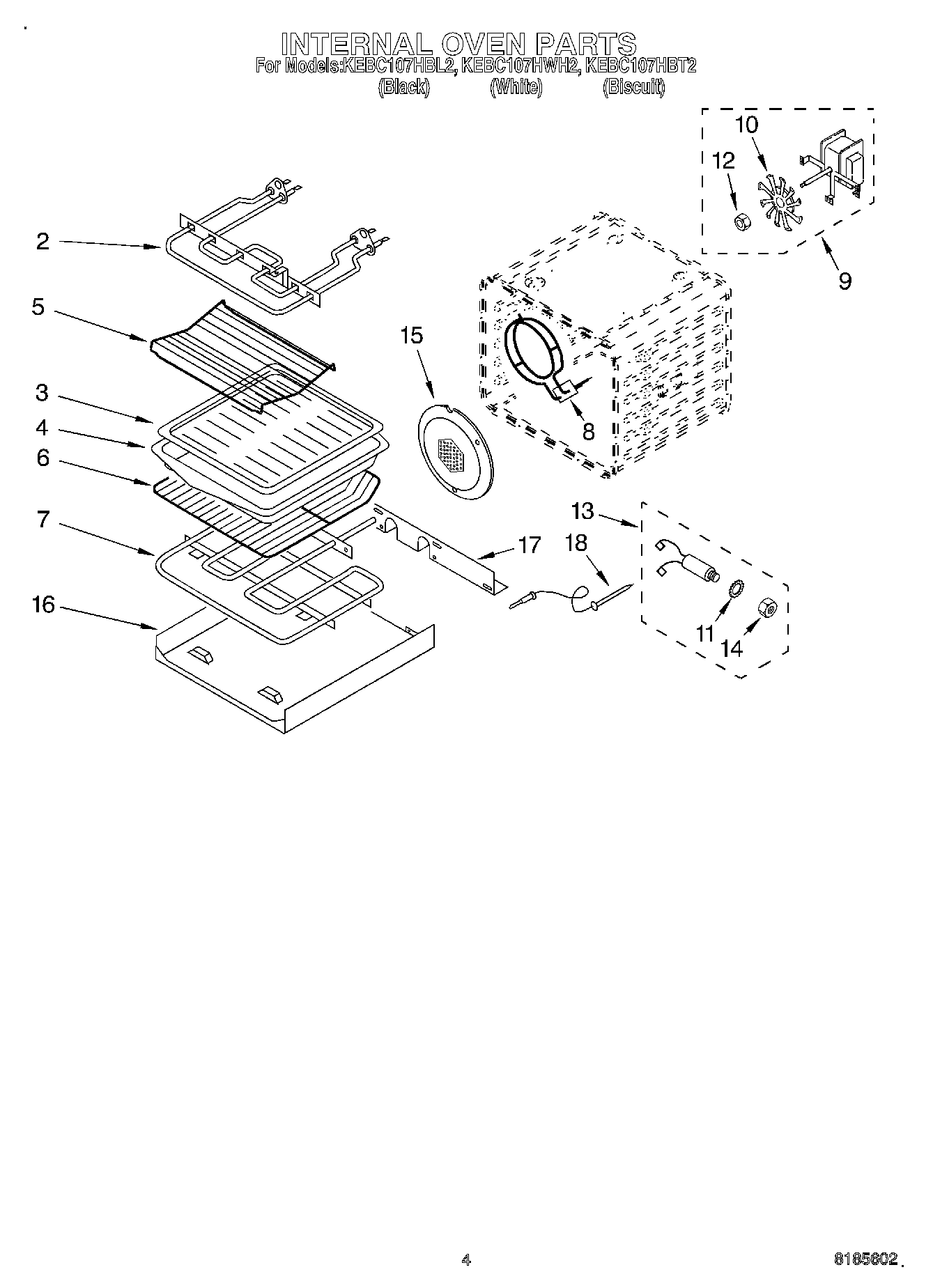

KEBC107HWH2 03 – INTERNAL OVEN

KEBC107HWH2 03 – INTERNAL OVEN

Written by

in

KEBC107HWH2 03 – INTERNAL OVEN

Products

PositionProduct
2WPW10207400 Whirlpool Broil Element
34396923 Whirlpool Broil Pan Set Gray Porcelain
5Rack, Roasting
6WPW10179152 Whirlpool Rack Oven
74451175 Whirlpool Bake Element
8WP9760769 Whirlpool Element Assembly
9Motor Convection
10WP4452226 Whirlpool Convection Fan
11WP9755547 Whirlpool Lockwasher
12Nut
138186589 Whirlpool Jack Probe
14WP9755546 Whirlpool Locknut
15WP4449154 Whirlpool Screw
15WPW10160821 Whirlpool Fan Cover
16Tray, Hidden Bake
174450039 Whirlpool Oven Access Cover
17WP4449809 Whirlpool Screw
18WP9755542 Whirlpool Oven Meat Probe
