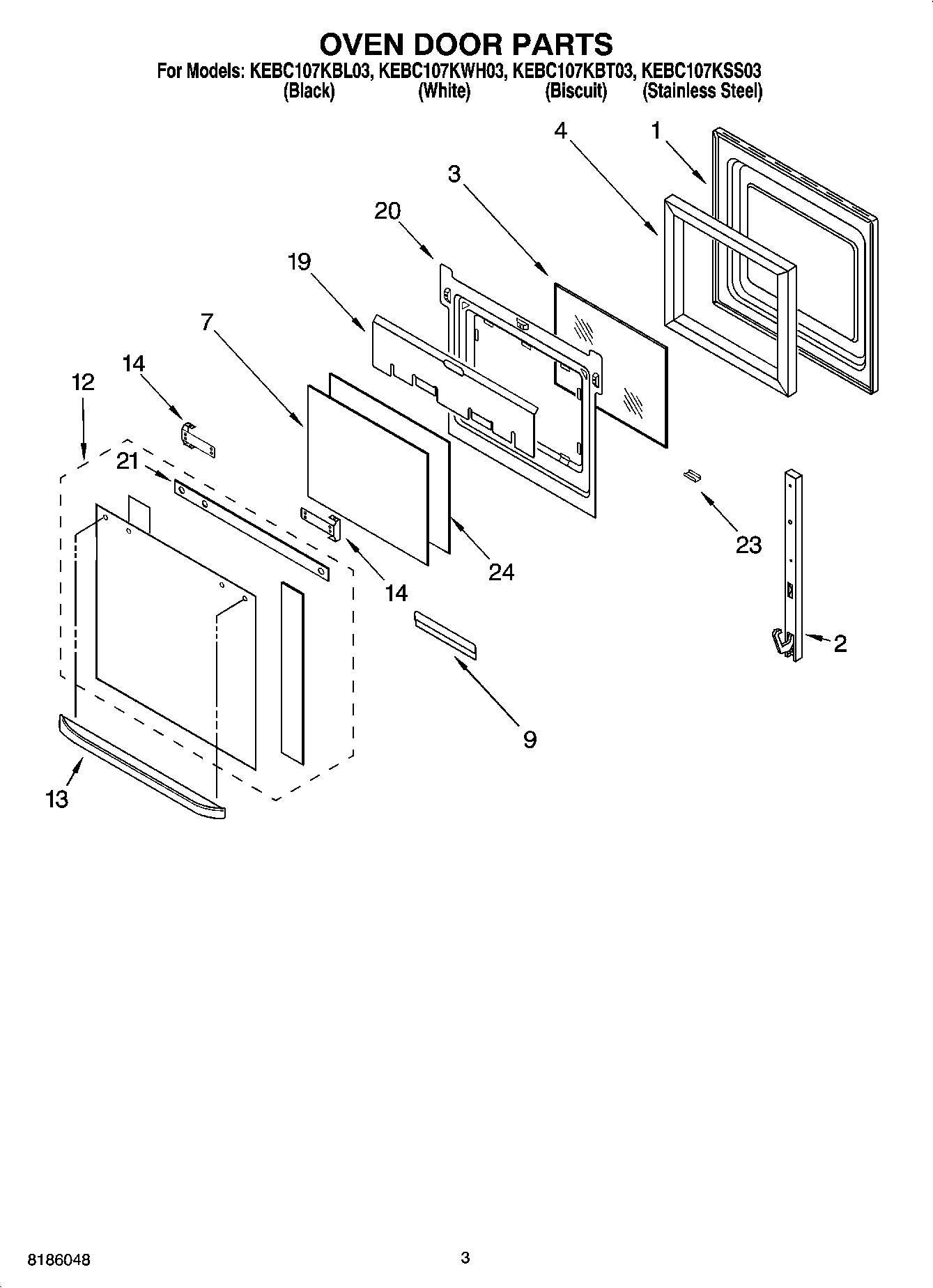

KEBC107KBL03 02 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760578 Whirlpool Oven Left Door Hinge
2	HINGE-DOOR
2	WP9760577 Whirlpool Oven Right Door Hinge
2	WP4449743 Whirlpool Screw
2	HINGE-DOOR LH/SS DOOR SPRING
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
7	WP4449263 Whirlpool Inner Door Glass
9	Retainer, Glass
12	Door Glass, Assy (Biscuit)
12	W10401225 Whirlpool Oven Outer Door Glass
12	Door Glass, Assy (Black)
12	Door Glass, Assy (White)
13	Handle, Door (Biscuit)
13	Door Handle (Stainless Steel)
13	Handle, Door (Black)
13	Handle, Door (White)
14	WPW10132940 Whirlpool Dishwasher Screw
14	Bracket, Handle Stainless Steel Model (Left Hand)
14	Bracket, Handle (L.Hand)
14	4455803 Whirlpool Oven Bracket
19	Shield, Heat
20	Retainer, Glass
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
23	Retainer, Glass-Clip (Stainless Steel)
24	Glass, Inner
