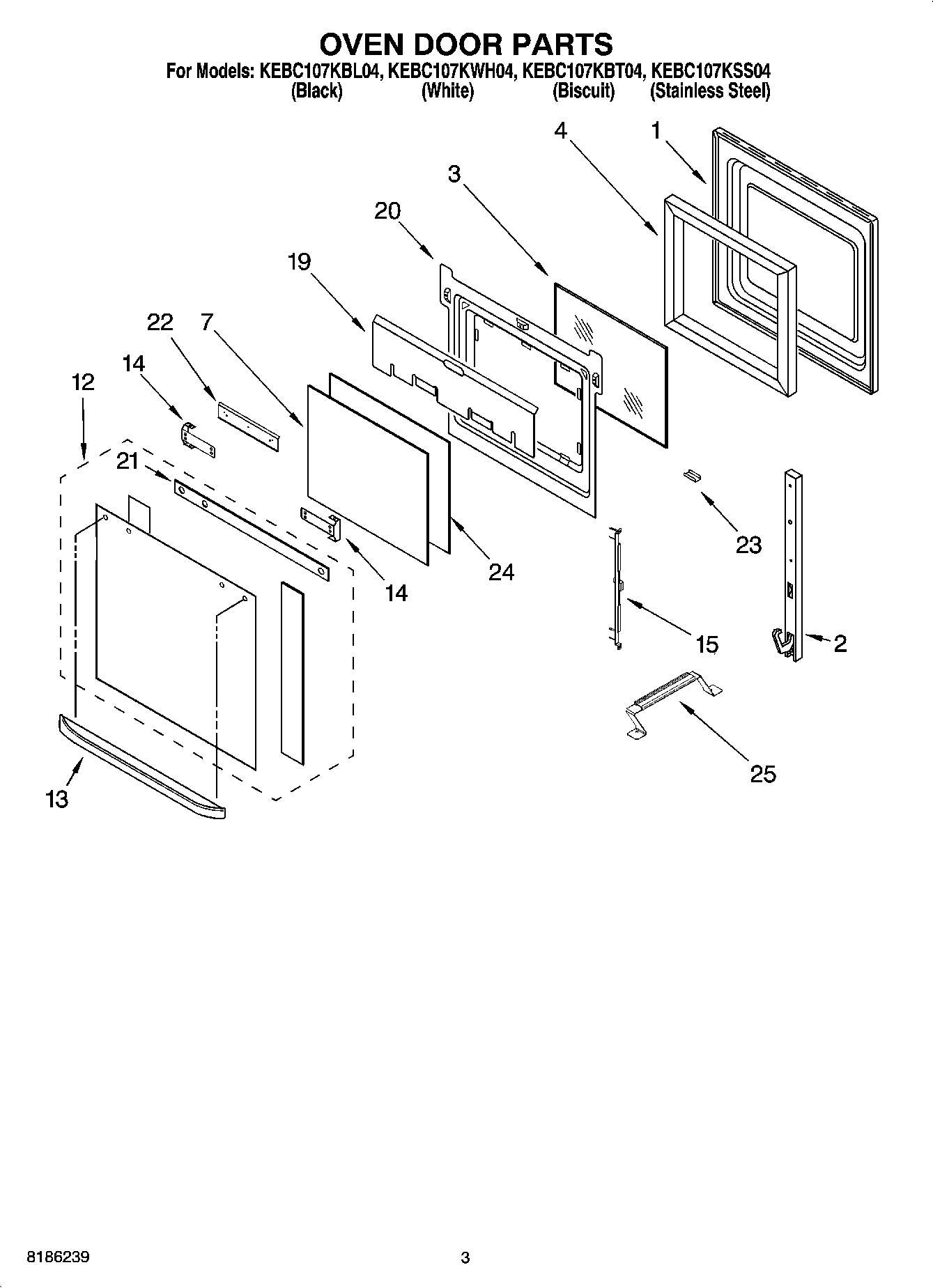

KEBC107KBL04 02 – OVEN DOOR PARTS

Products

Position	Product
1	WP9759413 Whirlpool Door Liner
2	WP9760578 Whirlpool Oven Left Door Hinge
2	HINGE-DOOR LH/SS DOOR SPRING
2	WP4449743 Whirlpool Screw
2	WP9760577 Whirlpool Oven Right Door Hinge
2	HINGE-DOOR
3	WP4449259 Whirlpool Glass Window
4	WP4451722 Whirlpool Door Insulation Assembly
7	WP9759225 Whirlpool Inner Door Glass
12	Door Glass, Assy (Biscuit)
12	Door Glass, Assy (Black)
12	Door Glass, Assy (White)
12	W10401225 Whirlpool Oven Outer Door Glass
13	Door Handle (Stainless Steel)
13	Handle, Door (Biscuit)
13	Handle, Door (White)
13	Handle, Door (Black)
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle Stainless Steel Model (Left Hand)
14	Bracket, Handle (L.Hand)
14	WPW10132940 Whirlpool Dishwasher Screw
15	WP9759229 Whirlpool Mounting Bracket
19	Shield, Heat
20	WP4457132 Whirlpool Retainer
20	WP4449809 Whirlpool Screw
21	Seal, Door Top
22	4457114 Whirlpool Oven Heat Shield
23	RETAINER,GLASS CLIP (BISCUIT)
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
23	Retainer, Glass-Clip (Stainless Steel)
24	Glass, Inner
25	Bracket (3rd Glsss)
