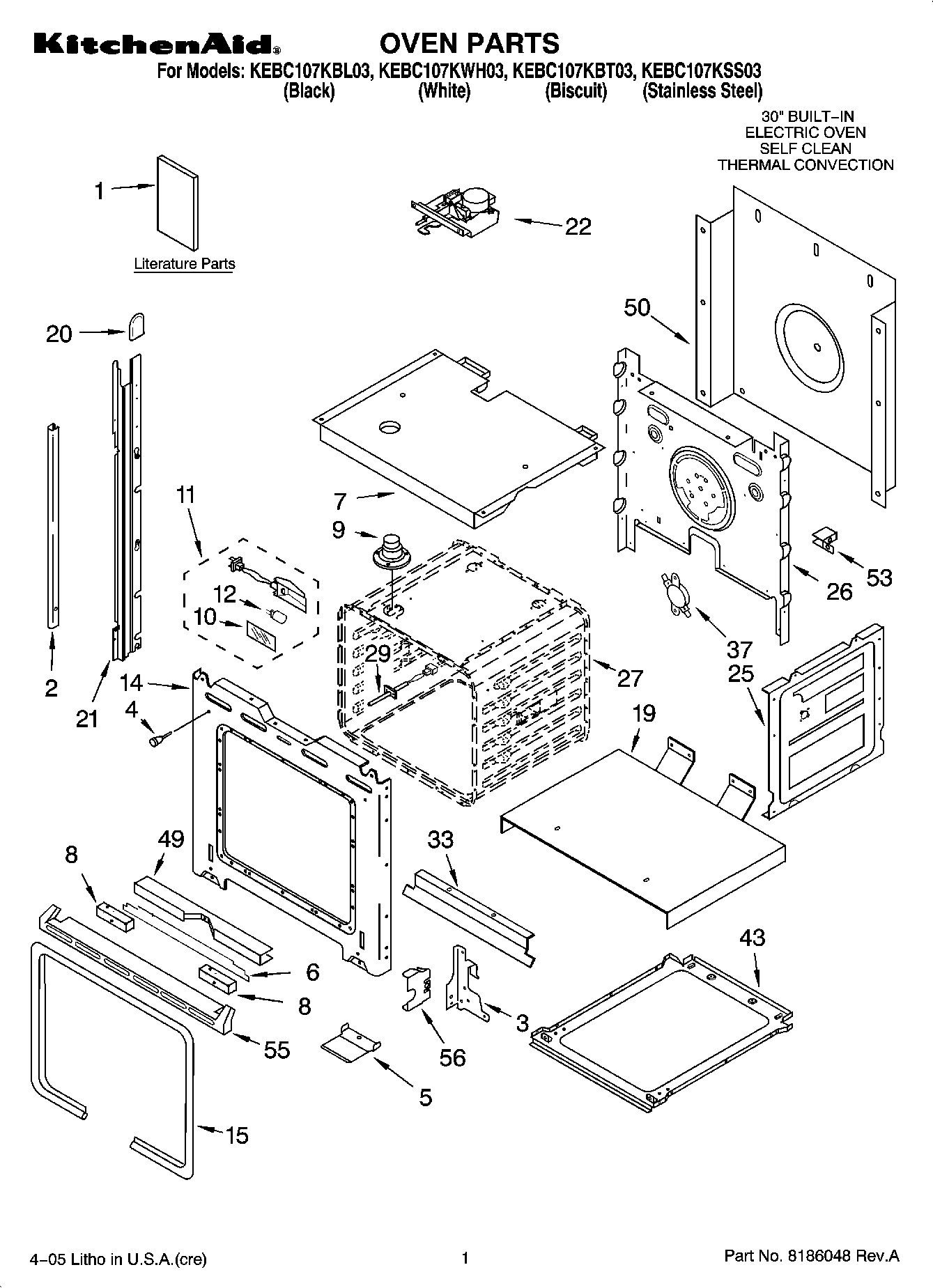

KEBC107KWH03 01 – OVEN PARTS

KEBC107KWH03 01 – OVEN PARTS

Written by

in

KEBC107KWH03 01 – OVEN PARTS

Products

PositionProduct
1Installation/ Undercounter
1Installation Instructions
1Use & Care Guide (Oven)
1Safe Cooking Tips
1Tech Sheet
1Installation, MWO Trim Kit
1Easy Set Guide
24455377 Whirlpool Oven Trim
2W10144984 Whirlpool Trim
2Trim, Side Left (Black)
2Trim, Side (RH White)
2WPW10144983 Whirlpool Trim
2Trim, Side (Right Hand) (Biscuit)
2Trim, Side (Left Hand) (Biscuit)
2WP8281236 Whirlpool Screw
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
54455807 Whirlpool Oven Vent Deflector
6Insulation Bottom Vent
7Top, Chassis
8Spacer, Foam
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
114449748 Whirlpool Oven Screw
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Frame, Front
14WP4450118 Whirlpool Nut
14Screw
15W11675844 Whirlpool Oven Gasket
19Support, Insulation
20Cap, Spacer
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
22WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
339760677 Whirlpool Oven Vent Deflector
37WP9759242 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
53WPL 4449845
53WP4449809 Whirlpool Screw
55WPL 4455447
55WPL 4455445
55WPL 4455443
55WPL 4455147
564452152 Whirlpool Oven Mounting Bracket
56WPL 4450365
56W11684730 Whirlpool Insulation
56WPL ARI81423A2
