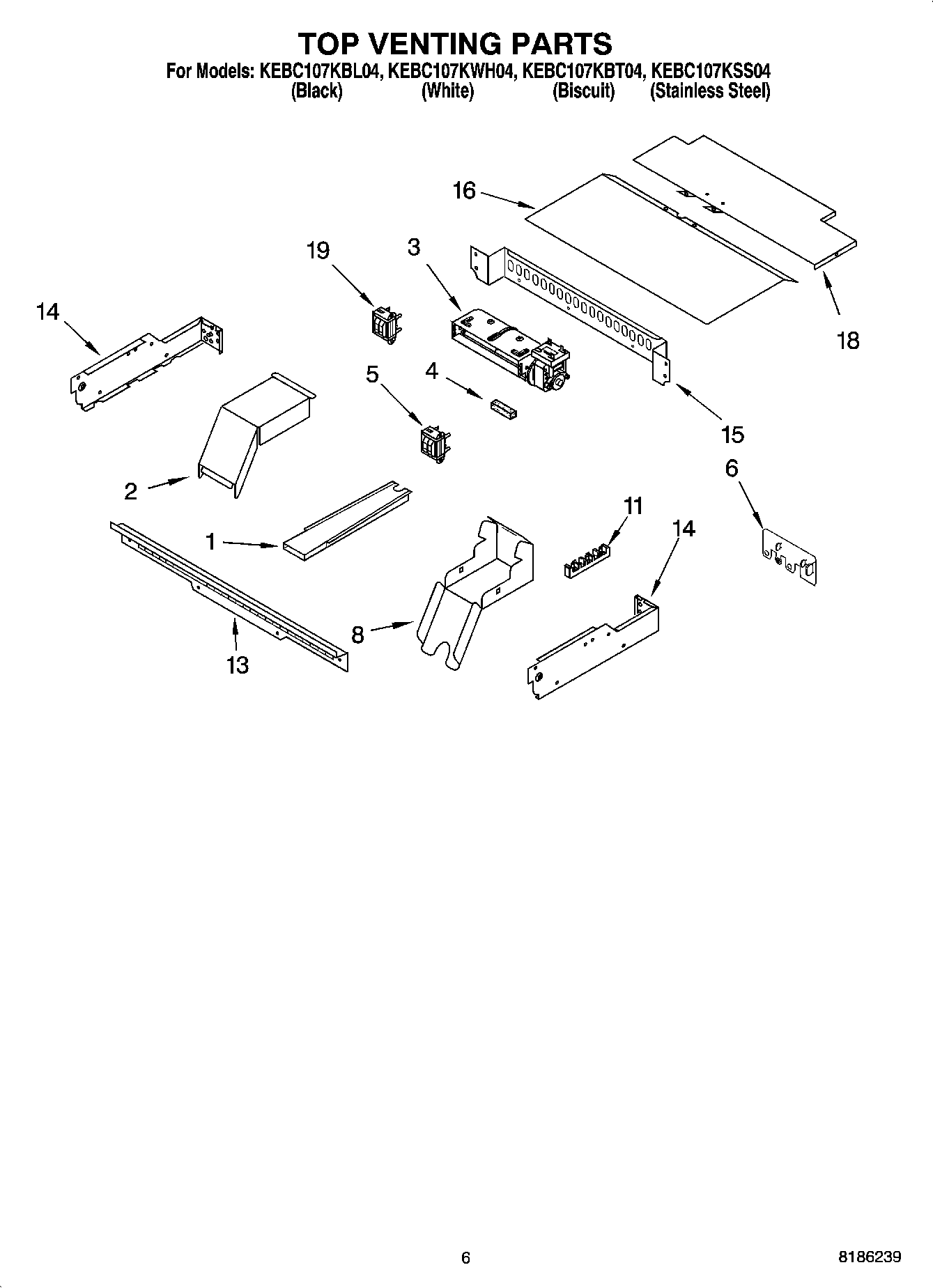

KEBC107KWH04 05 – TOP VENTING PARTS, OPTIONAL PARTS

KEBC107KWH04 05 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

KEBC107KWH04 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI81432A2
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 200 c Brown)
1
WPL ARI81431A5
WPL ARI81430A9
WPL 8301847
WPL ARI81433A3
261900 Whirlpool Microwave Spray
WP4450952 Whirlpool Conduit
4451761 Whirlpool Oven Support Bracket
WPL 591014
242831 Whirlpool Oven Wire
Spacer, Harness
4452400 Whirlpool Microwave Wire Harness
Wire, 25“ Roll (White 14 GA.)
350930 Whirlpool White Spray Paint
72017 Whirlpool Appliance Touch-Up Paint White
Wire, 25` Roll (Red 14 Ga.)
WP4449809 Whirlpool Screw
4392899 Whirlpool Biscuit Touch-Up Paint
Wire, 25` Roll (Black 14 Ga.)
4392901 Whirlpool Biscuit Spray Paint
WP112432 Whirlpool Nut Assembly
4448664 Whirlpool Oven Mounting Bracket
4450800 Whirlpool Oven Screw
WPW10339879 Whirlpool Wire Tie
WP4448950 Whirlpool Screw
285006 Whirlpool Spray
72032 Whirlpool Touch Up Paint Black
814381 Whirlpool Pin
WP482338 Whirlpool Refrigerator Adhesive
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WPW10176670 Whirlpool Blower
4W10491987 Whirlpool Foam Seal
5WP9760588 Whirlpool Transformer
6WP4451985 Whirlpool Noise Filter Board
84455177 Whirlpool Oven Bottom Elbow
11Screw
11WP8203546 Whirlpool Terminal Block
13Vent, Control Panel
13WP3400832 Whirlpool Screw
14WP4449154 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
19Transformer, Control
