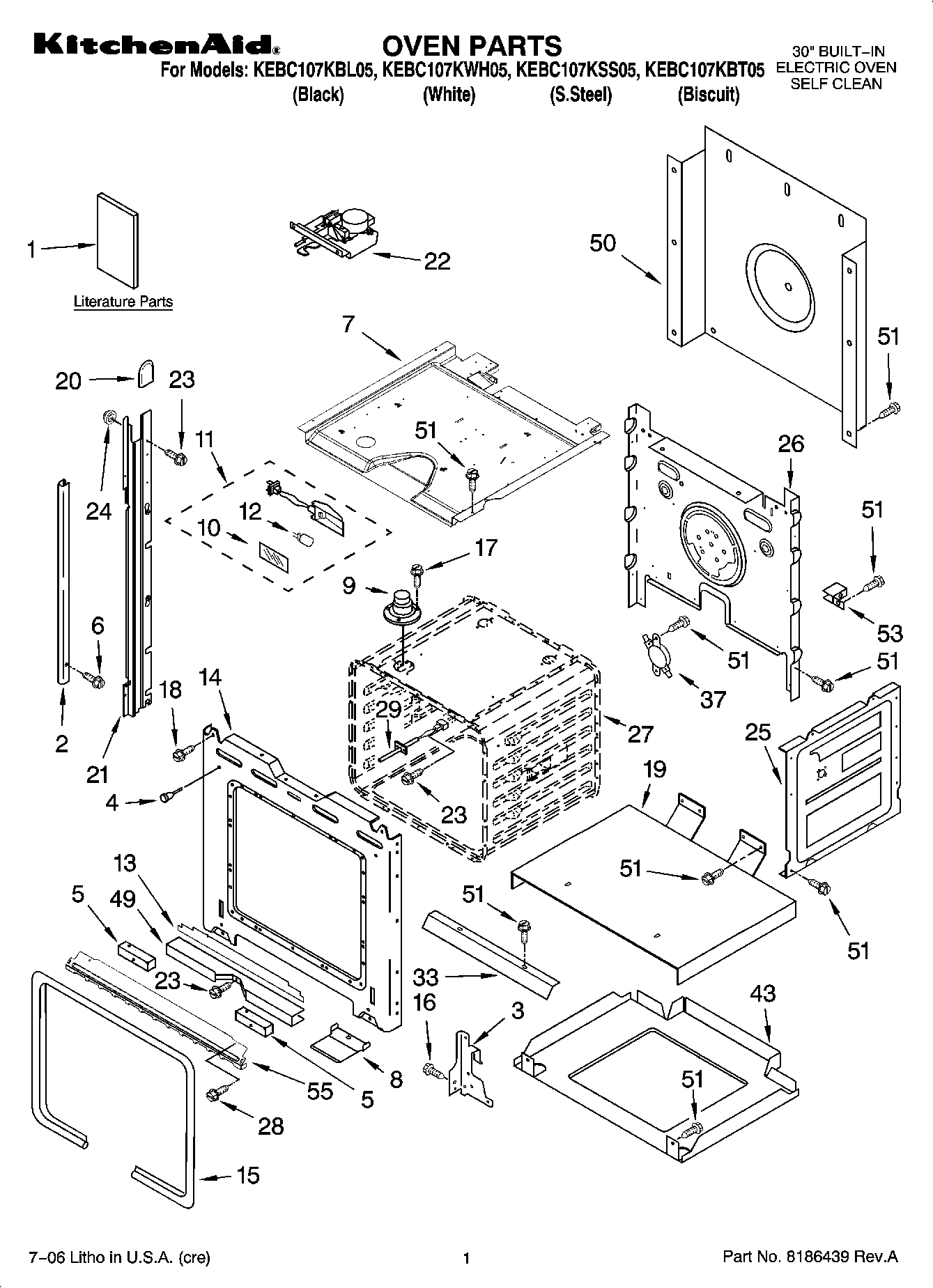

KEBC107KWH05 01 – OVEN PARTS

KEBC107KWH05 01 – OVEN PARTS

Written by

in

KEBC107KWH05 01 – OVEN PARTS

Products

PositionProduct
1Easy Set Guide
1Installation, MWO Trim Kit
1Tech Sheet
1Safe Cooking Tips (French)
1Safe Cooking Tips
1Installation Instructions
1Owners Manual
1Easy Set Guide (French)
1French
1Tech Sheet (Oven) (French)
1Installation Instructions (Undercounter, Oven)
2Trim, Side (RH White)
2W10144984 Whirlpool Trim
2Trim, Side (Left Hand) (Biscuit)
2Trim, Side (Right Hand) (Biscuit)
2Trim, Side Left (Black)
2WPW10144983 Whirlpool Trim
24455377 Whirlpool Oven Trim
2Trim, Side (LH White)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6WP8281236 Whirlpool Screw
7Top Chassis
8W10145009 Whirlpool Vent Deflector
84455807 Whirlpool Oven Vent Deflector
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation Bottom Vent
14Frame, Front
15W11675844 Whirlpool Oven Gasket
16WP4449743 Whirlpool Screw
17SCREW
18Screw
19Support, Insulation
20Cap, Spacer
21814372 Whirlpool Oven Rail Mount
21814371 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
23WP4449154 Whirlpool Screw
24WP4448444 Whirlpool Grommet
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
28WP3400832 Whirlpool Screw
29WPW10131825 Whirlpool Oven Temperature Sensor
339760677 Whirlpool Oven Vent Deflector
37WP9759242 Whirlpool Thermostat
43Base, Chassis
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WP4449809 Whirlpool Screw
53WPL 4449845
554452152 Whirlpool Oven Mounting Bracket
55WPL 4450365
55W11684730 Whirlpool Insulation
55WPL 4455447
55WPL 4455443
55WPL 4455147
55WPL 4455445
55WPL ARI81435A1
