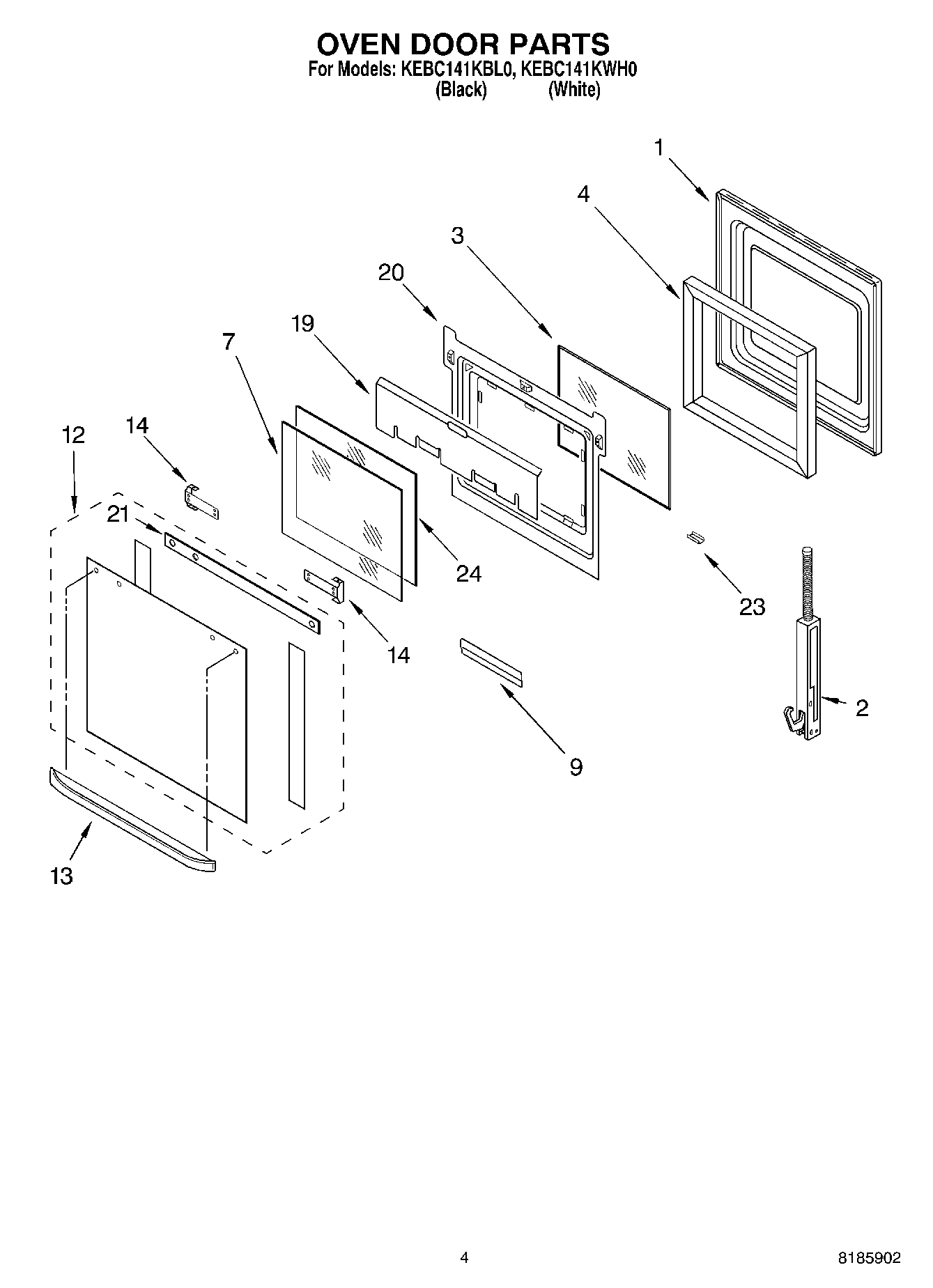

KEBC141KWH0 03 – OVEN DOOR

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	9760570 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
2	9760569 Whirlpool Door Hinge
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
7	Glass, Inner
9	Retainer, Glass
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (Black Model)
13	Door Handle (White)
13	Door Handle (Black)
14	Bracket, Handle Stainless Steel Model (Left Hand)
14	Screw
14	4455803 Whirlpool Oven Bracket
19	Shield, Heat
20	4457130 Whirlpool Oven Retainer
20	WP4449809 Whirlpool Screw
21	Seal, Door
23	Clip, Retainer (White Model)
23	Clip, Retainer (Black Model)
24	Glass, Inner
