KEBC147KBL0 02 – CONTROL PANEL
Written by
in

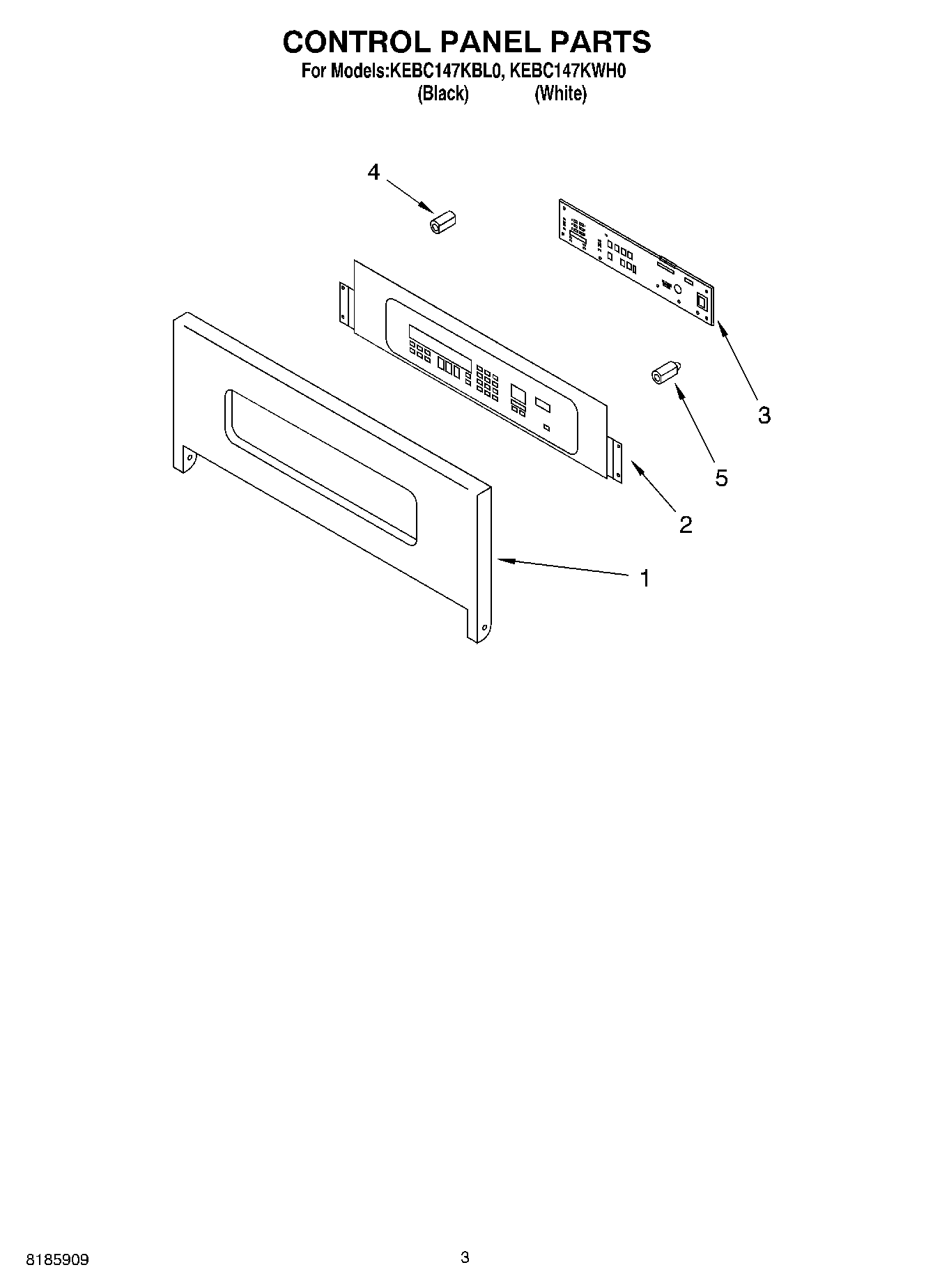

KEBC147KBL0 02 – CONTROL PANEL
Products
Position
Product
1
WPW10358920 Whirlpool Control Panel Assembly
1
Panel, Control (White Model)
2
Switch, Membrane (Black)
2
Switch, Membrane (White)
3
WP3400832 Whirlpool Screw
3
Screw
3
Microcomputer
4
Insulation, Board
5
Insulation, Board Support
←
