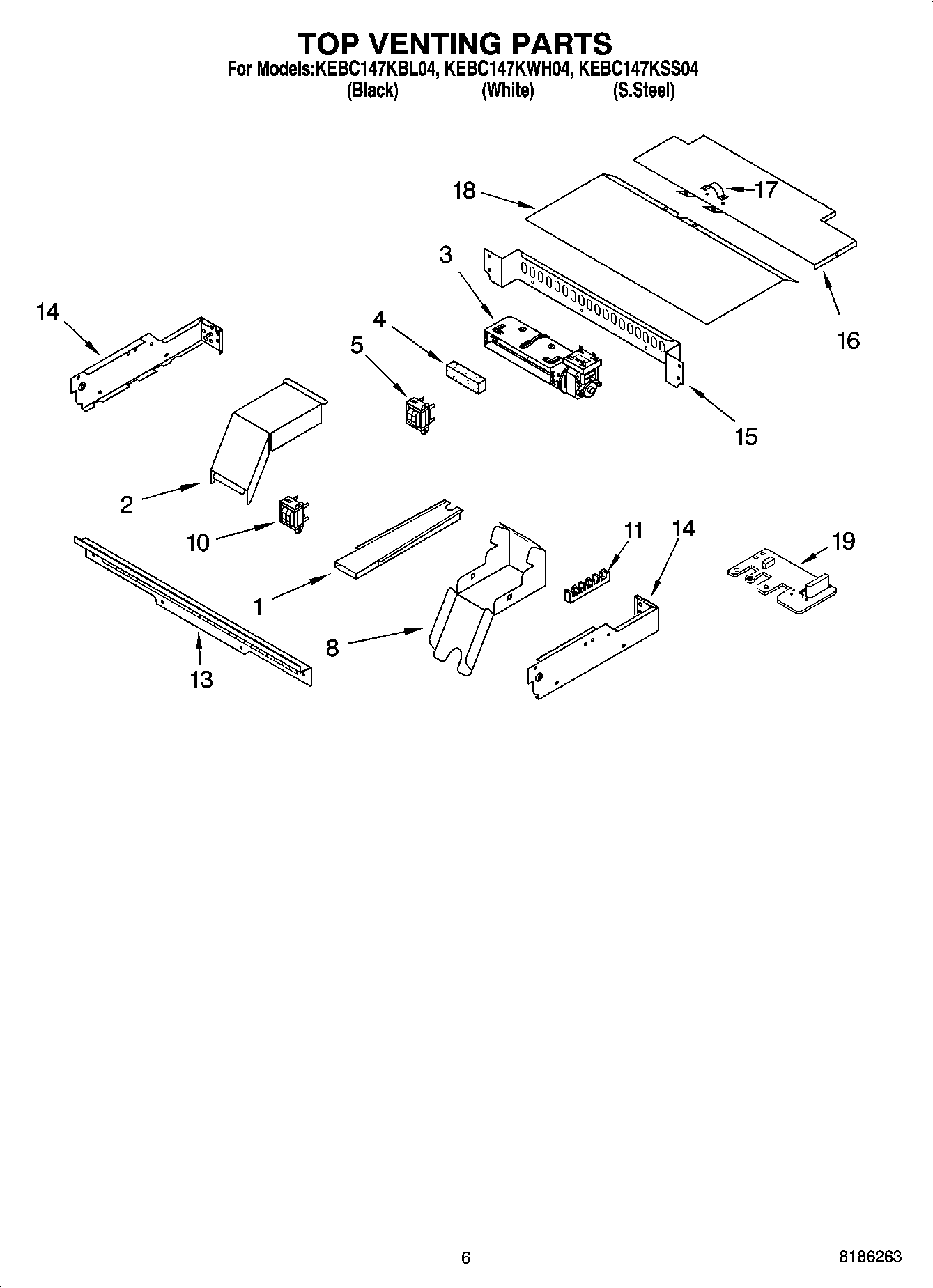

KEBC147KBL04 05 – TOP VENTING PARTS, OPTIONAL PARTS

KEBC147KBL04 05 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

KEBC147KBL04 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI81493A5
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 200 c Brown)
1
WPL ARI81492A7
WPL ARI81491A6
WPL 8301847
WPL ARI81494A5
261900 Whirlpool Microwave Spray
WP4450952 Whirlpool Conduit
4451761 Whirlpool Oven Support Bracket
WPL 591014
242831 Whirlpool Oven Wire
Spacer, Harness
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
4450800 Whirlpool Oven Screw
WP4449809 Whirlpool Screw
4448664 Whirlpool Oven Mounting Bracket
WP112432 Whirlpool Nut Assembly
Wire, 25` Roll (Black 14 Ga.)
Wire, 25“ Roll (White 14 GA.)
72032 Whirlpool Touch Up Paint Black
Wire, 25` Roll (Red 14 Ga.)
WP482338 Whirlpool Refrigerator Adhesive
350930 Whirlpool White Spray Paint
814381 Whirlpool Pin
WP4448950 Whirlpool Screw
72017 Whirlpool Appliance Touch-Up Paint White
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3Blower
3WP4455352 Whirlpool Mounting Bracket
4W10491987 Whirlpool Foam Seal
5WP9760588 Whirlpool Transformer
84455177 Whirlpool Oven Bottom Elbow
10Transformer, Control
11Screw
11WP8203546 Whirlpool Terminal Block
134448547 Whirlpool Oven Vent Control
13WP4450038 Whirlpool Screw
14WP4449154 Whirlpool Screw
14W10755214 Whirlpool Side Complete
14W10790240 Whirlpool Side Assembly Complete
15Back, Control
164450549 Whirlpool Oven Top Cover
18Cover, Top Front
19WP4451985 Whirlpool Noise Filter Board
