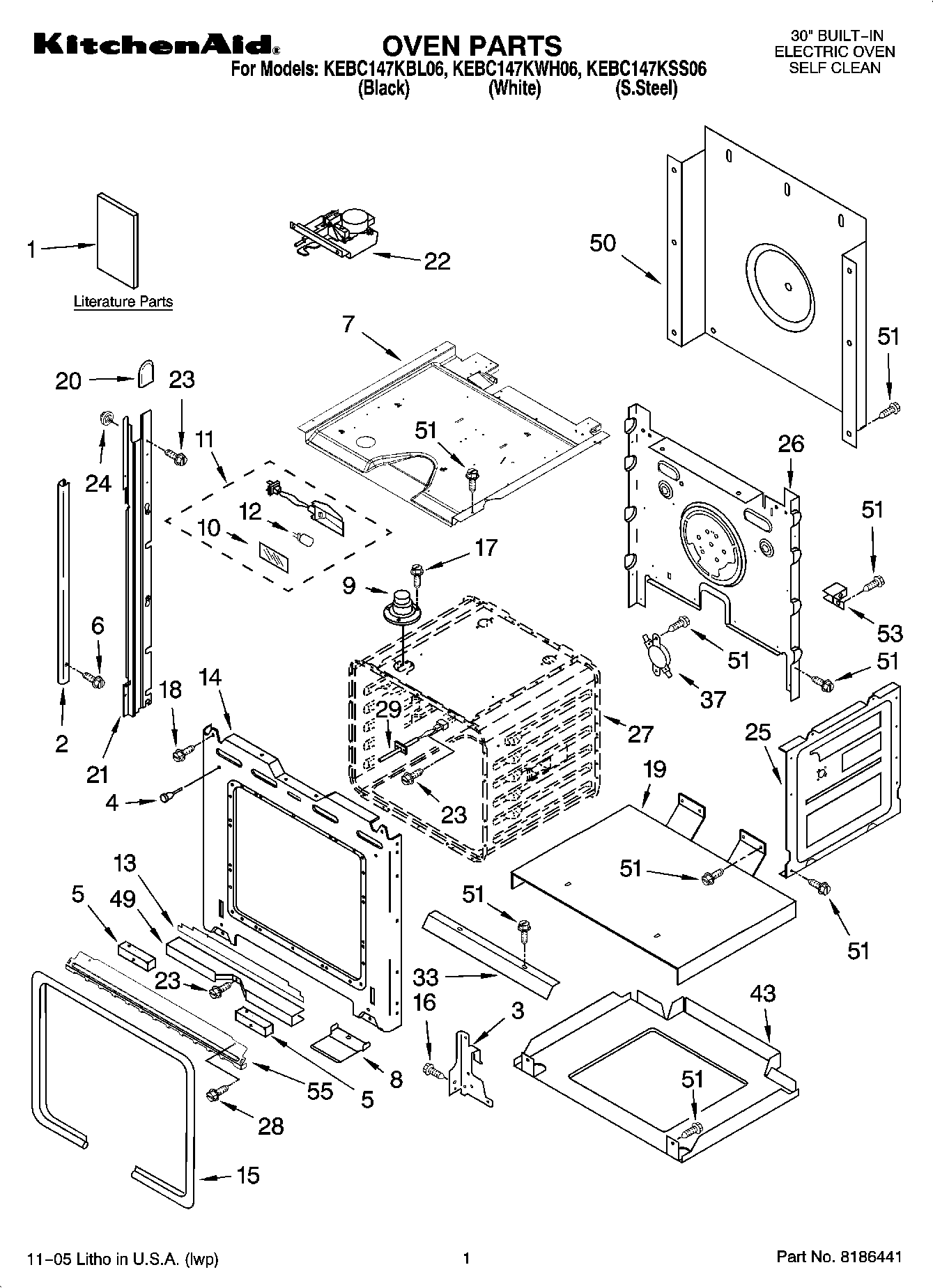

KEBC147KBL06 01 – OVEN PARTS

KEBC147KBL06 01 – OVEN PARTS

Written by

in

KEBC147KBL06 01 – OVEN PARTS

Products

PositionProduct
1Safe Cooking Tips (French)
1Tech Sheet
1Installation Instructions
1Easy Set Guide
1Owners Manual
1Installation, MWO Trim Kit
1Safe Cooking Tips
1Installation Instructions (Undercounter, Oven)
24455377 Whirlpool Oven Trim
2W10144984 Whirlpool Trim
2WPW10144983 Whirlpool Trim
2Trim, Side Left (Black)
2Trim, Side (RH White)
2Trim, Side (LH White)
3WP4455606 Whirlpool Right Hand Hinge
3WP4455605 Whirlpool Left Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
6WP8281236 Whirlpool Screw
74455863 Whirlpool Oven Top Assembly
84455807 Whirlpool Oven Vent Deflector
8W10145009 Whirlpool Vent Deflector
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WP4448972 Whirlpool Oven Light
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
13Insulation, Bottom Vent
149760754 Whirlpool Oven Front Frame
15WP4455380 Whirlpool Door Gasket
16WP4449743 Whirlpool Screw
17SCREW
18Screw
194451476 Whirlpool Support
20Cap, Spacer
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
23WP4449154 Whirlpool Screw
24WP4448444 Whirlpool Grommet
25W10782197 Whirlpool Side Panel
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not serviceable)
28WP3400832 Whirlpool Screw
29WPW10131825 Whirlpool Oven Temperature Sensor
33Deflector, Vent
37WP9759242 Whirlpool Thermostat
434450525 Whirlpool Oven Bottom Assembly
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WP4449809 Whirlpool Screw
53WPL 4449845
55WP4449314 Whirlpool Insulation
55Trim, Bottom (White)
55Trim, Bottom (Black)
55WP4450363 Whirlpool Insulation
554452152 Whirlpool Oven Mounting Bracket
55Trim, Bottom (S.Steel Model
55WPL ARI81502A3
