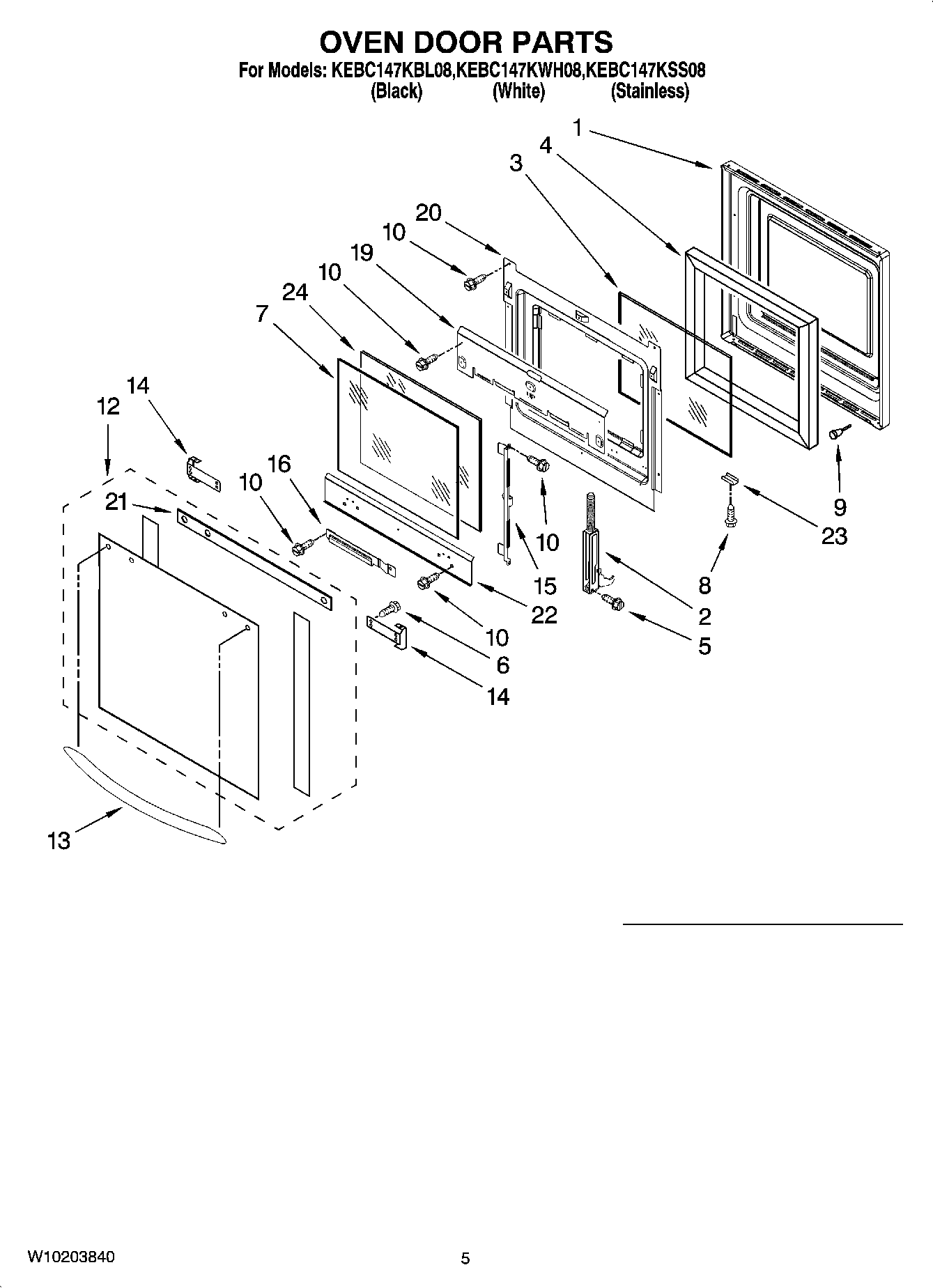

KEBC147KBL08 04 – OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	9760569 Whirlpool Door Hinge
2	WP9760571 Whirlpool Door Hinge
2	9760570 Whirlpool Door Hinge
2	WP9760572 Whirlpool Door Hinge
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
5	WP4449743 Whirlpool Screw
6	WPW10132940 Whirlpool Dishwasher Screw
7	WP9759223 Whirlpool Door Glass
8	WP3400832 Whirlpool Screw
9	4448520 Whirlpool Oven Bumper
10	WP4449809 Whirlpool Screw
12	Door Glass, Assy (S.Steel)
12	Door Glass, Assy (White Model)
12	Door Glass, Assy (Black Model)
13	Door Handle (Stainless)
13	Door Handle (Black)
13	Door Handle (White)
14	Bracket, Handle (L.Hand)
14	4455803 Whirlpool Oven Bracket
15	WP9759229 Whirlpool Mounting Bracket
16	Bracket (3rd Glsss)
19	4457101 Whirlpool Oven Shield
20	4457130 Whirlpool Oven Retainer
21	Seal, Door
22	4457112 Whirlpool Oven Heat Shield
23	Clip, Retainer (Black Model)
23	Retainer, Glass-Clip (Stainless Steel)
23	Clip, Retainer (White Model)
24	WP9759226 Whirlpool Door Glass
