KEBC147KSS08 01 – OVEN PARTS

KEBC147KSS08 01 – OVEN PARTS

Written by

in

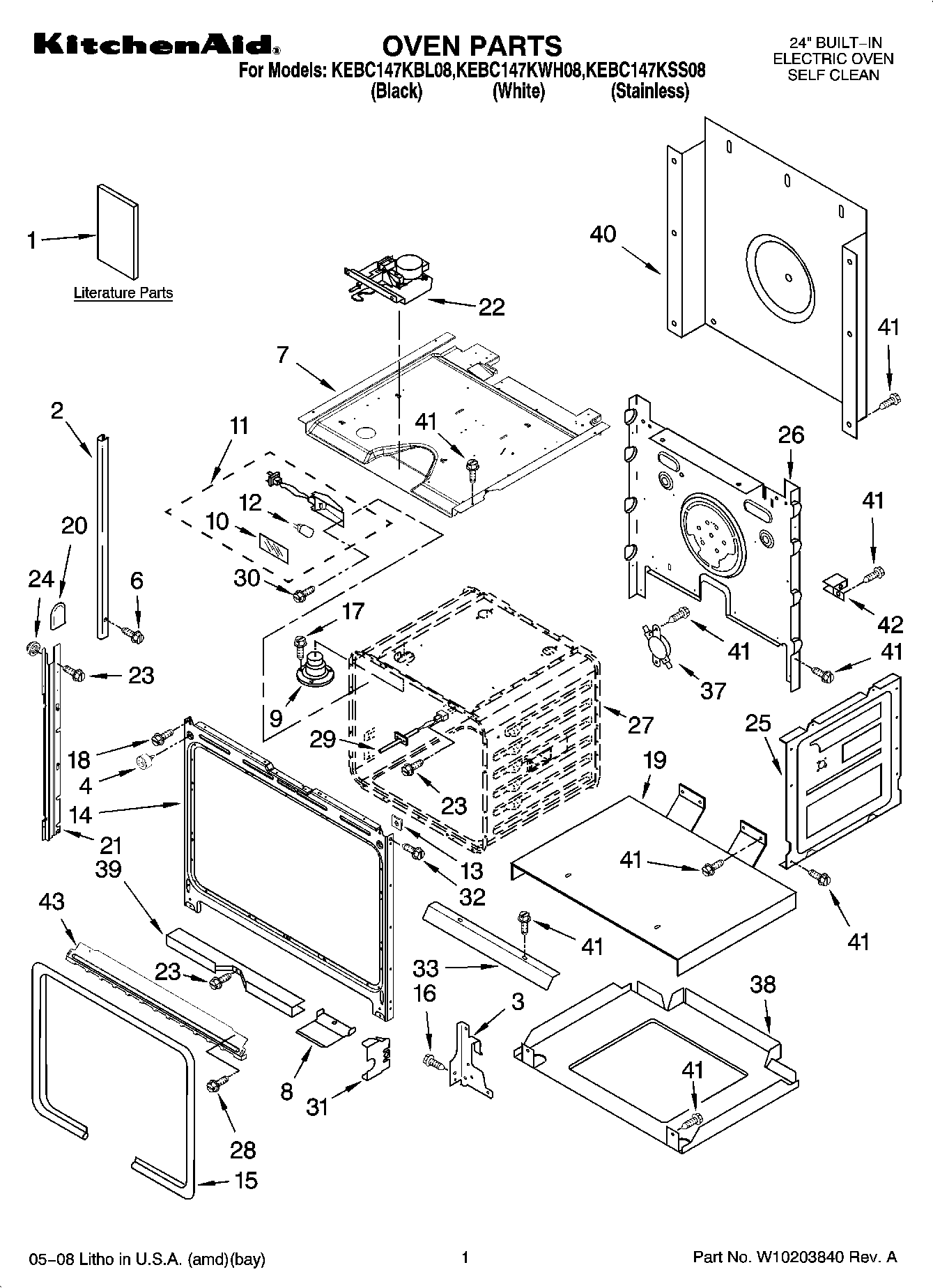

KEBC147KSS08 01 – OVEN PARTS

Products

PositionProduct
WP4450363 Whirlpool Insulation
WP4449314 Whirlpool Insulation
Following Parts Not
WPL ARI81547A8
1Safe Cooking Tips (French)
1Tech Sheet
1Safe Cooking Tips
1Installation, MWO Trim Kit
1Easy Set Guide
1Installation Instructions
1Owners Manual
2Trim, Side (LH White)
2WPW10144983 Whirlpool Trim
2Trim, Side Left (Black)
2Trim, Side (RH White)
24455377 Whirlpool Oven Trim
2W10144984 Whirlpool Trim
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
4W10105790 Whirlpool Bumper
6WP8281236 Whirlpool Screw
74455863 Whirlpool Oven Top Assembly
84455807 Whirlpool Oven Vent Deflector
8W10145009 Whirlpool Vent Deflector
9W10861715 Whirlpool Vent Tube
10W10169756 Whirlpool Light Lens
11WPW10307114 Whirlpool Light
12BULB-LIGHT
13WP4450118 Whirlpool Nut
149760754 Whirlpool Oven Front Frame
15WP4455380 Whirlpool Door Gasket
16WP4449743 Whirlpool Screw
17SCREW
18Screw
194451476 Whirlpool Support
20Cap, Spacer
21814371 Whirlpool Oven Rail Mount
21814372 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
23WP4449154 Whirlpool Screw
24WP4448444 Whirlpool Grommet
25W10782197 Whirlpool Side Panel
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not serviceable)
28WP3400832 Whirlpool Screw
29WPW10131825 Whirlpool Oven Temperature Sensor
304449748 Whirlpool Oven Screw
314452152 Whirlpool Oven Mounting Bracket
32WP4450038 Whirlpool Screw
33Deflector, Vent
37WP9759242 Whirlpool Thermostat
384450525 Whirlpool Oven Bottom Assembly
39WP4448933 Whirlpool Retainer
40WP4451747 Whirlpool Rear Cover
41WP4449809 Whirlpool Screw
42WPL 4449845
43Trim, Bottom (S.Steel Model
43Trim, Bottom (White Model)
43Trim, Bottom (Black Model)
