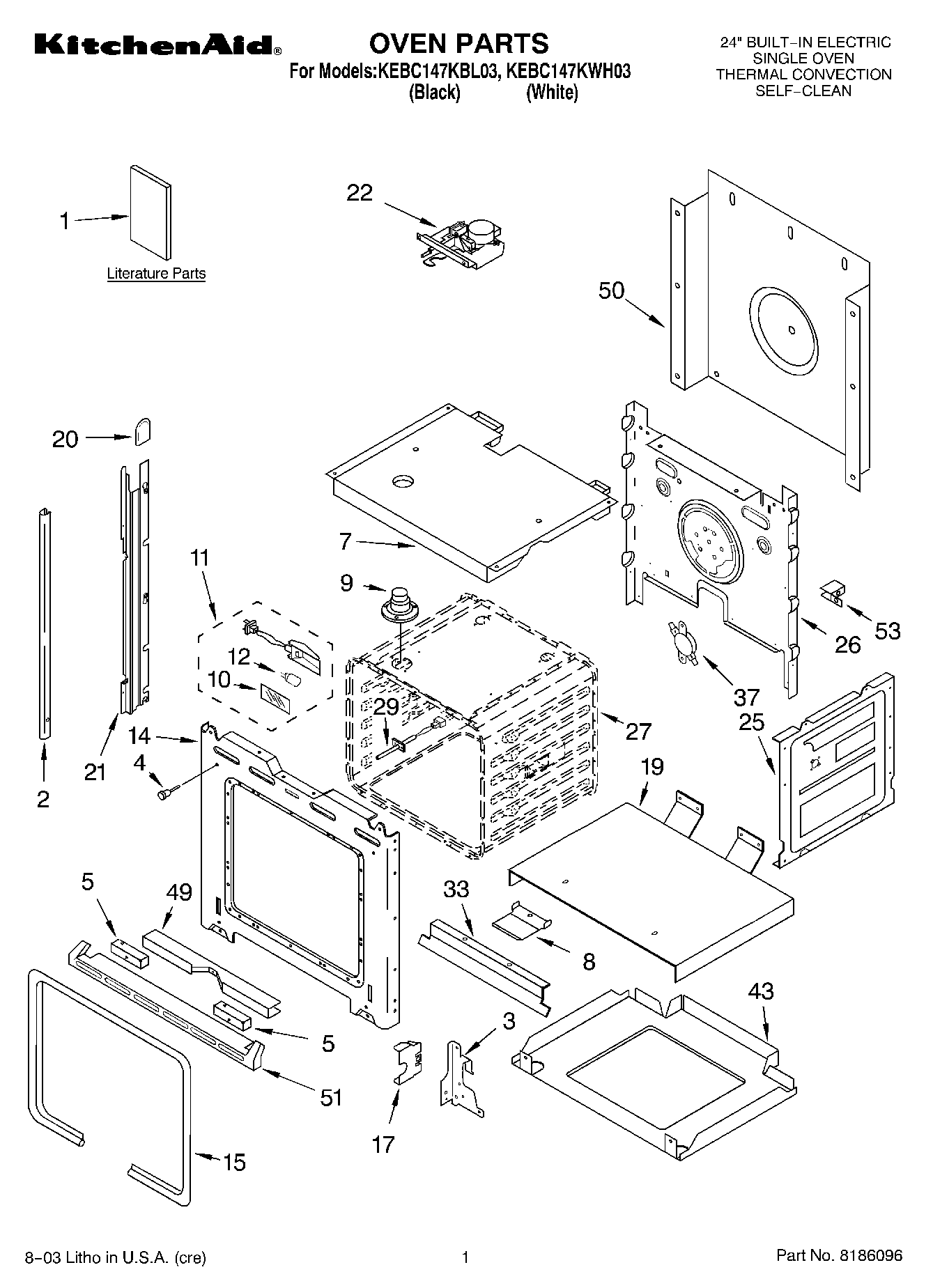

KEBC147KWH03 01 – OVEN PARTS

KEBC147KWH03 01 – OVEN PARTS

Written by

in

KEBC147KWH03 01 – OVEN PARTS

Products

PositionProduct
WPL ARI81553A6
1Safer Cooking Tips
1Literature Parts (Use & Care Guide (Oven))
1Literature Parts (Installation Undercounter)
1Literature Parts (Easy Set Guide)
1Literature Parts (Installation, MWO Trim Kit)
1Literature Parts (Tech Sheet)
1Literature Parts (Installation Instructions)
2WP8281236 Whirlpool Screw
24455377 Whirlpool Oven Trim
2Trim, Side Left (Black)
2Trim, Side (RH White)
2Trim, Side (LH White)
3WP4455605 Whirlpool Left Hand Hinge
3WP4455606 Whirlpool Right Hand Hinge
44448520 Whirlpool Oven Bumper
5Spacer, Foam
74455863 Whirlpool Oven Top Assembly
8W10145009 Whirlpool Vent Deflector
84455807 Whirlpool Oven Vent Deflector
9W10861715 Whirlpool Vent Tube
9SCREW
10Lens, Light
11WP4448972 Whirlpool Oven Light
114449748 Whirlpool Oven Screw
12WP4452164 Whirlpool 12V 5W Halogen Light Bulb
14Screw
149760754 Whirlpool Oven Front Frame
14WP4450118 Whirlpool Nut
15WP4455380 Whirlpool Door Gasket
174452152 Whirlpool Oven Mounting Bracket
194451476 Whirlpool Support
20Cap, Spacer
21814371 Whirlpool Oven Rail Mount
21WP4448444 Whirlpool Grommet
21814372 Whirlpool Oven Rail Mount
22WP9760889 Whirlpool Door Latch
25W10782197 Whirlpool Side Panel
264452232 Whirlpool Oven Rear Cover
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
33Deflector, Vent
37WP9759242 Whirlpool Thermostat
434450525 Whirlpool Oven Bottom Assembly
49WP4448933 Whirlpool Retainer
49WP4449154 Whirlpool Screw
50WP4451747 Whirlpool Rear Cover
51Trim, Bottom (Black Model)
51Trim, Bottom (White Model)
51WP3400832 Whirlpool Screw
53WPL 4449845
53WP4449809 Whirlpool Screw
53WP4449314 Whirlpool Insulation
53WP4450363 Whirlpool Insulation
53WPL ARI81555A3
