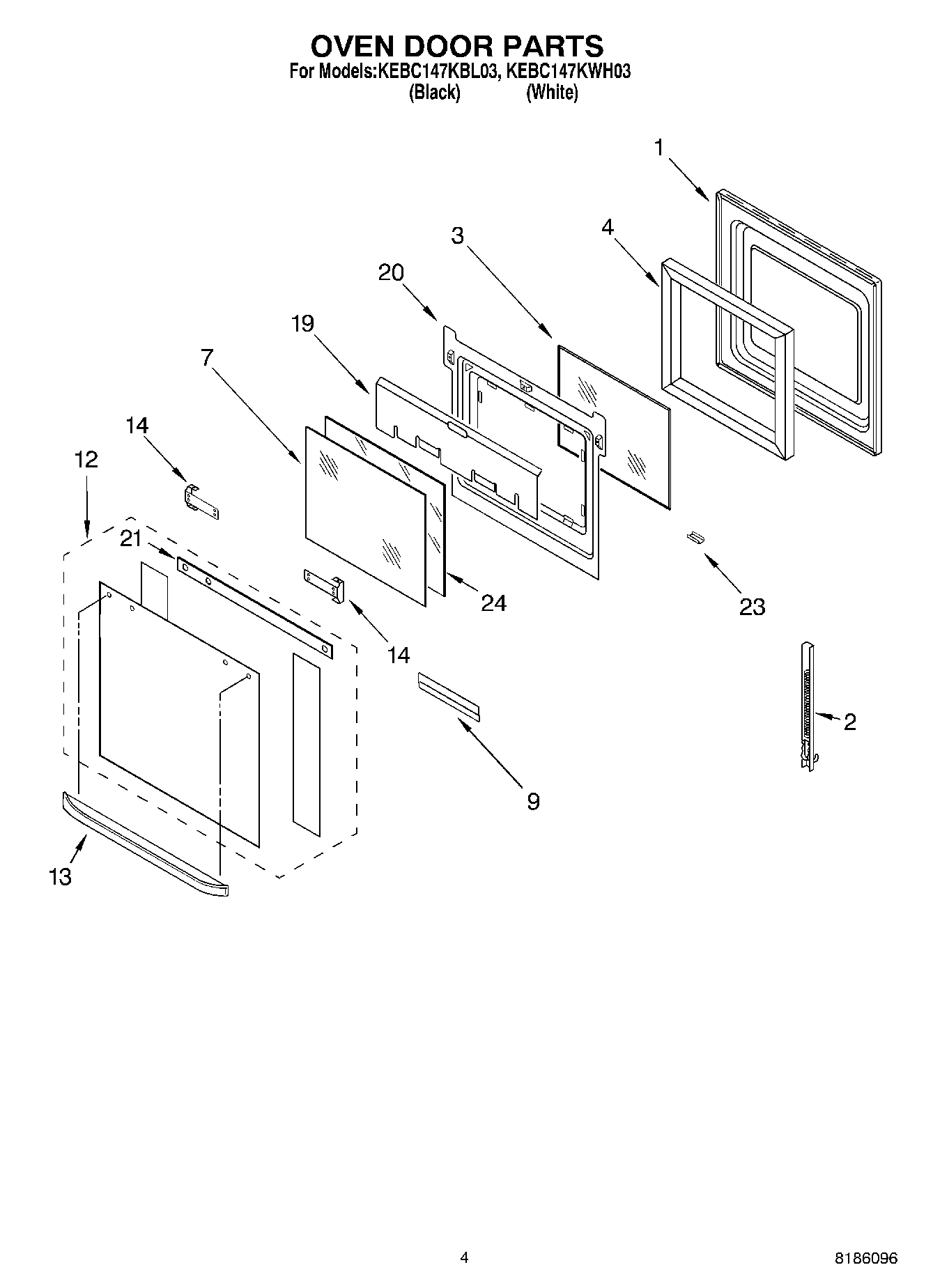

KEBC147KWH03 03 – OVEN DOOR PARTS

Products

Position	Product
1	WP8303698 Whirlpool Door Liner
2	9760570 Whirlpool Door Hinge
2	WP4449743 Whirlpool Screw
2	9760569 Whirlpool Door Hinge
3	WP4449247 Whirlpool Inner Door Glass
4	W11688413 Whirlpool Insulation
7	Glass, Inner
9	Retainer, Glass
12	Door Glass, Assy (Black Model)
12	Door Glass, Assy (White Model)
13	Door Handle (White)
13	Door Handle (Black)
14	4455803 Whirlpool Oven Bracket
14	Bracket, Handle (L.Hand)
14	Bracket, Handle (Screw SS)
19	Shield, Heat
20	4457130 Whirlpool Oven Retainer
20	WP4449809 Whirlpool Screw
21	Seal, Door
23	Clip, Retainer (Black Model)
23	WP3400832 Whirlpool Screw
23	Clip, Retainer (White Model)
24	Glass, Inner
