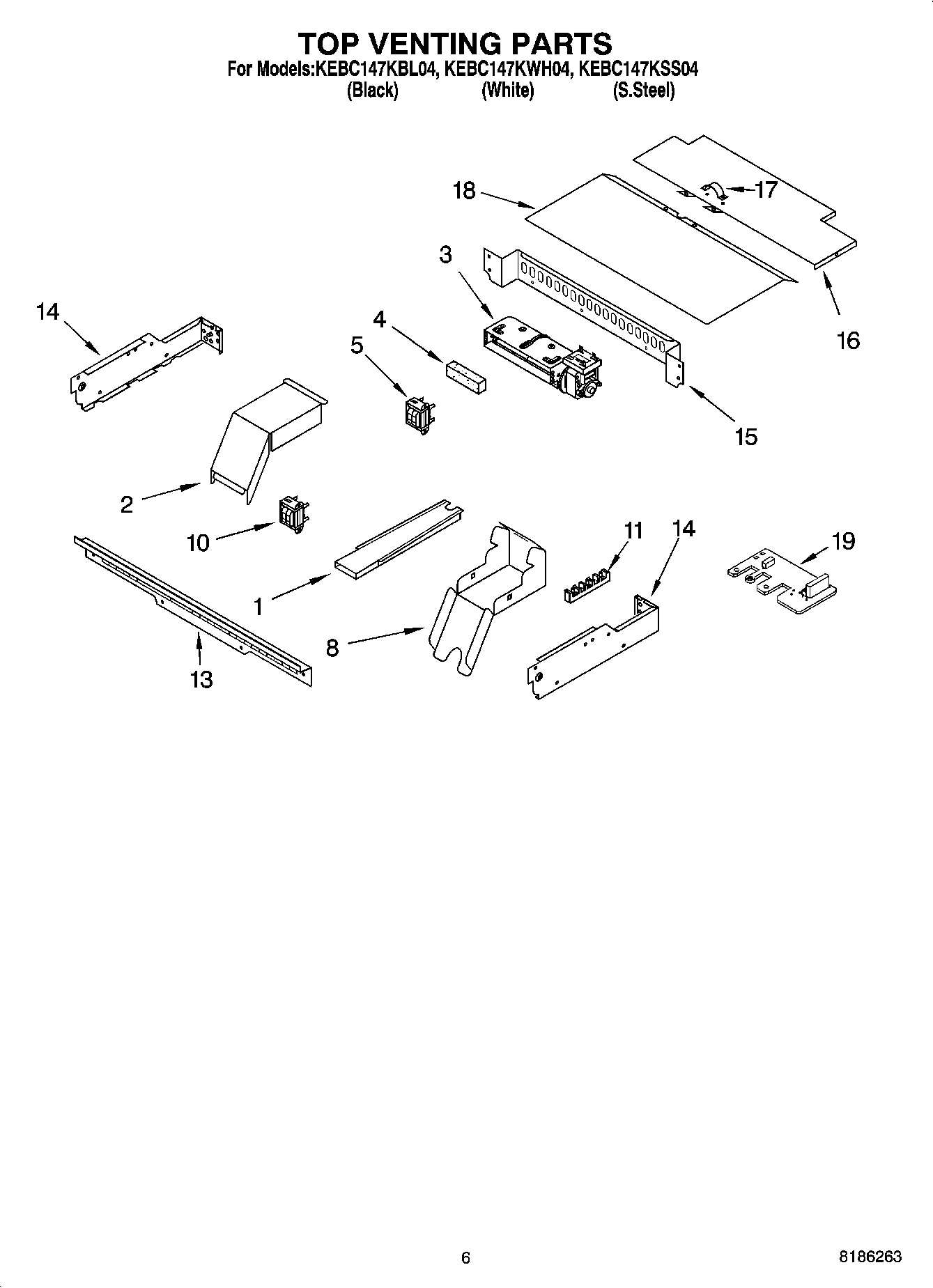

KEBC147KWH04 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI81566A4
	18 Ga. 80~c Rating (Red)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	Wire (14 Ga. 200 c Brown)
	1
	WPL ARI81565A8
	WPL ARI81564A7
	WPL 8301847
	WPL ARI81567A5
	261900 Whirlpool Microwave Spray
	WP4450952 Whirlpool Conduit
	4451761 Whirlpool Oven Support Bracket
	WPL 591014
	242831 Whirlpool Oven Wire
	Spacer, Harness
	285006 Whirlpool Spray
	WPW10339879 Whirlpool Wire Tie
	4450800 Whirlpool Oven Screw
	WP4449809 Whirlpool Screw
	4448664 Whirlpool Oven Mounting Bracket
	WP112432 Whirlpool Nut Assembly
	Wire, 25` Roll (Black 14 Ga.)
	Wire, 25“ Roll (White 14 GA.)
	72032 Whirlpool Touch Up Paint Black
	Wire, 25` Roll (Red 14 Ga.)
	WP482338 Whirlpool Refrigerator Adhesive
	350930 Whirlpool White Spray Paint
	814381 Whirlpool Pin
	WP4448950 Whirlpool Screw
	72017 Whirlpool Appliance Touch-Up Paint White
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	Blower
3	WP4455352 Whirlpool Mounting Bracket
4	W10491987 Whirlpool Foam Seal
5	WP9760588 Whirlpool Transformer
8	4455177 Whirlpool Oven Bottom Elbow
10	Transformer, Control
11	Screw
11	WP8203546 Whirlpool Terminal Block
13	4448547 Whirlpool Oven Vent Control
13	WP4450038 Whirlpool Screw
14	WP4449154 Whirlpool Screw
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	4450549 Whirlpool Oven Top Cover
18	Cover, Top Front
19	WP4451985 Whirlpool Noise Filter Board
