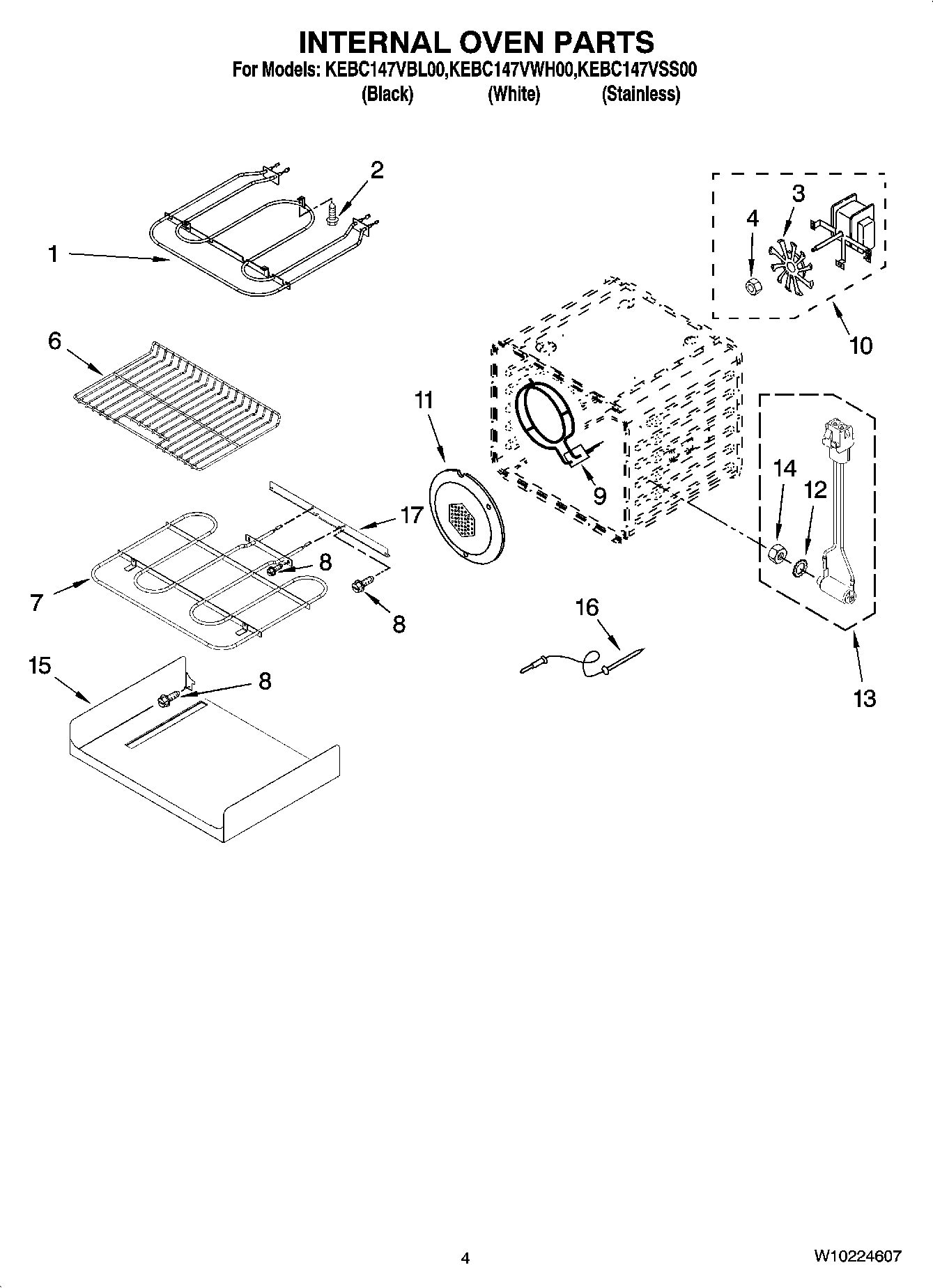

KEBC147VBL00 03 – INTERNAL OVEN PARTS

Products

Position	Product
1	WPW10207400 Whirlpool Broil Element
2	WP4449154 Whirlpool Screw
3	W10758272 Whirlpool Convection Fan
4	WPW10116349 Whirlpool Nut
6	4448716 Whirlpool Oven Rack 24"
7	ELMNT-BAKE
8	WP4449809 Whirlpool Screw
9	WP9760769 Whirlpool Element Assembly
10	W10794022 Whirlpool Oven Cooktop Fan Motor
11	WPW10160821 Whirlpool Fan Cover
12	WP9755547 Whirlpool Lockwasher
13	8186589 Whirlpool Jack Probe
14	WP9755546 Whirlpool Locknut
15	4455035 Whirlpool Bake Tray
16	WP9755542 Whirlpool Oven Meat Probe
17	4450039 Whirlpool Oven Access Cover
