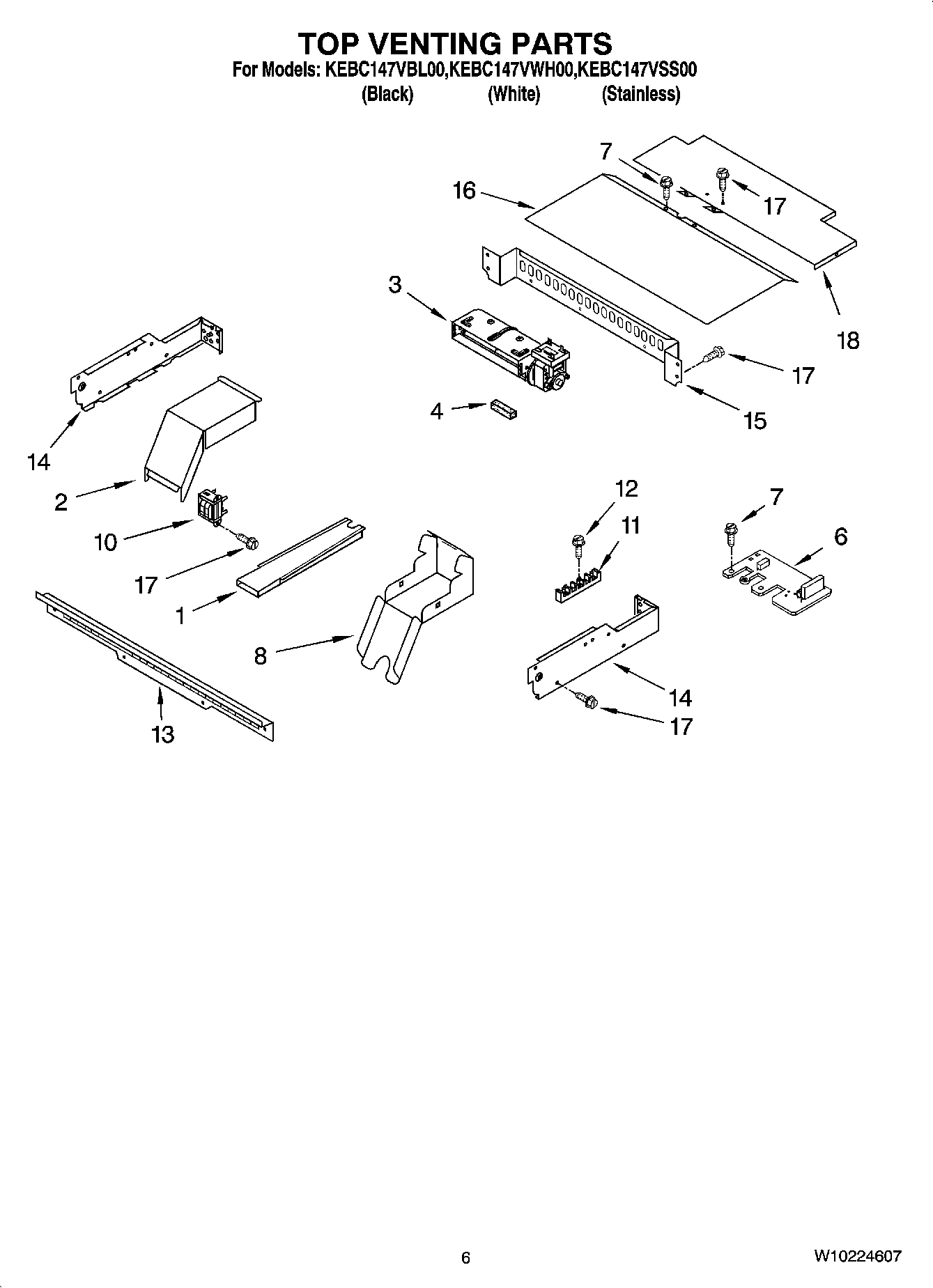

KEBC147VBL00 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	350930 Whirlpool White Spray Paint
	4452400 Whirlpool Microwave Wire Harness
	WP261869 Whirlpool Microwave Paint
	Miscellaneous
	WPL 591014
	4451761 Whirlpool Oven Support Bracket
	WP4450952 Whirlpool Conduit
	261900 Whirlpool Microwave Spray
	Harness, Main
	Optional Parts Not Included
	ADHESIVE
	WIRING HARNESS PARTS
	WP4448950 Whirlpool Screw
	72032 Whirlpool Touch Up Paint Black
	Nut
	WP4449809 Whirlpool Screw
	4448664 Whirlpool Oven Mounting Bracket
	4450800 Whirlpool Oven Screw
	WP482338 Whirlpool Refrigerator Adhesive
	8528351 Whirlpool Clip
	814381 Whirlpool Pin
	72017 Whirlpool Appliance Touch-Up Paint White
	285006 Whirlpool Spray
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WPW10176670 Whirlpool Blower
4	W10491987 Whirlpool Foam Seal
6	WP4451985 Whirlpool Noise Filter Board
8	4455177 Whirlpool Oven Bottom Elbow
10	Transformer
11	WP8203546 Whirlpool Terminal Block
12	Screw
13	4448547 Whirlpool Oven Vent Control
14	W10755214 Whirlpool Side Complete
14	W10790240 Whirlpool Side Assembly Complete
15	Back, Control
16	4450549 Whirlpool Oven Top Cover
18	Cover, Top Front
